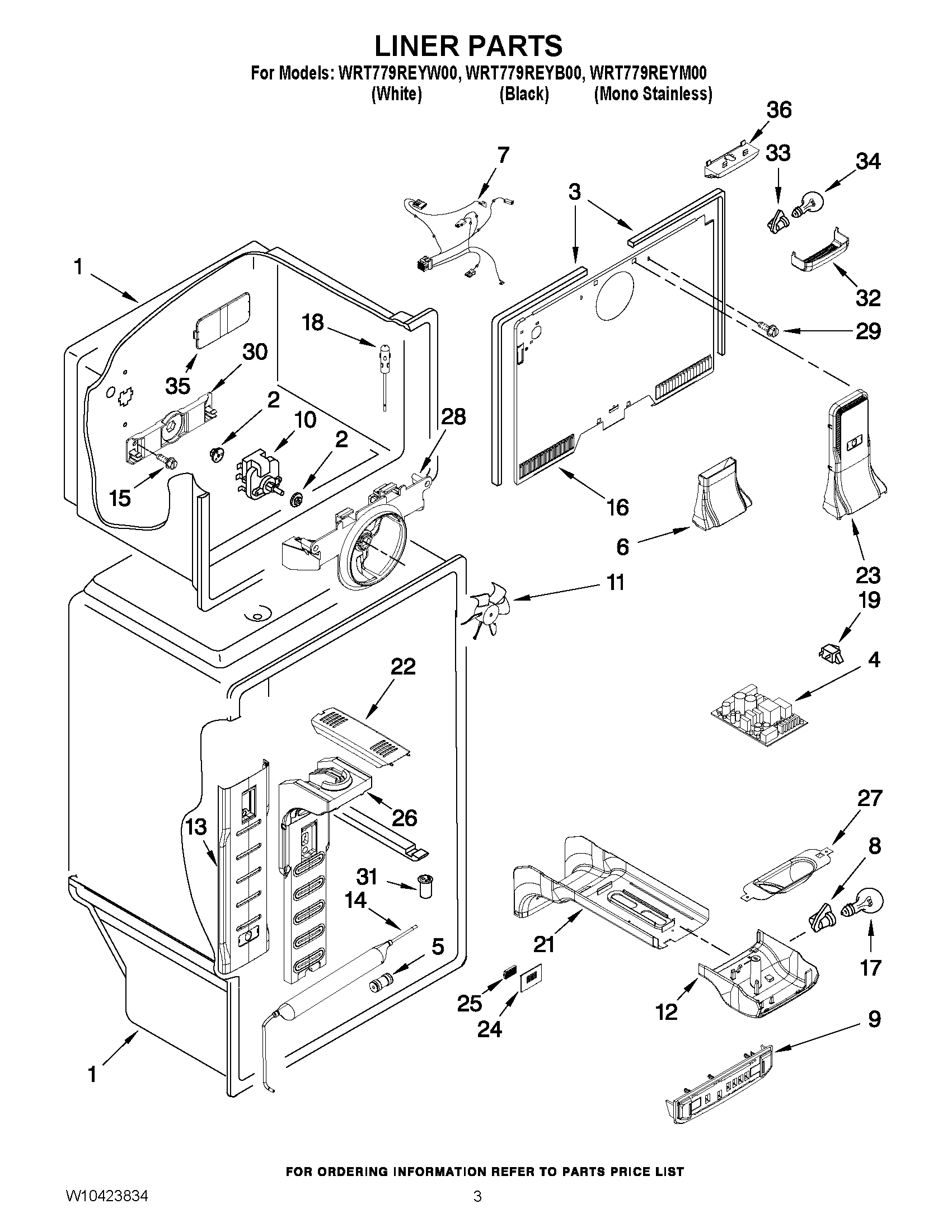

WRT779REYB00 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	W11034365 Whirlpool Refrigerator Electronic Control Board
4	W11034365-includeCORE Whirlpool W11034365 Refrigerator Electronic Control Board + Core
5	WPW10271543 Whirlpool Refrigerator Connector
6	ASSEMBLY, TOWER CONNECTION
7	WPW10283809 Whirlpool Refrigerator Wire Harness
8	WPW10191429 Whirlpool Refrigerator Socket
9	FASCIA CONTROL
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316942 Whirlpool Refrigerator Control Box
13	WPW10356895 Whirlpool Refrigerator Cover
14	WATER RESERVOIR
15	WP488163 Whirlpool Refrigerator Screw
16	COVER, EVAPORATOR
17	WPA3073101 Whirlpool Light Bulb
18	THERMISTOR-REFRIGERATOR
19	W11384469 Whirlpool Door Switch
21	WPW10305175 Whirlpool Refrigerator Cover
22	LIGHT COVER, RC
23	TOWER, AIR
24	WPW10330850 Whirlpool Refrigerator Grille
25	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26	WPW10395376 Whirlpool Refrigerator Air Tower
27	WPW10314195 Whirlpool Refrigerator Shield
28	W10850162 Whirlpool Refrigerator Orifice
29	WP489478 Whirlpool Refrigerator Screw
30	2254454 Whirlpool Refrigerator Bracket
31	WP2210509 Whirlpool Refrigerator Tub Valve
32	WPW10313918 Whirlpool Refrigerator Light Lens
33	W11661565 Whirlpool Refrigerator Socket
34	W11518235 Whirlpool LED Light
35	SCREW CUP
36	WPW10313917 Whirlpool Refrigerator Housing
