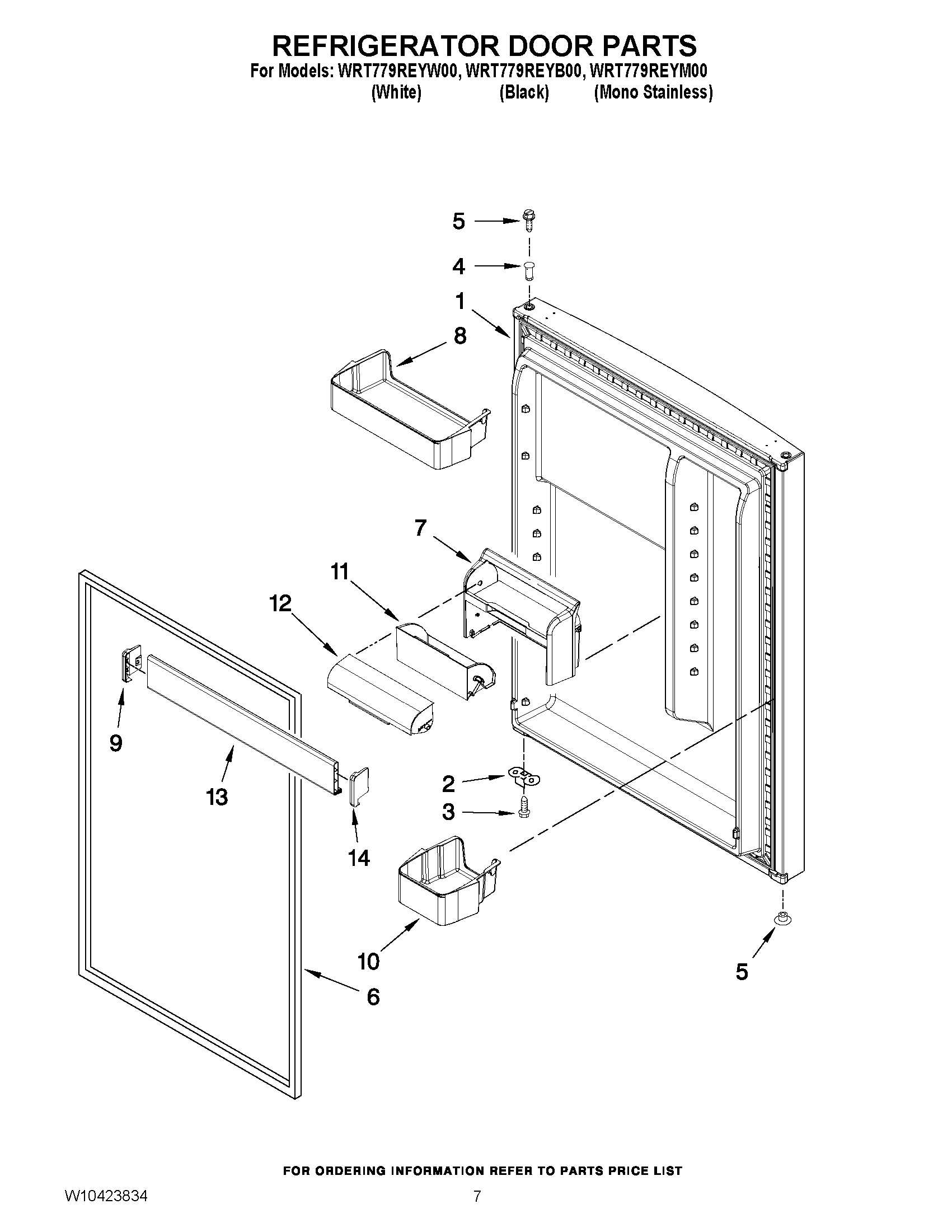

WRT779REYB00 05 – REFRIGERATOR DOOR PARTS

WRT779REYB00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRT779REYB00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.6) (MONO STAINLESS)
1REFRIGERATOR DOOR (INCLUDES No.6) (BLACK)
1REFRIGERATOR DOOR (INCLUDES No.6) (WHITE)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
62159057 Whirlpool Refrigerator Fresh Food Door Gasket
62177305 Whirlpool Refrigerator Door FIP Gasket
6W11624977 Whirlpool Refrigerator FIP Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9WPW10338485 Whirlpool Refrigerator End Cap
10WPW10308867 Whirlpool Refrigerator Cantilever Bin
11BIN, TILT OUT
12WPW10308843 Whirlpool Refrigerator Door Compressor
13TRIM, DOOR SHELF
14CAP, TRIM END (RIGHT HAND)
