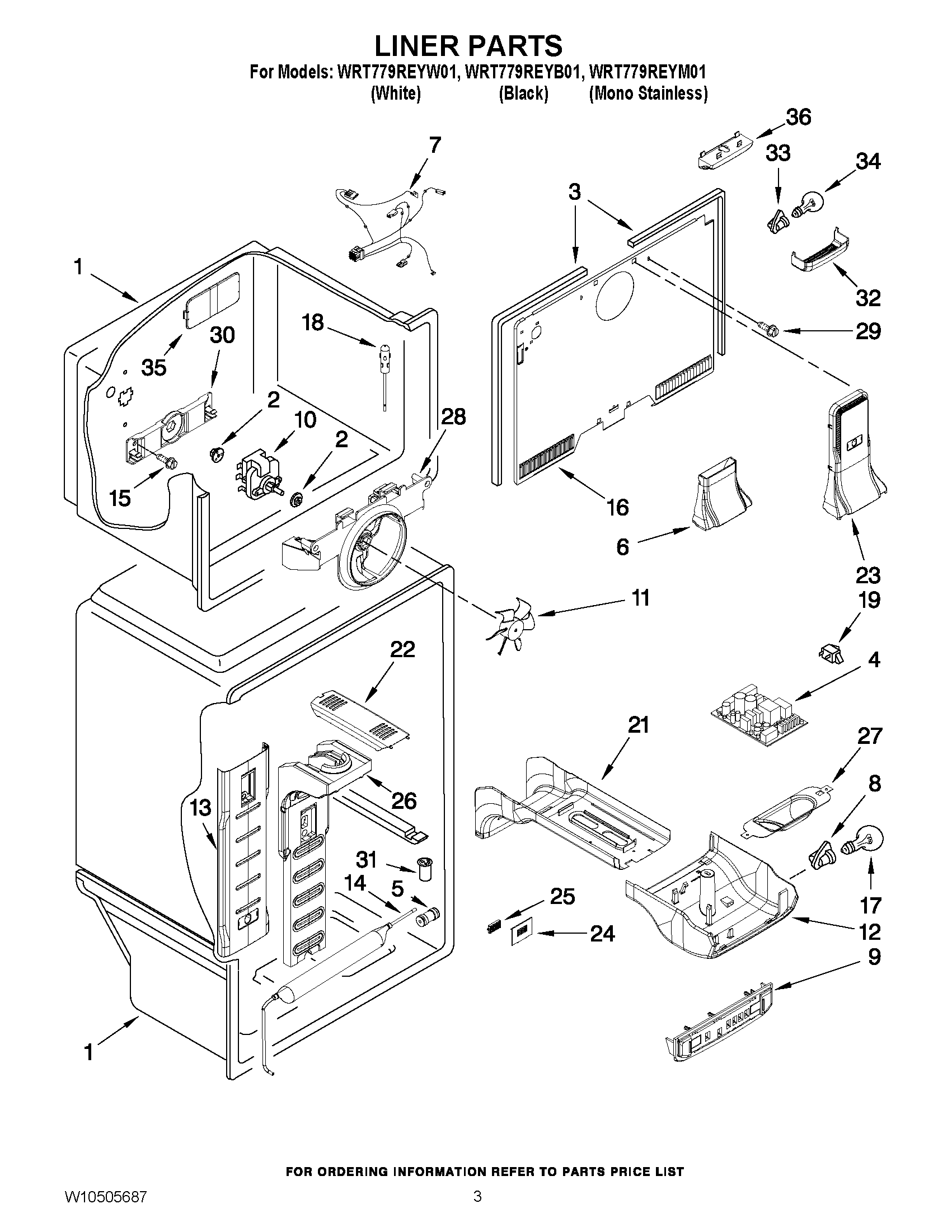

WRT779REYM01 02 – LINER PARTS

WRT779REYM01 02 – LINER PARTS

Written by

in

WRT779REYM01 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4W11034365 Whirlpool Refrigerator Electronic Control Board
4W11034365-includeCORE Whirlpool W11034365 Refrigerator Electronic Control Board + Core
5WPW10271543 Whirlpool Refrigerator Connector
6ASSEMBLY, TOWER CONNECTION
7WPW10283809 Whirlpool Refrigerator Wire Harness
8WPW10191429 Whirlpool Refrigerator Socket
9FASCIA CONTROL
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10316942 Whirlpool Refrigerator Control Box
13WPW10356895 Whirlpool Refrigerator Cover
14WATER RESERVOIR
15WP488163 Whirlpool Refrigerator Screw
16COVER, EVAPORATOR
17WPA3073101 Whirlpool Light Bulb
18THERMISTOR-REFRIGERATOR
19W11384469 Whirlpool Door Switch
21WPW10305175 Whirlpool Refrigerator Cover
22LIGHT COVER, RC
23TOWER, AIR
24WPW10330850 Whirlpool Refrigerator Grille
25W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26WPW10395376 Whirlpool Refrigerator Air Tower
27WPW10314195 Whirlpool Refrigerator Shield
28W10850162 Whirlpool Refrigerator Orifice
29WP489478 Whirlpool Refrigerator Screw
302254454 Whirlpool Refrigerator Bracket
31WP2210509 Whirlpool Refrigerator Tub Valve
32WPW10313918 Whirlpool Refrigerator Light Lens
33W11661565 Whirlpool Refrigerator Socket
34W11518235 Whirlpool LED Light
35SCREW CUP
36WPW10313917 Whirlpool Refrigerator Housing
