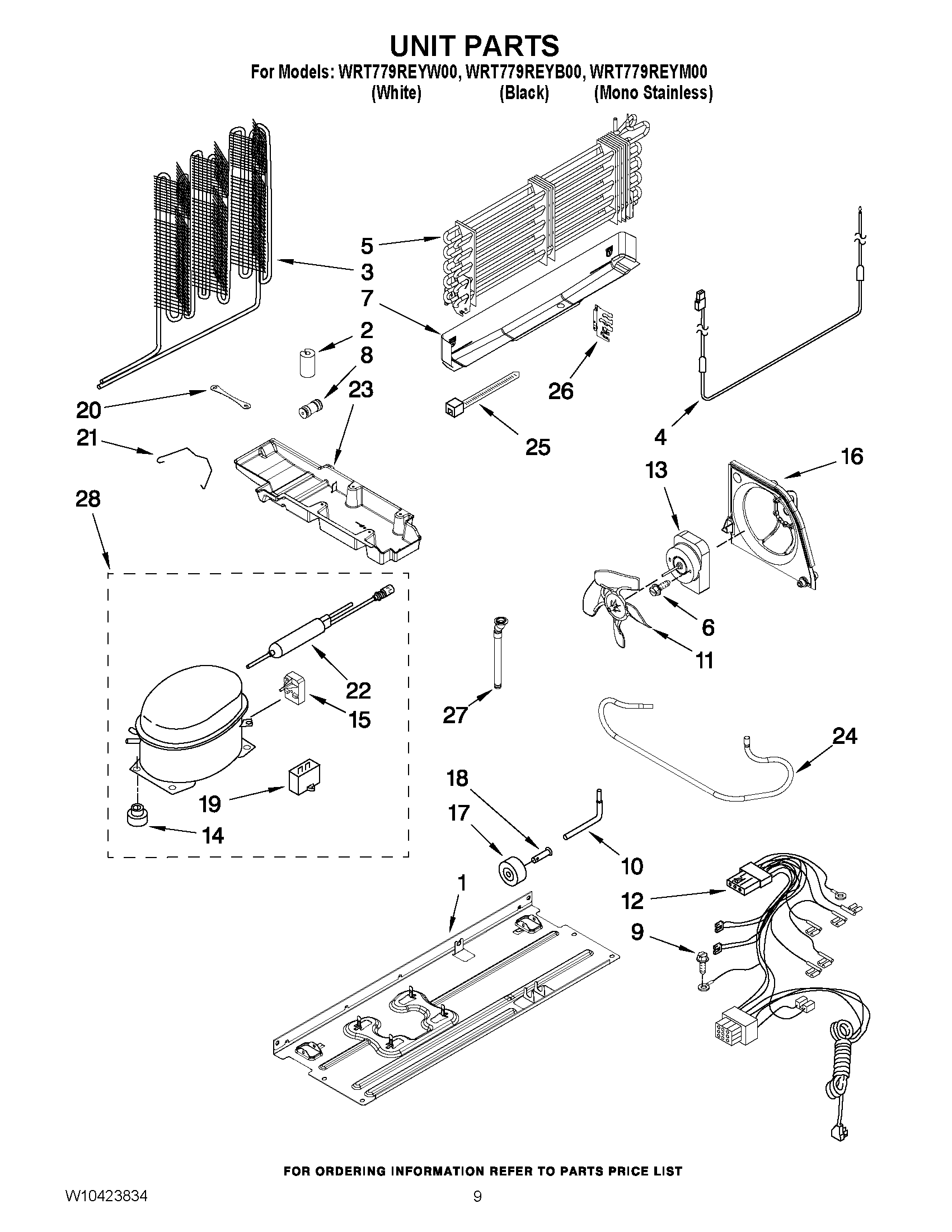

WRT779REYW00 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10852725 Whirlpool Refrigerator Grommet
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	WPW10271543 Whirlpool Refrigerator Connector
9	WP489128 Whirlpool Refrigerator Screw
10	W11676464 Whirlpool Tube
11	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
12	W10313213 Whirlpool Refrigerator Wire Harness
13	WP2188874 Whirlpool Refrigerator Condenser Motor
14	WPW10169124 Whirlpool Refrigerator Grommet
14	876811 Whirlpool Grommet
15	WPW10194431 Whirlpool Start Device
16	WP2315541 Whirlpool Refrigerator Air Baffle
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	W10236396 Whirlpool Refrigerator Strap
21	W11661170 Whirlpool Clip
22	WPW10143759 Whirlpool Dryer Filter
23	W10890667 Whirlpool Refrigerator Drip Pan
24	TUBE, SUCTION
25	WPW10339879 Whirlpool Wire Tie
26	W10314197 Whirlpool Refrigerator Bracket
27	W11190084 Whirlpool Refrigerator Drain Tube
28	W10233960 Whirlpool Refrigerator Compressor
