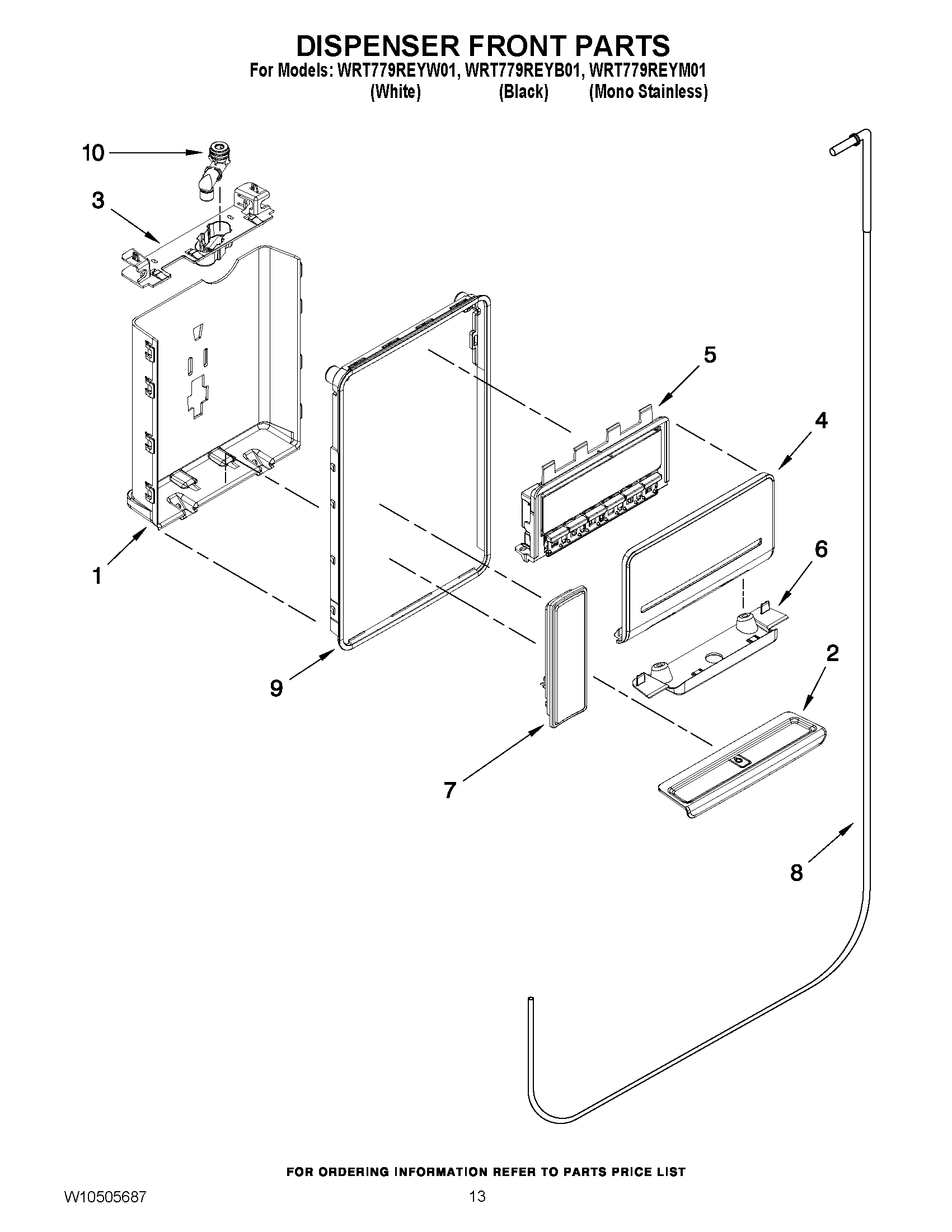

WRT779REYW01 08 – DISPENSER FRONT PARTS

WRT779REYW01 08 – DISPENSER FRONT PARTS

Written by

in

WRT779REYW01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10300448 Whirlpool Refrigerator Drip Tray
2WPW10356018 Whirlpool Refrigerator Drip Tray
2TRAY-DRIP
3W11616802 Whirlpool Separator Assembly
4FASCIA, SPARSH (SILVER)
4FASCIA, SPARSH (BLACK)
5W10836784 Whirlpool Refrigerator Electronic Control Board
6W10356029 Whirlpool Refrigerator Separator
6COVER, SEPARATOR (WHITE)
7W10433546 Whirlpool Refrigerator Pad
7W10433547 Whirlpool Refrigerator Pad
7W11715936 Whirlpool Pad
8WPW10238094 Whirlpool Refrigerator Water Tube
9W10356017 Whirlpool Refrigerator Dispenser Trim
10WP2305235 Whirlpool Refrigerator Spigot
