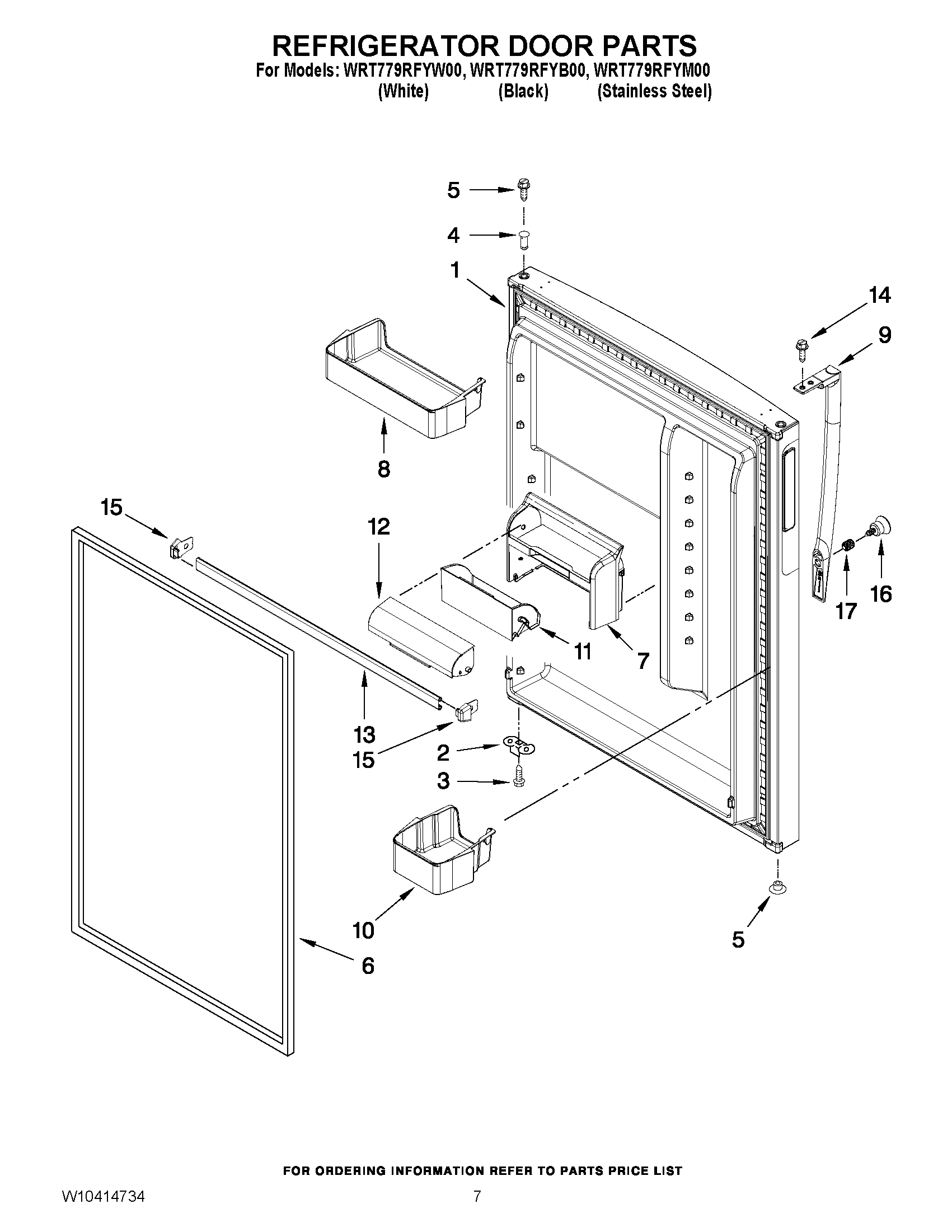

WRT779RFYB00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10298864 Whirlpool Refrigerator DOR-FIP WH
1	LW10353882 Whirlpool Foam In Place Door Blower
1	LW10353893 Whirlpool Stainless Steel FIP Door
2	W11745278 Whirlpool Bracket
3	WP681249 Whirlpool Screw Assembly
4	W11189115 Whirlpool Refrigerator Thimble
5	PLUG, HINGE SLEEVE (GREY)
5	WP2212651 Whirlpool Refrigerator Button Plug
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6	W11624977 Whirlpool Refrigerator FIP Gasket
6	2177305 Whirlpool Refrigerator Door FIP Gasket
6	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
7	HOUSING, COMPARTMENT
8	WPW10308868 Whirlpool Refrigerator Door Bin
9	WPW10498429 Whirlpool Refrigerator Handle
9	WPW10646617 Whirlpool Refrigerator Handle
9	WPW10498430 Whirlpool Refrigerator Handle
10	WPW10308867 Whirlpool Refrigerator Cantilever Bin
11	BIN, TILT OUT
12	WPW10308843 Whirlpool Refrigerator Door Compressor
13	TRIM, DOOR SHELF
14	8534058 Whirlpool Refrigerator Screw
15	CAP, TRIM END (RIGHT HAND)
15	WPW10338485 Whirlpool Refrigerator End Cap
16	WPW10170540 Whirlpool Screw
17	SCREW, SET
