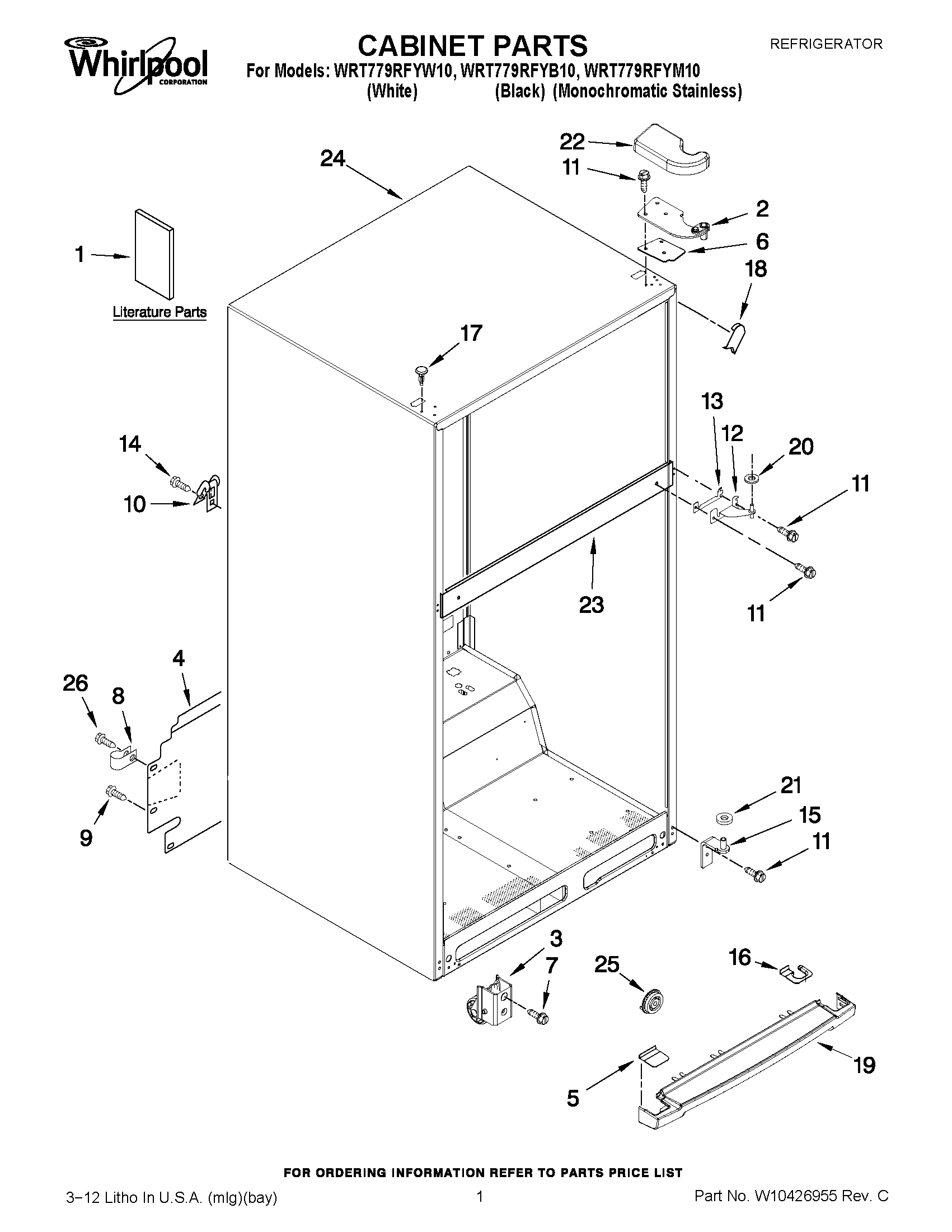

WRT779RFYM10 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	ENERGY LABEL
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
4	W10636716 Whirlpool Refrigerator Cover Unit
5	WPW10353932 Whirlpool Refrigerator Grille Endcap
5	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
5	W10353930 Whirlpool Refrigerator Grill End Cap
6	W10883637 Whirlpool Refrigerator Hinge Shim
7	W10850698 Whirlpool Refrigerator Screw
8	WP488366 Whirlpool Refrigerator Clamp
9	WP489464 Whirlpool Refrigerator Screw
10	549193 Whirlpool Refrigerator Power Clamp
11	WP489497 Whirlpool Screw
12	WP2254618 Whirlpool Center Door Hinge
13	WP2183852 Whirlpool Refrigerator Shim
14	WP489442 Whirlpool Refrigerator Screw
15	WP2254473 Whirlpool Refrigerator Door Hinge
16	W10381059 Whirlpool Refrigerator End Cap – GRL
16	WPL W10381064
16	WPL W10381060
17	WP2183998 Whirlpool Refrigerator Button Plug
17	WP2151652 Whirlpool Refrigerator Button Plug
17	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
18	W10851579 Whirlpool Refrigerator Filler
18	WPW10283959 Whirlpool Refrigerator Filler
18	W11252732 Whirlpool Refrigerator Filler
19	WPW10300127 Whirlpool Refrigerator Grille
19	WPW10353935 Whirlpool Refrigerator Grille
19	WPW10353933 Whirlpool Refrigerator Grille
20	WP489467 Whirlpool Hinge Shim
21	WP487576 Whirlpool Washer
22	W10353948A Whirlpool Refrigerator Cover
22	W10353945A Whirlpool Refrigerator Cover
22	W10353947A Whirlpool Refrigerator Cover
22	W10353950A Whirlpool Refrigerator Cover
22	COVER, HINGE (WHITE LS)
22	W10331560A Whirlpool Refrigerator Cover
24	CABINET (NOT A SERVICEABLE PART)
25	W10331226 Whirlpool Refrigerator Clip
26	WP488729 Whirlpool Refrigerator Door Screw
