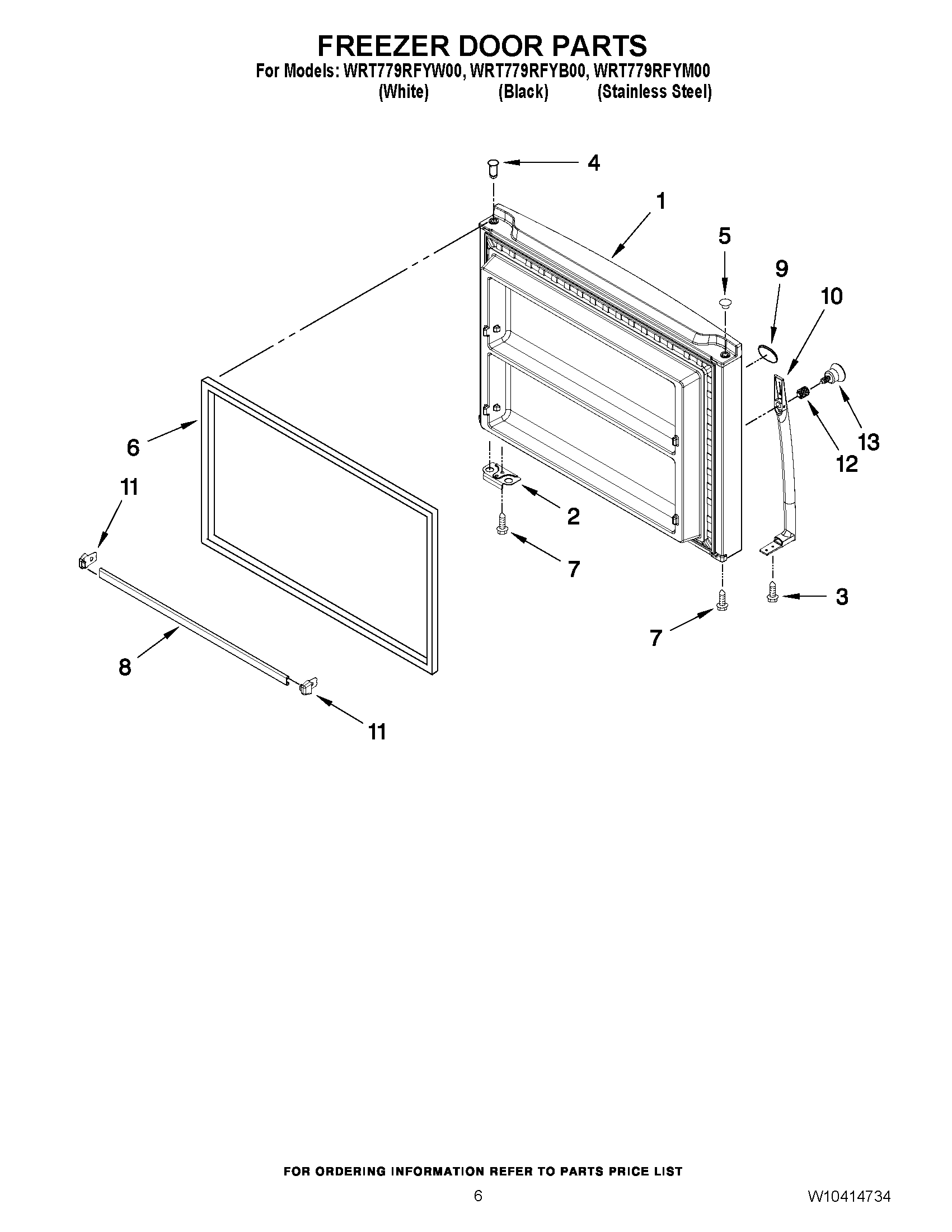

WRT779RFYW00 04 – FREEZER DOOR PARTS

WRT779RFYW00 04 – FREEZER DOOR PARTS

Written by

in

WRT779RFYW00 04 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10353301 Whirlpool Refrigerator Black Foam In Place Door
1LW10299907 Whirlpool Door FIP
1LW10353320 Whirlpool Refrigerator Door Frame Stainless Steel
2W11745278 Whirlpool Bracket
38534058 Whirlpool Refrigerator Screw
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5WP2212651 Whirlpool Refrigerator Button Plug
6W11624958 Whirlpool Refrigerator FIP Gasket
62177304 Whirlpool Refrigerator FIP Gasket
62159327 Whirlpool Refrigerator Door Gasket
7WP681249 Whirlpool Screw Assembly
8W10469910 Whirlpool Refrigerator Door Trim
9W11178521 Whirlpool Dishwasher Nameplate
9WPW10393264 Whirlpool Refrigerator Nameplate
10WPW10498429 Whirlpool Refrigerator Handle
10WPW10498430 Whirlpool Refrigerator Handle
10WPW10646617 Whirlpool Refrigerator Handle
11CAP, TRIM END (RIGHT HAND)
11WPW10338485 Whirlpool Refrigerator End Cap
12SCREW, SET
13WPW10170540 Whirlpool Screw
