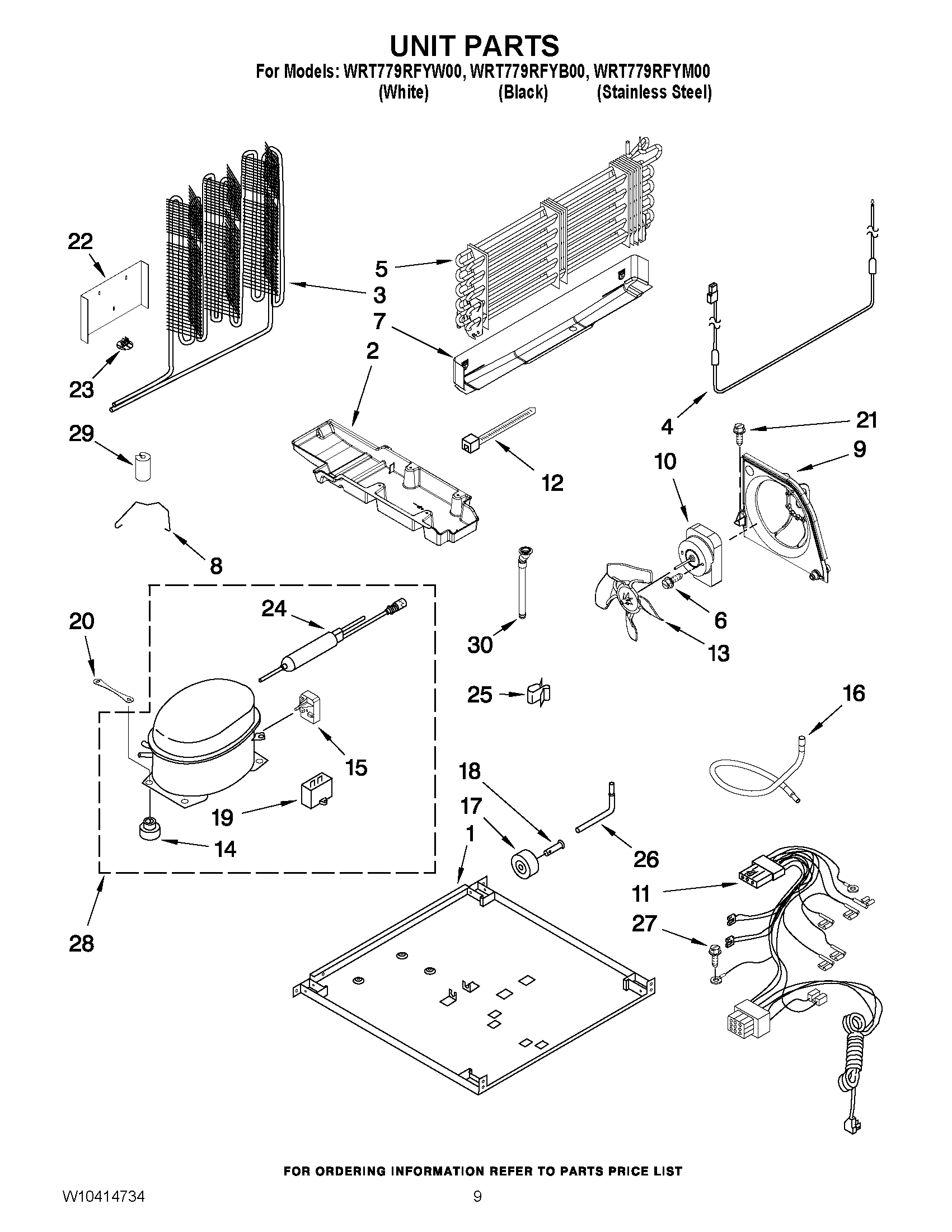

WRT779RFYW00 06 – UNIT PARTS

WRT779RFYW00 06 – UNIT PARTS

Written by

in

WRT779RFYW00 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10890667 Whirlpool Refrigerator Drip Pan
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
7	WPW10314195 Whirlpool Refrigerator Shield
8	W10174383 Whirlpool Clip
9	WP2315541 Whirlpool Refrigerator Air Baffle
10	WP2188874 Whirlpool Refrigerator Condenser Motor
11	WIRE ASSY. UNIT
12	WPW10339879 Whirlpool Wire Tie
13	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
14	WPW10169124 Whirlpool Refrigerator Grommet
14	876811 Whirlpool Grommet
15	W10892065 Whirlpool Refrigerator Compressor Start Relay Device
15	WPW10194431 Whirlpool Start Device
16	TUBE, SUCTION
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	W10236396 Whirlpool Refrigerator Strap
21	W11501418 Whirlpool Refrigerator Screw
22	W10349514 Whirlpool Refrigerator Air Baffle
23	W10296661 Whirlpool Refrigerator Clip
24	WPW10143759 Whirlpool Dryer Filter
25	W10812039 Whirlpool Clip
26	W11676464 Whirlpool Tube
27	WP489128 Whirlpool Refrigerator Screw
28	W10233960 Whirlpool Refrigerator Compressor
29	W10852725 Whirlpool Refrigerator Grommet
30	W11190084 Whirlpool Refrigerator Drain Tube
