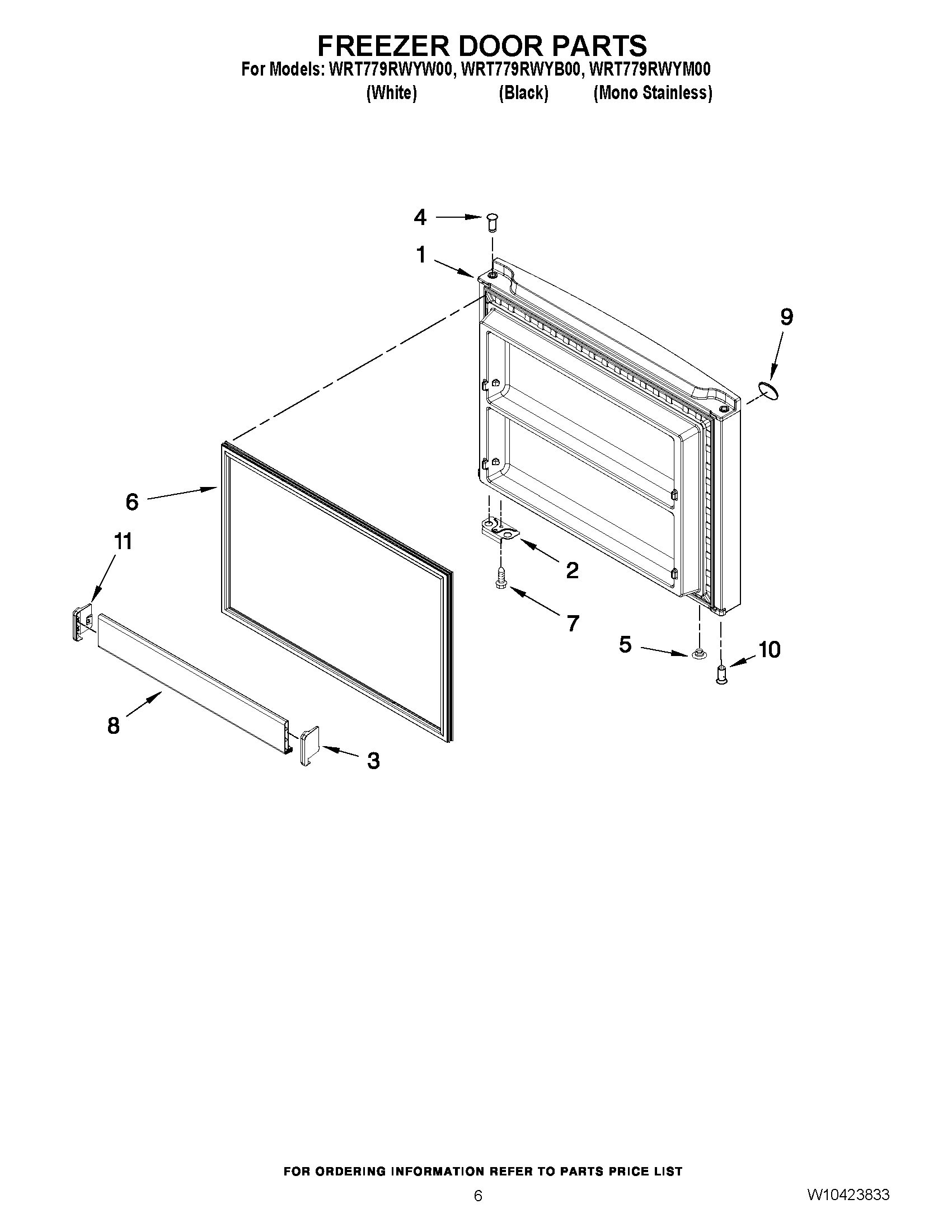

WRT779RWYW00 04 – FREEZER DOOR PARTS

WRT779RWYW00 04 – FREEZER DOOR PARTS

Written by

in

WRT779RWYW00 04 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (MONO STAINLESS)
1FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (BLACK)
1FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (WHITE)
2W11745278 Whirlpool Bracket
3CAP, TRIM END (RIGHT HAND)
4WP2182181 Whirlpool Refrigerator Thimble
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5PLUG, HINGE SLEEVE (GREY)
62159327 Whirlpool Refrigerator Door Gasket
62177304 Whirlpool Refrigerator FIP Gasket
6W11624958 Whirlpool Refrigerator FIP Gasket
7WP681249 Whirlpool Screw Assembly
8W10469910 Whirlpool Refrigerator Door Trim
9WPW10393264 Whirlpool Refrigerator Nameplate
9W11178521 Whirlpool Dishwasher Nameplate
10W11189115 Whirlpool Refrigerator Thimble
11WPW10338485 Whirlpool Refrigerator End Cap
