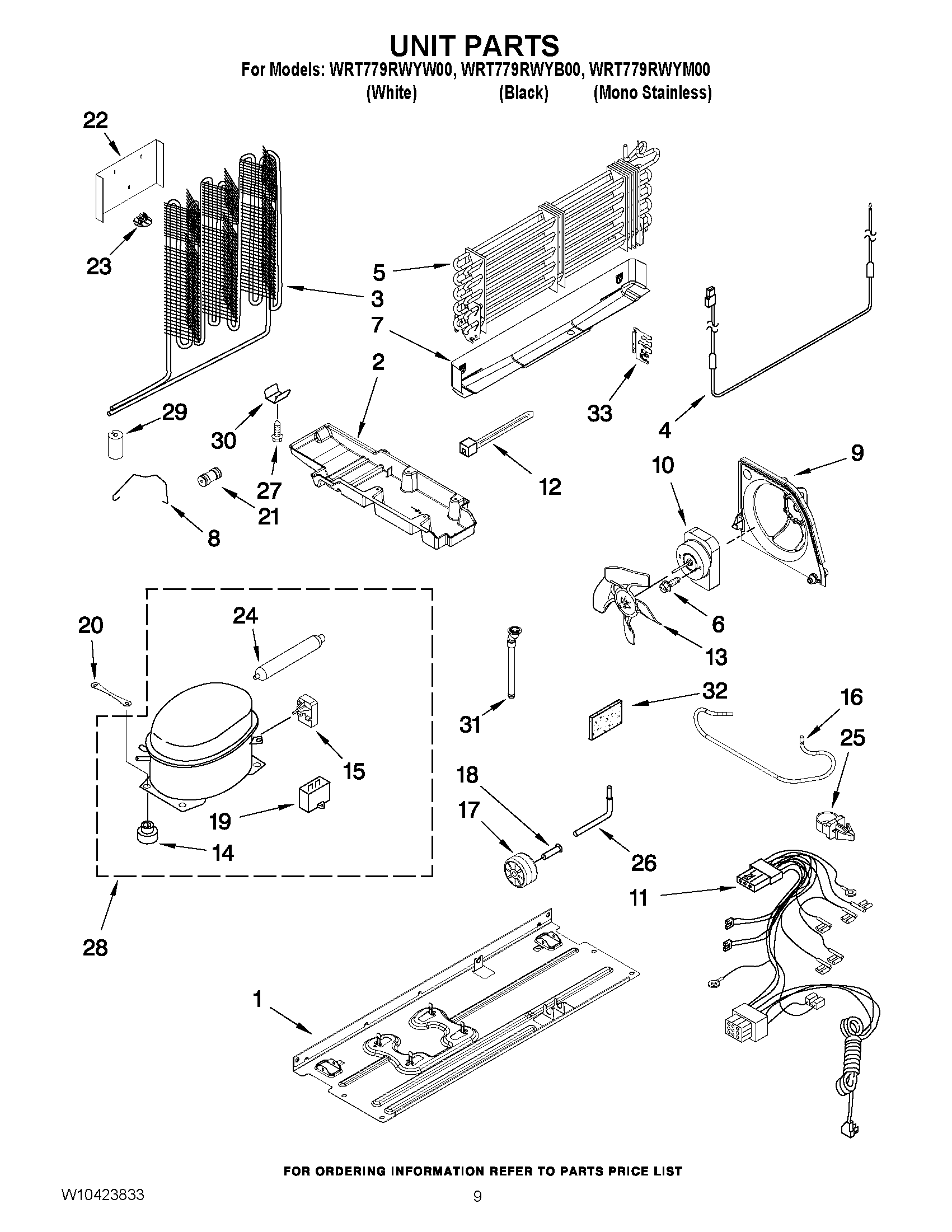

WRT779RWYW00 06 – UNIT PARTS

WRT779RWYW00 06 – UNIT PARTS

Written by

in

WRT779RWYW00 06 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10890667 Whirlpool Refrigerator Drip Pan
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	W11661170 Whirlpool Clip
9	WP2315541 Whirlpool Refrigerator Air Baffle
10	WP2188874 Whirlpool Refrigerator Condenser Motor
11	W10315843 Whirlpool Refrigerator Wire Harness
12	WPW10339879 Whirlpool Wire Tie
13	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WPW10194431 Whirlpool Start Device
16	TUBE, SUCTION
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	W10236396 Whirlpool Refrigerator Strap
21	WPW10271543 Whirlpool Refrigerator Connector
22	W10349514 Whirlpool Refrigerator Air Baffle
23	W10296661 Whirlpool Refrigerator Clip
24	WPW10143759 Whirlpool Dryer Filter
25	2219077 Whirlpool Refrigerator Clip
26	W10274306 Whirlpool Refrigerator Tube
27	W11544659 Whirlpool Refrigerator Screw
28	W10233960 Whirlpool Refrigerator Compressor
29	W10852725 Whirlpool Refrigerator Grommet
30	W10683556 Whirlpool Refrigerator Clip
31	W11190084 Whirlpool Refrigerator Drain Tube
32	W11553819 Whirlpool Refrigerator Insulation
33	W10314197 Whirlpool Refrigerator Bracket
