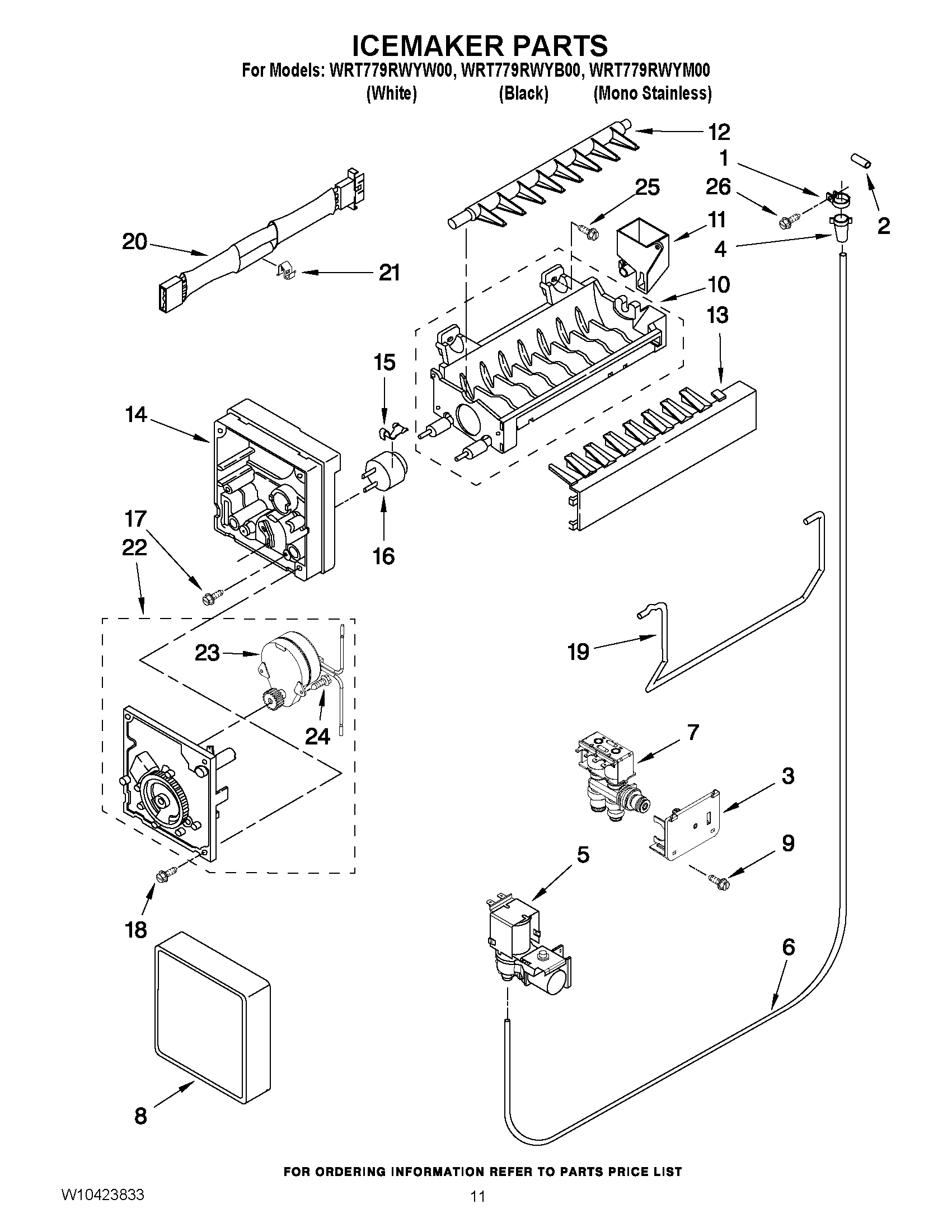

WRT779RWYW00 07 – ICEMAKER PARTS

WRT779RWYW00 07 – ICEMAKER PARTS

Written by

in

WRT779RWYW00 07 – ICEMAKER PARTS

Products

PositionProduct
1WP488878 Whirlpool Refrigerator Tube Clamp
2Tube, Water Inlet
3W10847867 Whirlpool Refrigerator Bracket
44387491 Whirlpool Refrigerator Insert
5VALVE-INLT REFR
6W10823511 Whirlpool Refrigerator Water Tube
7WPW10279866 Whirlpool Refrigerator Inlet Valve
8WPW10289690 Whirlpool Ice Maker Cover
9WP489442 Whirlpool Refrigerator Screw
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11W11676540 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WPW10122563 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19WP627792 Whirlpool Refrigerator Shut Off Arm
20W10309399 Whirlpool Refrigerator Wire Harness
21WP628379 Whirlpool Refrigerator Clip
228201515 Whirlpool Refrigerator Motor and Gear Module Kit
23W10122551 Whirlpool Refrigerator Motor Model
24489136 Whirlpool Refrigerator Screw
25WP488163 Whirlpool Refrigerator Screw
26WP488787 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
