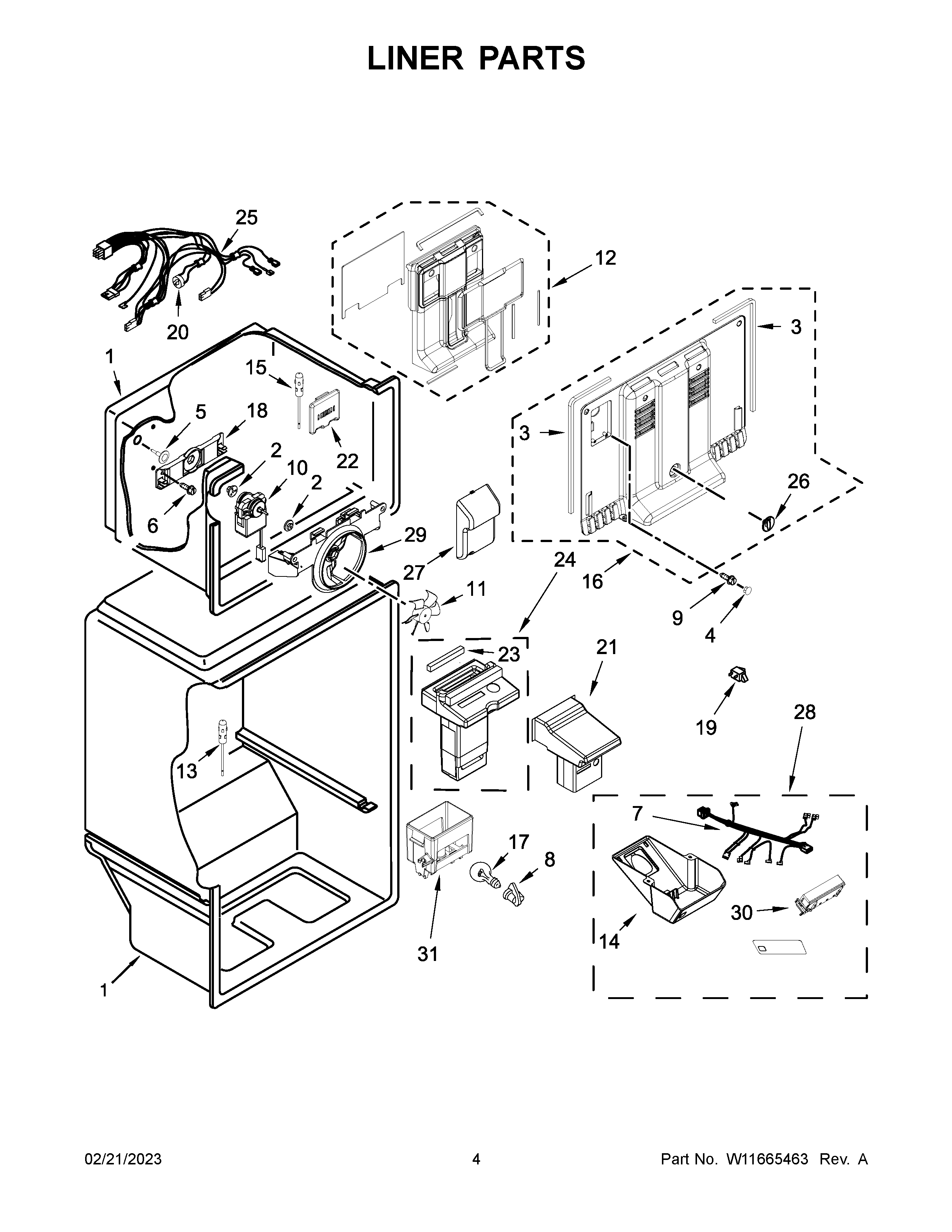

WRTX5028PB00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT SERVICED)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10579698 Whirlpool Refrigerator Gasket
4	W10854527 Whirlpool Refrigerator Cover
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	W11203361 Whirlpool Refrigerator Wire Harness
8	SOCKET
9	W11544659 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W11666272 Whirlpool Air Duct
13	THERMISTOR
14	W10569265 Whirlpool Refrigerator Control Box
15	WPW10384183 Whirlpool Thermistor
16	W11634632 Whirlpool Evaporator Cover
17	W11502762 Whirlpool Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11123941 Whirlpool Refrigerator Switch
20	BI-METAL DEFROST (NOT SERVICED)
21	W11208347 Whirlpool Refrigerator Air Duct
22	2321148 Whirlpool Refrigerator Housing
23	W10702120 Whirlpool Refrigerator Gasket
24	ASSEMBLY, AIR DIFFUSER
25	W11609822 Whirlpool Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	COVER
28	W11595220 Whirlpool Refrigerator Control Box
29	W10850162 Whirlpool Refrigerator Orifice
30	W11599786-includeCORE Whirlpool W11599786 Refrigerator Electronic Control Board + Core
31	W10570480 Whirlpool Cover
