WRTX5328PB00 05 – DOOR PARTS

WRTX5328PB00 05 – DOOR PARTS

Written by

in

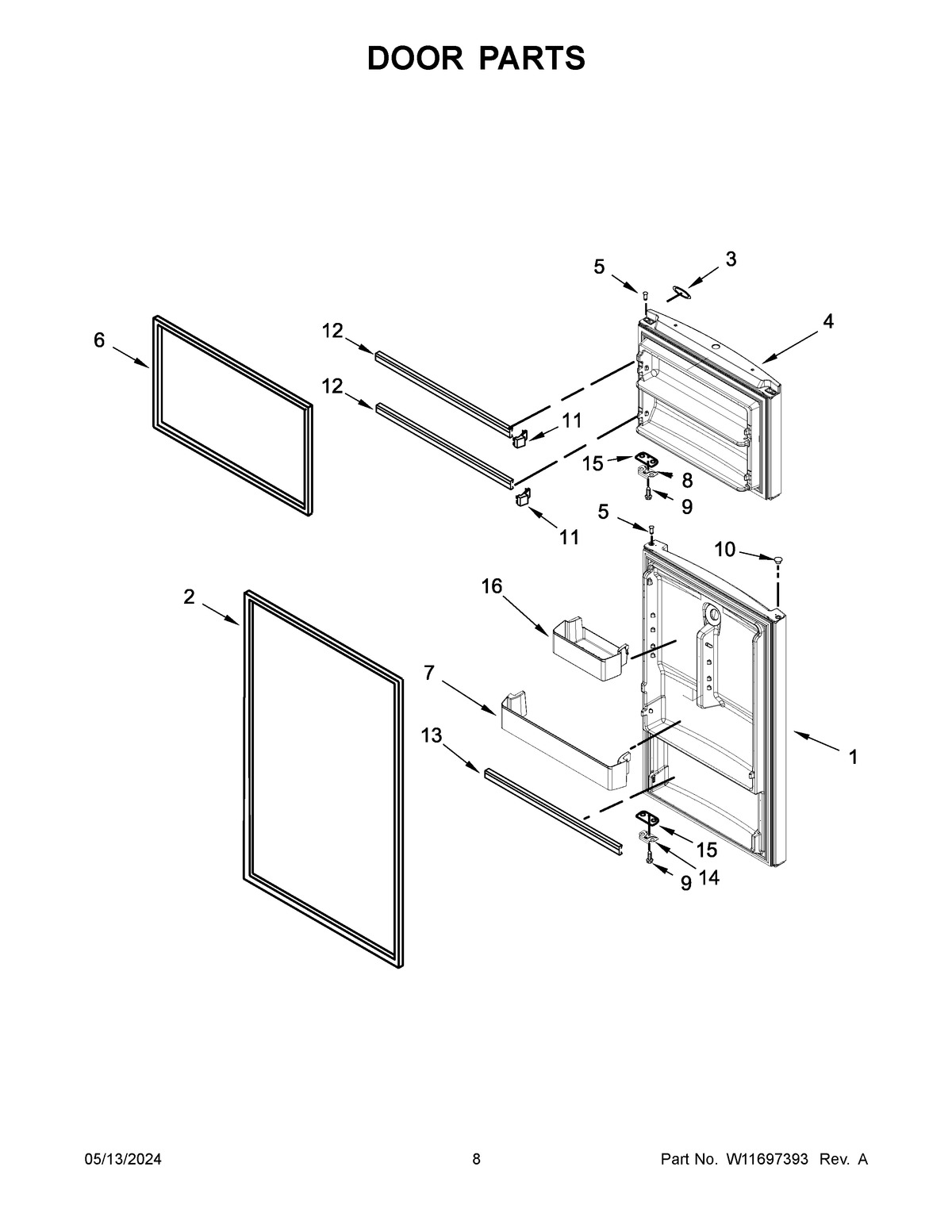

WRTX5328PB00 05 – DOOR PARTS

Products

PositionProduct
1W11645694 Whirlpool Door FIP
1AREFRIGERATOR DOOR (INCLUDES ILLUSTRATION 2) (BLACK)
1BW11645695 Whirlpool FIP Door
22319266W Whirlpool Refrigerator FIP Gasket
2BW10244874 Whirlpool Refrigerator FIP Gasket
2A2319266B Whirlpool Refrigerator Gasket FIP
3W11178521 Whirlpool Dishwasher Nameplate
4ALW10803963 Whirlpool Refrigerator Door Frame Inner Panel
4BFREEZER DOOR (INCLUDES ILLUSTRATION 6) (STAINLESS)
4LW10852088 Whirlpool Refrigerator FIP Door
5BW11676573 Whirlpool Thimble
5THIMBLE
5AW11189115 Whirlpool Refrigerator Thimble
6BW11661186 Whirlpool Door Gasket
6GASKET-FIP
6AWP2319263B Whirlpool Refrigerator Black Door Gasket
7W11230940 Whirlpool Refrigerator Door Shelf Rail
8W11745278 Whirlpool Bracket
9WP488921 Whirlpool Refrigerator Screw
10BPLUG, HINGE SLEEVE (GREY)
10WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
10AWP2212651 Whirlpool Refrigerator Button Plug
11WP2156003 Whirlpool Refrigerator Door Shelf End Cap
12TRIM, DOOR SHELF
13TRIM, DOOR SHELF
14W10492012 Whirlpool Refrigerator Bracket
15WP2258681W Whirlpool Refrigerator Shim
16W11190821 Whirlpool Refrigerator Bin
