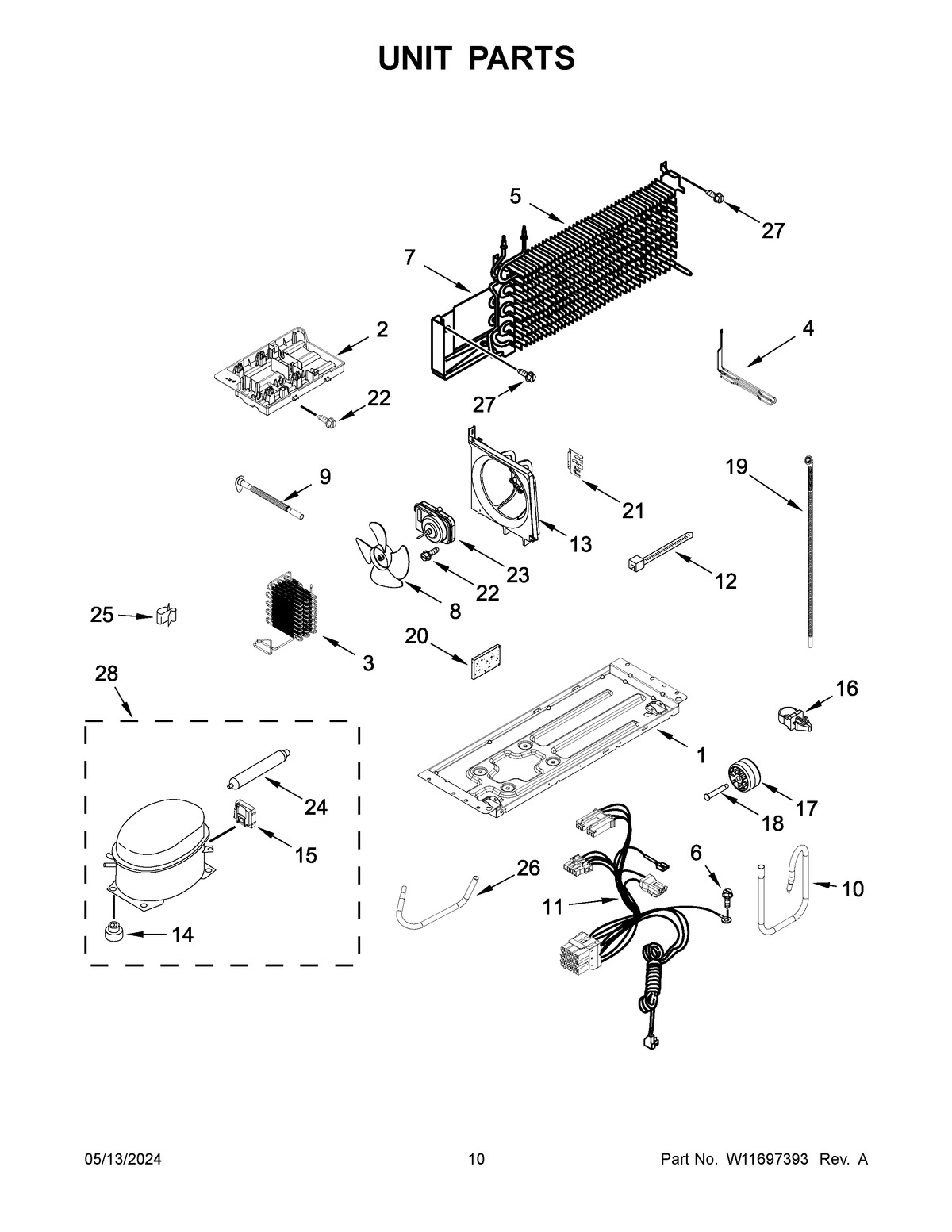

WRTX5328PB00 06 – UNIT PARTSadmin2025-04-26T11:14:27+00:00WRTX5328PB00 06 – UNIT PARTS ProductsPositionProductNIREFRIGERANT CHARGE 56 GRAMS (R600A)NIW11504430 Whirlpool Refrigerator CouplerNIW11504415 Whirlpool Refrigerator CouplerNICOUPLER1SUPPORT PLATE, COMPRESSOR2W10565417 Whirlpool Refrigerator Evaporator Tray3BW11504432 Whirlpool Refrigerator Coupler3CONDENSER4W11579349 Whirlpool Refrigerator Heater5AW11504450 Whirlpool Refrigerator Coupler5BW11506620 Whirlpool Refrigerator Coupler5W11579351 Whirlpool Refrigerator Evaporator6SCREW7W10570572 Whirlpool Refrigerator Shield8W11204896 Whirlpool Refrigerator Fan Blade9W10582029 Whirlpool Refrigerator Extension10TUBE, SUCTION11HARNESS, UNIT12WPW10339879 Whirlpool Wire Tie13WPW10570380 Whirlpool Refrigerator Air Baffle14WPW10169124 Whirlpool Refrigerator Grommet15INVERTER162219077 Whirlpool Refrigerator Clip17WPW10475495 Whirlpool Roller Assembly18WP2264756 Whirlpool Refrigerator Rivet19W10286976 Whirlpool Refrigerator Drain Tube20W11553819 Whirlpool Refrigerator Insulation21BRACKET, EVAPORATOR22WPW10171469 Whirlpool Refrigerator Screw23W11613295 Whirlpool Condenser Motor24BW11504447 Whirlpool Refrigerator Coupler24W11109499 Whirlpool Refrigerator Tube24AW11504445 Whirlpool Refrigerator Coupler25W11501419 Whirlpool Refrigerator Clip26TUBE, PROCESS27WP489442 Whirlpool Refrigerator Screw28W11557671 Whirlpool Refrigerator Compressor
