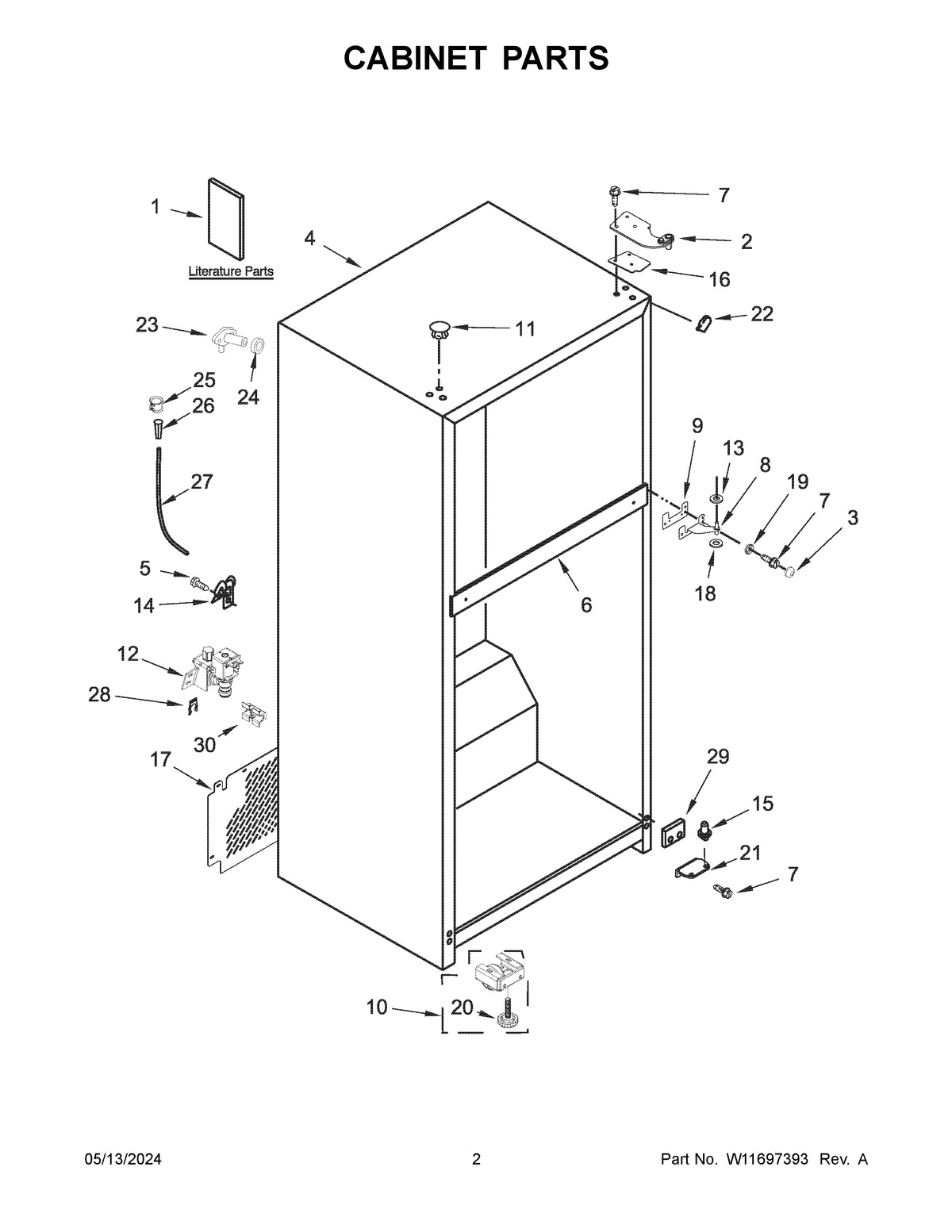

WRTX5328PM00 02 – CABINET PARTS

WRTX5328PM00 02 – CABINET PARTS

Written by

in

WRTX5328PM00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1TECH SHEET
1AUSE AND CARE GUIDE
2W11714879 Whirlpool Door Hinge
3BW10849198 Whirlpool Refrigerator Cap Screw
3AW10853677 Whirlpool Refrigerator Screw Cap
3W10846529 Whirlpool Refrigerator Screw Cap
4CABINET (NOT SERVICED)
5WP489442 Whirlpool Refrigerator Screw
6RAIL, CENTER (NOT SERVICED)
7WP489497 Whirlpool Screw
8WP2166037 Whirlpool Refrigerator Door Hinge
9A2215385 Whirlpool Refrigerator Shim
92166043 Whirlpool Refrigerator Shim
10WPW10142530 Whirlpool Refrigerator Cabinet Roller
11BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
11WPW10520304 Whirlpool Refrigerator Button Plug
11AWPW10520305 Whirlpool Refrigerator Button Plug
12WPW10279909 Whirlpool Refrigerator Inlet Valve
13WP489467 Whirlpool Hinge Shim
14W11234470 Whirlpool Refrigerator Clamp
15W11026307 Whirlpool Refrigerator Hinge Pin
17COVER UNIT
18WP487576 Whirlpool Washer
19W10847959 Whirlpool Refrigerator Washer
20WPW10133299 Whirlpool Refrigerator Screw
21WP2325482 Whirlpool Bottom Hinge
22AW11500943 Whirlpool Refrigerator Filler
22W10859322 Whirlpool Refrigerator Filler
22BW11573591 Whirlpool Refrigerator Filler
23W11292468 Whirlpool Refrigerator Fitting
24WP1106508 Whirlpool Refrigerator Gasket
25W10861184 Whirlpool Refrigerator Clamp
264387491 Whirlpool Refrigerator Insert
27W10823511 Whirlpool Refrigerator Water Tube
28W11676611 Whirlpool Ring
29WP2201567 Whirlpool Hinge Shim
30SPACER, BACK
