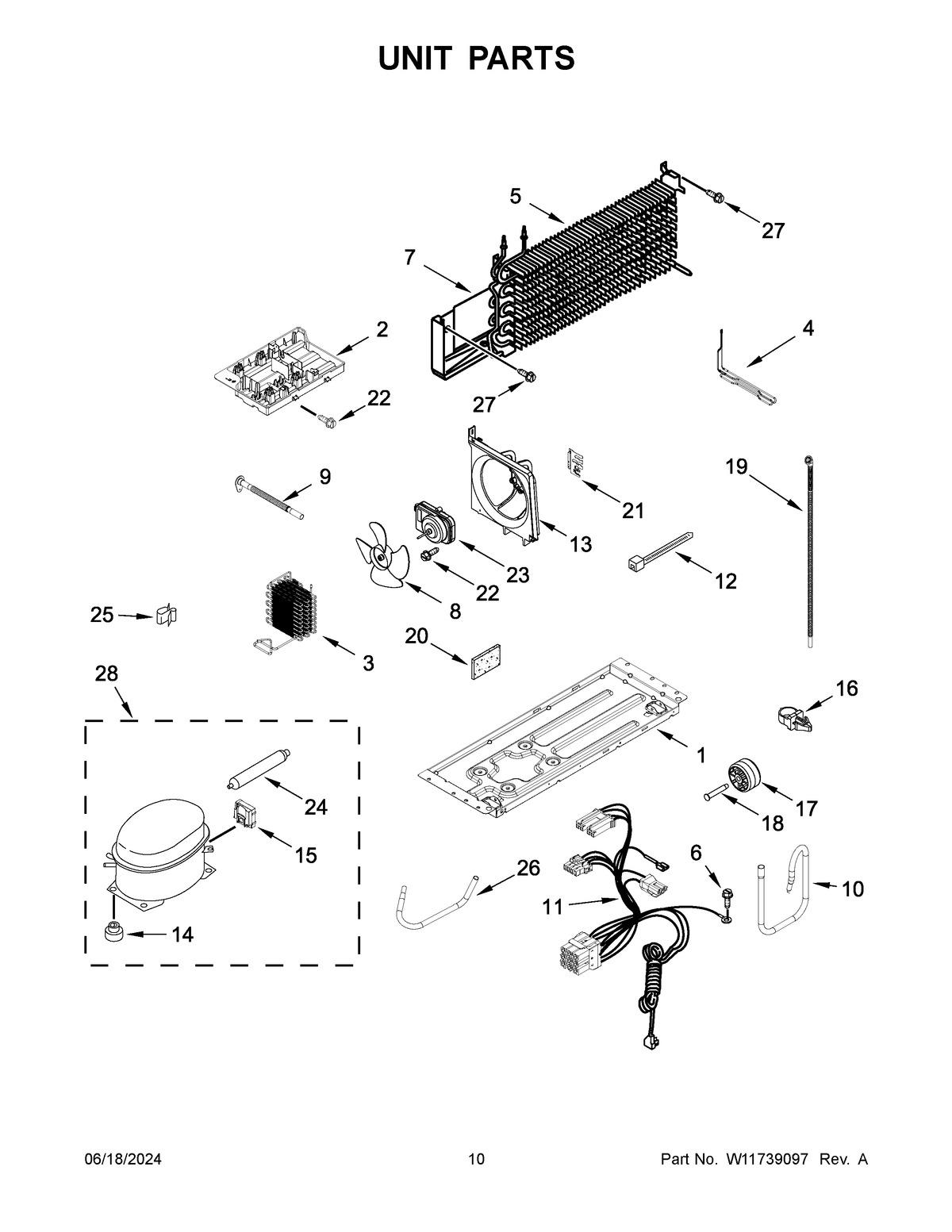

WRTX5328PM01 06 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 48 GRAMS (R600A)
1	SUPPORT PLATE, COMPRESSOR
2	W10565417 Whirlpool Refrigerator Evaporator Tray
3B	W11504432 Whirlpool Refrigerator Coupler
3	CONDENSER
4	W11579349 Whirlpool Refrigerator Heater
5B	W11506620 Whirlpool Refrigerator Coupler
5	W11579351 Whirlpool Refrigerator Evaporator
5A	W11504450 Whirlpool Refrigerator Coupler
6	SCREW
7	W10570572 Whirlpool Refrigerator Shield
8	W11204896 Whirlpool Refrigerator Fan Blade
9	W10582029 Whirlpool Refrigerator Extension
10	TUBE, SUCTION
11	HARNESS, UNIT
12	WPW10339879 Whirlpool Wire Tie
13	WPW10570380 Whirlpool Refrigerator Air Baffle
14	WPW10169124 Whirlpool Refrigerator Grommet
15	INVERTER
16	2219077 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	W10286976 Whirlpool Refrigerator Drain Tube
20	W11553819 Whirlpool Refrigerator Insulation
21	BRACKET, EVAPORATOR
22	WPW10171469 Whirlpool Refrigerator Screw
23	W11613295 Whirlpool Condenser Motor
24B	W11504447 Whirlpool Refrigerator Coupler
24A	W11504445 Whirlpool Refrigerator Coupler
24	W11109499 Whirlpool Refrigerator Tube
25	W11501419 Whirlpool Refrigerator Clip
26	TUBE, PROCESS
27	WP489442 Whirlpool Refrigerator Screw
28	W11557671 Whirlpool Refrigerator Compressor
28A	W11504415 Whirlpool Refrigerator Coupler
28B	W11504430 Whirlpool Refrigerator Coupler
28C	COUPLER
