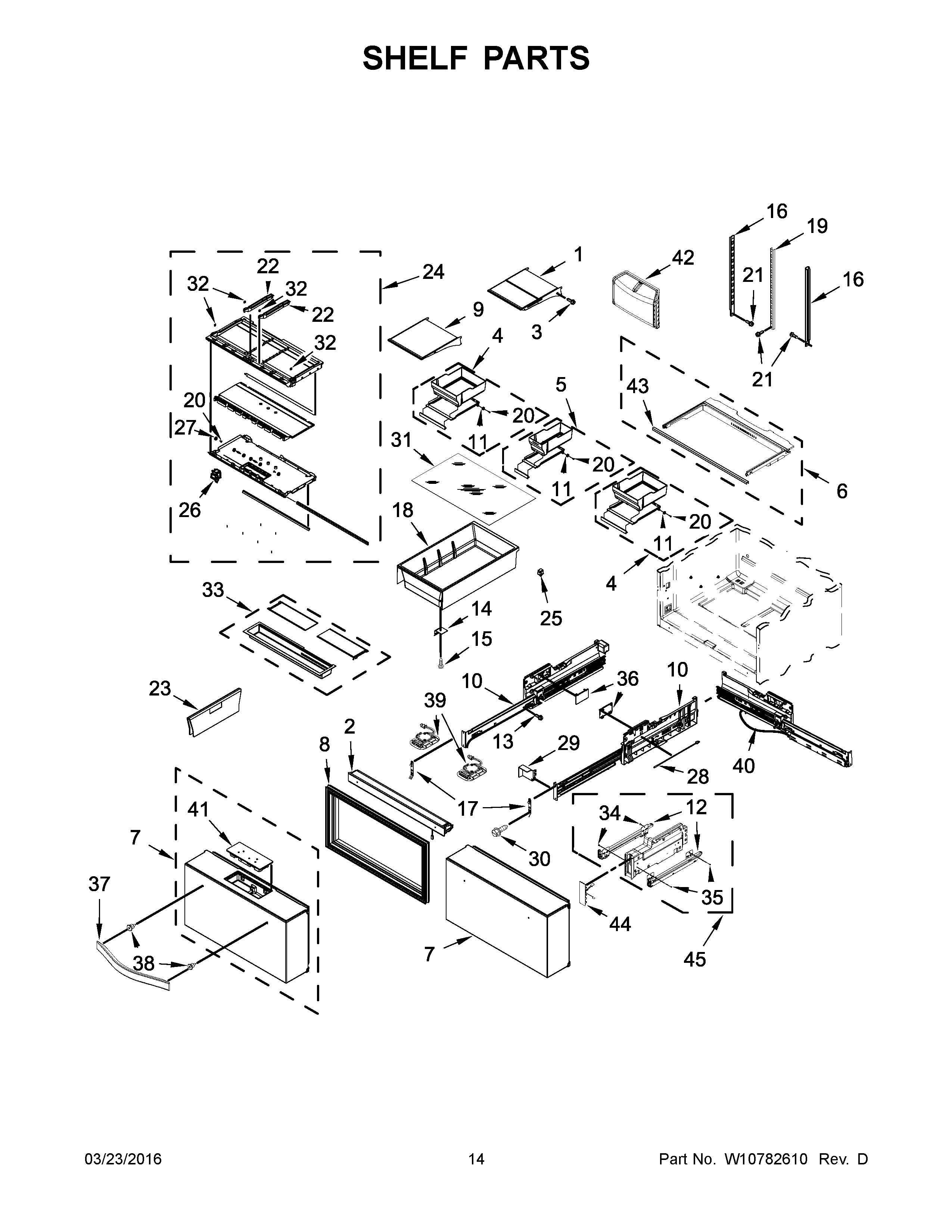

WRV976FDEM00 08 – SHELF PARTS

WRV976FDEM00 08 – SHELF PARTS

Written by

in

WRV976FDEM00 08 – SHELF PARTS

Products

Position	Product
1	WPW10709175 Whirlpool Refrigerator Glass Shelf
2	ASSEMBLY, SECONDARY MULLION (GREY)
3	W10421495 Whirlpool Refrigerator Screw
4	W10839369 Whirlpool Refrigerator Crisper Pan
5	W10509275 Whirlpool Refrigerator Crisper Pan
6	W11127833 Whirlpool Refrigerator Crisper Drawer Frame
7A	W10815676 Whirlpool Refrigerator Stainless Steel Door Assembly
7	W10815674 Whirlpool Refrigerator Stainless Steel Door Assembly
8	W10832386 Whirlpool Refrigerator FIP Gasket
9	WPW10709163 Whirlpool Refrigerator Glass Shelf
10A	W11294519 Whirlpool Refrigerator Adapter
10	W11294518 Whirlpool Refrigerator Adapter
11	W10788795 Whirlpool Refrigerator Roller
12A	W11242542 Whirlpool Refrigerator Slide
12	W10735384 Whirlpool Refrigerator Slide Assembly
13	WP98006631 Whirlpool Screw
14	W10704335 Whirlpool Refrigerator Clip
15	W10664603 Whirlpool Refrigerator Screw
16	W10467460 Whirlpool Refrigerator Ladder
17	W10732765 Whirlpool Refrigerator Clip
18	W10882850 Whirlpool Utility Pan
19	W10467461 Whirlpool Refrigerator Ladder
20	67006692 Whirlpool Refrigerator Screw
21	W10423561 Whirlpool Screw
22	GUIDE, CRISPER
23	W11026309 Whirlpool Refrigerator Divider
24	W10802388 Whirlpool Refrigerator Floor
25	W11384469 Whirlpool Door Switch
26	W11291138 Whirlpool Refrigerator Door Switch
28	W11168403 Whirlpool Refrigerator Thermistor
29	W10711645 Whirlpool Refrigerator Cover
30	W10756178 Whirlpool Screw
31	W11038526 Whirlpool Shelf Glass
32	12702901 Whirlpool Refrigerator Pad
33	W10634634 Whirlpool Door Shelf Bin
34	W10737730 Whirlpool Refrigerator Rivet
35	W10737605 Whirlpool Refrigerator Screw
36	W10518036 Whirlpool Refrigerator Cover
37	W10915399 Whirlpool Refrigerator Handle
38	WPW10661886 Whirlpool Refrigerator Door Handle Screw
39	MODULE
40	W11170612 Whirlpool Refrigerator Wire Harness
41	WPW10677119-includeCORE Whirlpool WPW10677119 Refrigerator Electronic Control Board + Core
42	W10826105 Whirlpool Refrigerator Pro Service
43	W10530297 Whirlpool Drawer Support
44	W10830861 Whirlpool Refrigerator Cover
45	W10738093 Whirlpool Refrigerator Adapter
