WRV976FDEM00 09 – DISPENSER FRONT PARTS

WRV976FDEM00 09 – DISPENSER FRONT PARTS

Written by

in

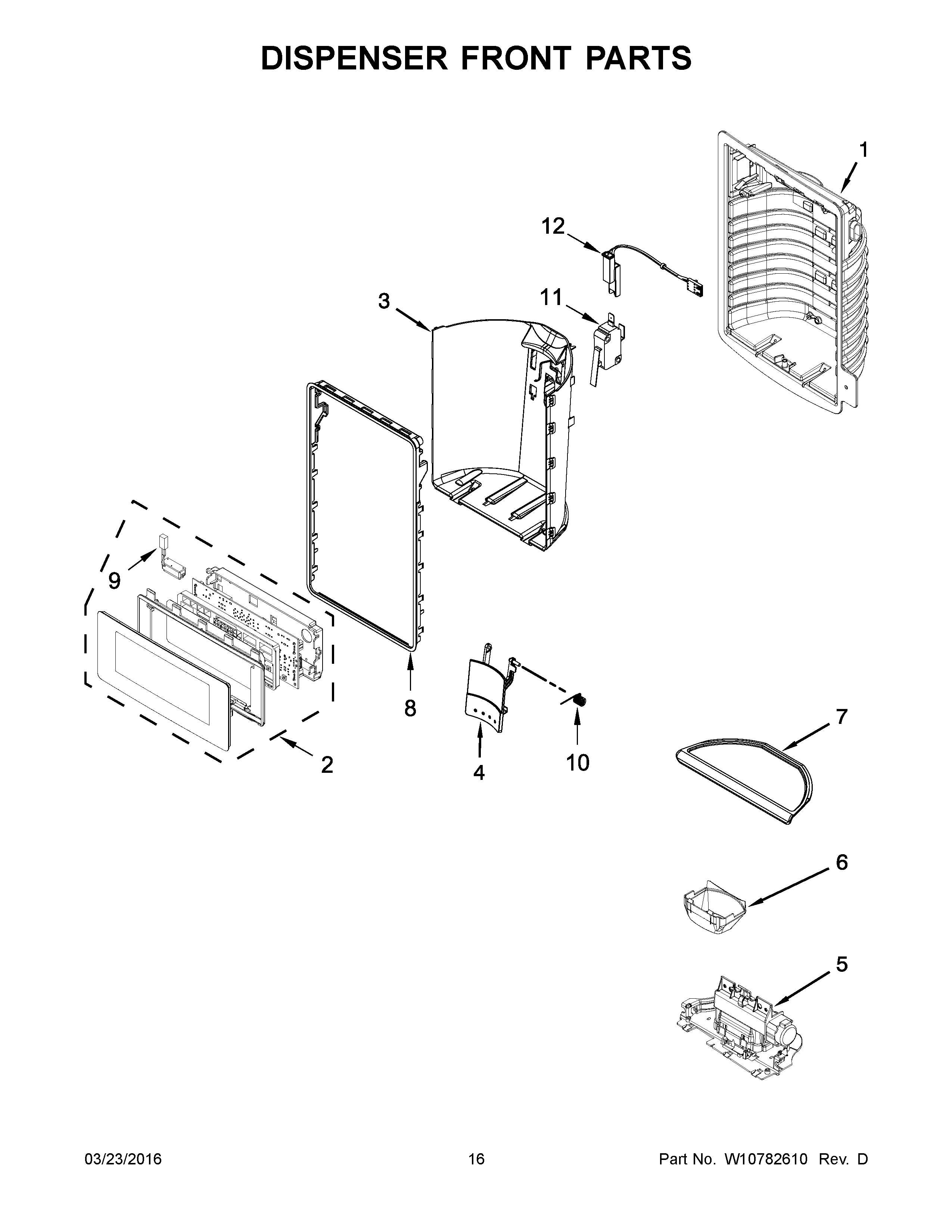

WRV976FDEM00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10677104-includeCORE Whirlpool WPW10677104 Refrigerator Electronic Control Board + Core
3W10663632 Whirlpool Refrigerator Shield
4W10673702 Whirlpool Refrigerator Door Pad
5W11122874 Whirlpool Refrigerator Ice Door
6WPW10435760 Whirlpool Refrigerator Ice Guide
7W10679589 Whirlpool Refrigerator Drip Tray
8RING, TRIM (CHROME)
9W11290115 Whirlpool Refrigerator Light
10W11109505 Whirlpool Refrigerator Spring
11W11087492 Whirlpool Refrigerator Water Dispenser Switch
12W11238426 Whirlpool Refrigerator Wire Harness
