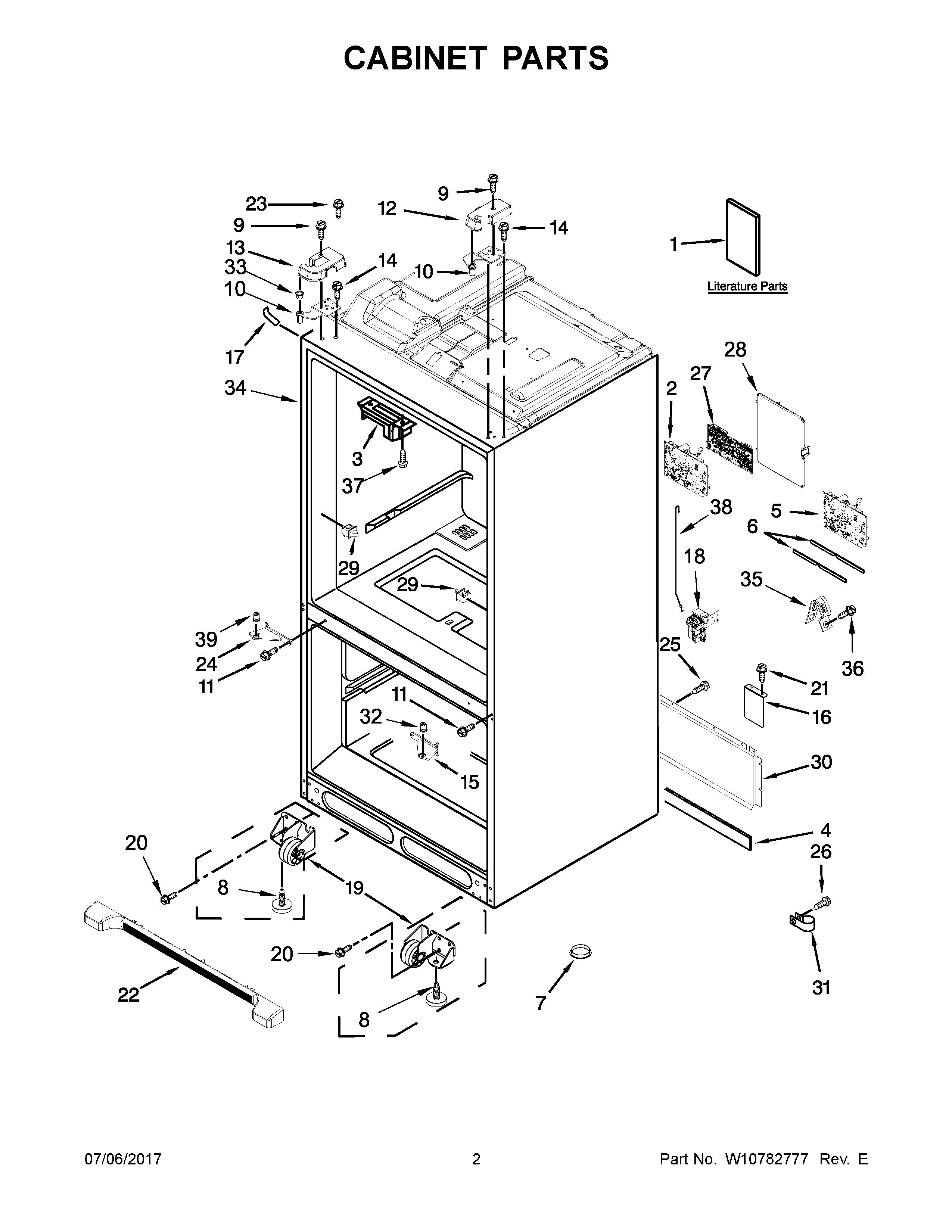

WRV986FDEM00 02 – CABINET PARTS

Products

Position	Product
1C	TECH SHEET, ENERGY GUIDE
1	TECH SHEET (ENGLISH)
1A	TECH SHEET (FRENCH)
1B	TECH SHEET, OWNERS MANUAL
2	WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
3	W10734554 Whirlpool Refrigerator Block Pivot
4	W10505487 Whirlpool Refrigerator Gasket
5	WPW10675033-includeCORE Whirlpool WPW10675033 Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10A	W11736793 Whirlpool Door Hinge
10	W11027247 Whirlpool Refrigerator Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	W10709866 Whirlpool Refrigerator Cover
13	W10725013 Whirlpool Refrigerator Cover
14	W11126052 Whirlpool Screw Assembly
15	W11167119 Whirlpool Refrigerator Door Hinge
16	W10336736 Whirlpool Refrigerator Cover
17	WP12587703AP Whirlpool Refrigerator Filler
18	W10865826 Whirlpool Refrigerator Water Inlet Valve
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	W11686675 Whirlpool Screw
22	W10911309 Whirlpool Toe Kick Plate
23	W11214483 Whirlpool Refrigerator Screw
24	W11122872 Whirlpool Refrigerator Door Hinge
26	67006425 Whirlpool Refrigerator Screw
27	W10804160-includeCORE Whirlpool W10804160 Refrigerator Electronic Control Board + Core
28	W10754591 Whirlpool Refrigerator Cover
29	W11396033 Whirlpool Refrigerator Rocker Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	COUPLER, DOOR
33	W10705239 Whirlpool Refrigerator Grommet
34	CABINET (NOT A SERVICEABLE PART)
35	549193 Whirlpool Refrigerator Power Clamp
36	SCREW
37	W10854958 Whirlpool Refrigerator Screw
38	W11209890 Whirlpool Refrigerator Water Tube
