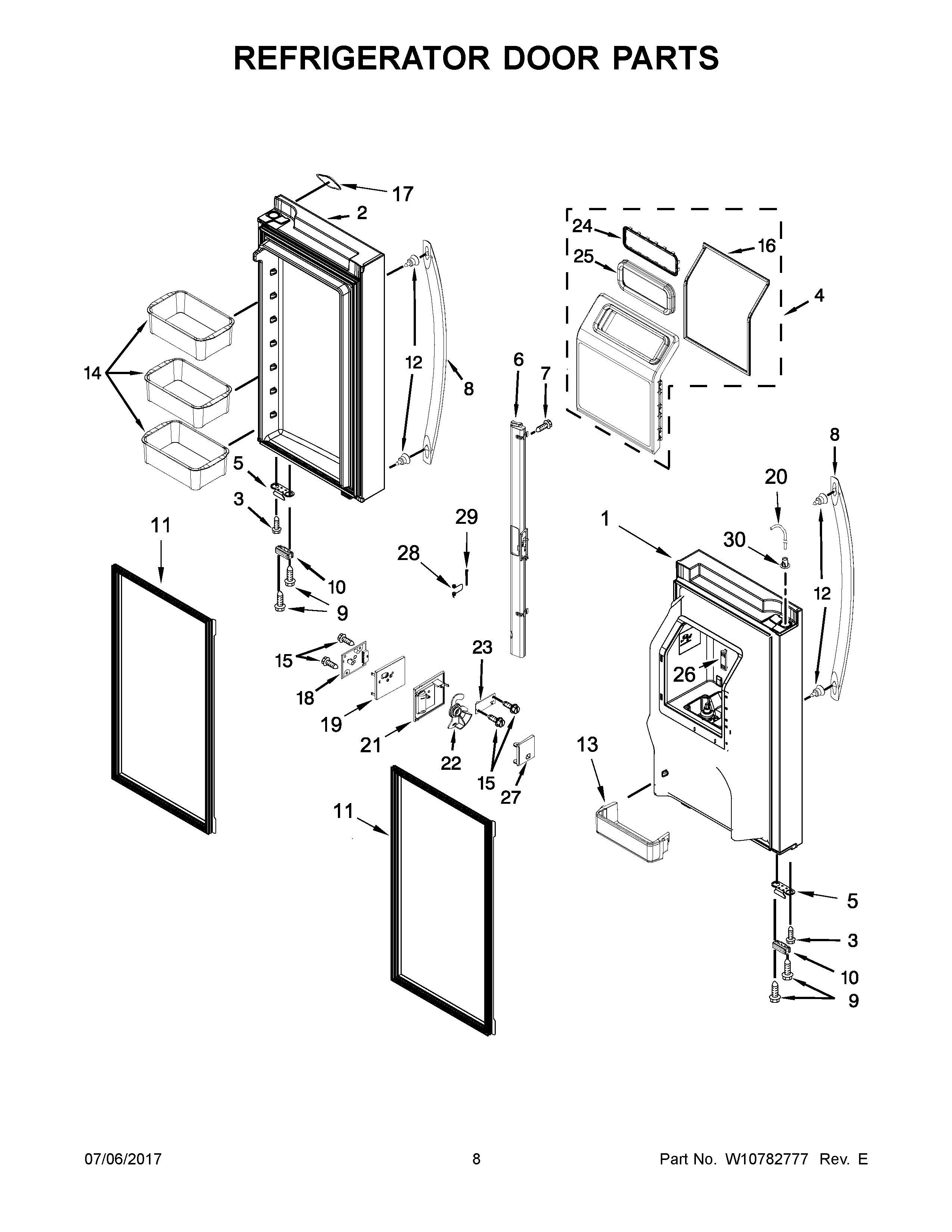

WRV986FDEM00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W10815692 Whirlpool Refrigerator Stainless Steel Door Assembly
2	W10815685 Whirlpool Refrigerator Stainless Steel Door Assembly
4	WPW10549589 Whirlpool Refrigerator Ice Door
5A	W11212164 Whirlpool Refrigerator Door Closer
5	W10904595 Whirlpool Refrigerator Closer
6	W11122876 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W10883202 Whirlpool Handle
9	WP98165 Whirlpool Screw
10	W11573367 Whirlpool Refrigerator Door Bumper
11	W10846057 Whirlpool Door Gasket
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W11366475 Whirlpool Refrigerator Trivet
14	W11371716 Whirlpool Refrigerator Gallon Door Shelf Bin
15	2006254 Whirlpool Refrigerator Screw
16	W11624997 Whirlpool Refrigerator Gasket
17	W11223753 Whirlpool Refrigerator Nameplate
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	W11126260 Whirlpool Refrigerator Water Tube
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
29	WP2198634 Whirlpool Door Pin
30	W10562834 Whirlpool Refrigerator Clip
