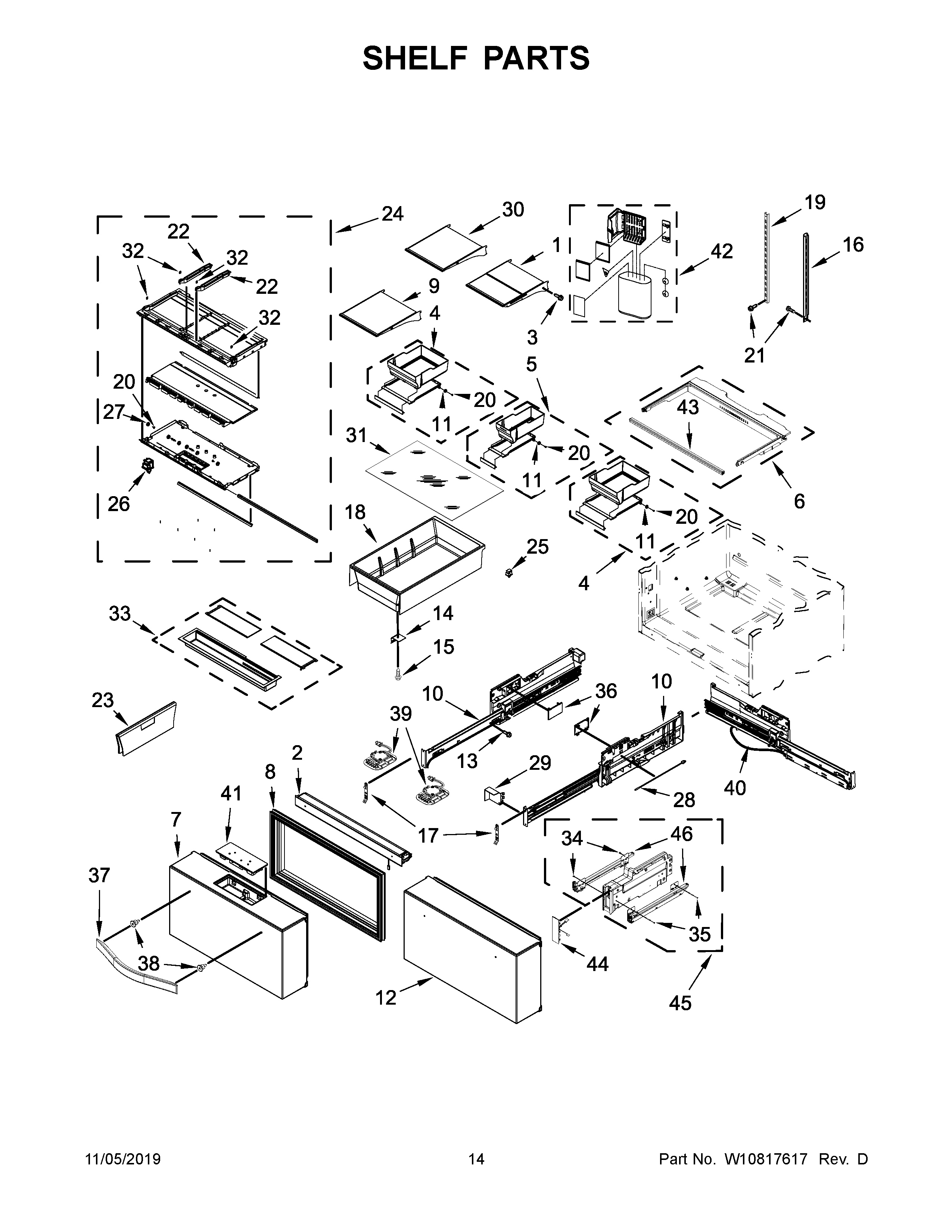

WRV996FDEE01 08 – SHELF PARTS

WRV996FDEE01 08 – SHELF PARTS

Written by

in

WRV996FDEE01 08 – SHELF PARTS

Products

Position	Product
1	WPW10738974 Whirlpool Glass Shelf
2B	ASSEMBLY, SECONDARY MULLION (GREY)
2	ASSEMBLY, SECONDARY MULLION (WHITE)
2A	ASSEMBLY, SECONDARY MULLION (BLACK)
3	W10421495 Whirlpool Refrigerator Screw
4	W10839369 Whirlpool Refrigerator Crisper Pan
5	W10509275 Whirlpool Refrigerator Crisper Pan
6	W11127833 Whirlpool Refrigerator Crisper Drawer Frame
7B	W10815674 Whirlpool Refrigerator Stainless Steel Door Assembly
7	DOOR, PANTRY (INCLUDES ITEM 8) LEFT HAND (WHITE)
7A	DOOR, PANTRY (INCLUDES ITEM 8) LEFT HAND (BLACK)
8B	W10832386 Whirlpool Refrigerator FIP Gasket
8A	W10832385 Whirlpool Refrigerator FIP Gasket
8	GASKET, PANTRY DOOR (WHITE)
9	WPW10738981 Whirlpool Glass Shelf
10	W11294518 Whirlpool Refrigerator Adapter
10A	W11294519 Whirlpool Refrigerator Adapter
12	DOOR, PANTRY (INCLUDES ITEM 8) RIGHT HAND (BLACK)
13	WP98006631 Whirlpool Screw
14	W10704335 Whirlpool Refrigerator Clip
15	W10664603 Whirlpool Refrigerator Screw
16	W10719660 Whirlpool Refrigerator Ladder
17	W10732765 Whirlpool Refrigerator Clip
18	W10882850 Whirlpool Utility Pan
19	W10467461 Whirlpool Refrigerator Ladder
20	67006692 Whirlpool Refrigerator Screw
21	WPW10666373 Whirlpool Refrigerator Screw
22	GUIDE, CRISPER
23	W11026309 Whirlpool Refrigerator Divider
24	W11215630 Whirlpool Refrigerator Floor
25	W11384469 Whirlpool Door Switch
26	W11291138 Whirlpool Refrigerator Door Switch
27	W10788795 Whirlpool Refrigerator Roller
28	W11168403 Whirlpool Refrigerator Thermistor
29	W10711645 Whirlpool Refrigerator Cover
30	ASSEMBLY, LIGHTED SHELF
31	W11038526 Whirlpool Shelf Glass
32	12702901 Whirlpool Refrigerator Pad
33	W10634634 Whirlpool Door Shelf Bin
34	W10737730 Whirlpool Refrigerator Rivet
35	W10737605 Whirlpool Refrigerator Screw
36	W10518036 Whirlpool Refrigerator Cover
37	W10915399 Whirlpool Refrigerator Handle
38	WPW10661886 Whirlpool Refrigerator Door Handle Screw
39	MODULE
40	W11170612 Whirlpool Refrigerator Wire Harness
41	WPW10769075-includeCORE Whirlpool WPW10769075 Refrigerator Electronic Control Board + Core
42	W10826105 Whirlpool Refrigerator Pro Service
43	W10530297 Whirlpool Drawer Support
44A	WPL W10733544
44	W10830855 Whirlpool Refrigerator Cover
44B	W10830861 Whirlpool Refrigerator Cover
45	W11294550 Whirlpool Refrigerator Adapter
46A	W11242573 Whirlpool Refrigerator Slide
46	W11242542 Whirlpool Refrigerator Slide
