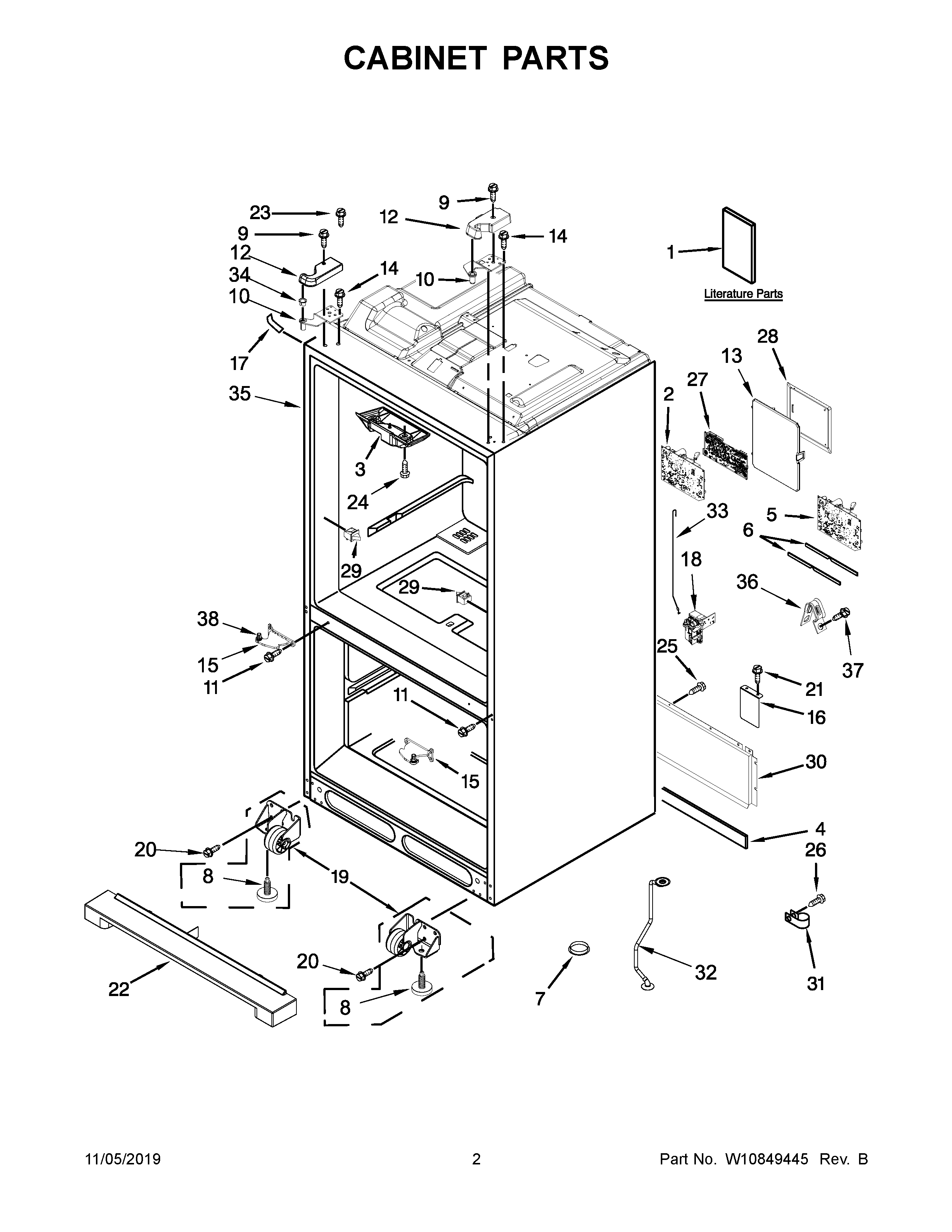

WRV996FDEE02 02 – CABINET PARTS

WRV996FDEE02 02 – CABINET PARTS

Written by

in

WRV996FDEE02 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET, ENERGY GUIDE
1TECH SHEET (ENGLISH)
1ATECH SHEET (FRENCH)
1BTECH SHEET, OWNERS MANUAL
2WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
3W10734554 Whirlpool Refrigerator Block Pivot
4W10505487 Whirlpool Refrigerator Gasket
5WPW10675033-includeCORE Whirlpool WPW10675033 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10W11027247 Whirlpool Refrigerator Door Hinge
10AW11736793 Whirlpool Door Hinge
11WP67006380 Whirlpool Screw
12COVER, TOP HINGE LEFT HAND (BLACK)
12AW10709867 Whirlpool Refrigerator Cover
13W10277839 Whirlpool Refrigerator Cover
14WPW10308751 Whirlpool Screw
15AW10691700 Whirlpool Refrigerator Door Hinge
15W10691674 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WP33001882 Whirlpool Screw
22W11129933 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10854958 Whirlpool Refrigerator Screw
2667006425 Whirlpool Refrigerator Screw
27W10804160-includeCORE Whirlpool W10804160 Refrigerator Electronic Control Board + Core
28W10754591 Whirlpool Refrigerator Cover
29W11123941 Whirlpool Refrigerator Switch
30COVER, UNIT
31W11456069 Whirlpool Refrigerator Clamp
32TUBE, DRAIN
33W11209890 Whirlpool Refrigerator Water Tube
34W10705239 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37SCREW
38COUPLER, DOOR
