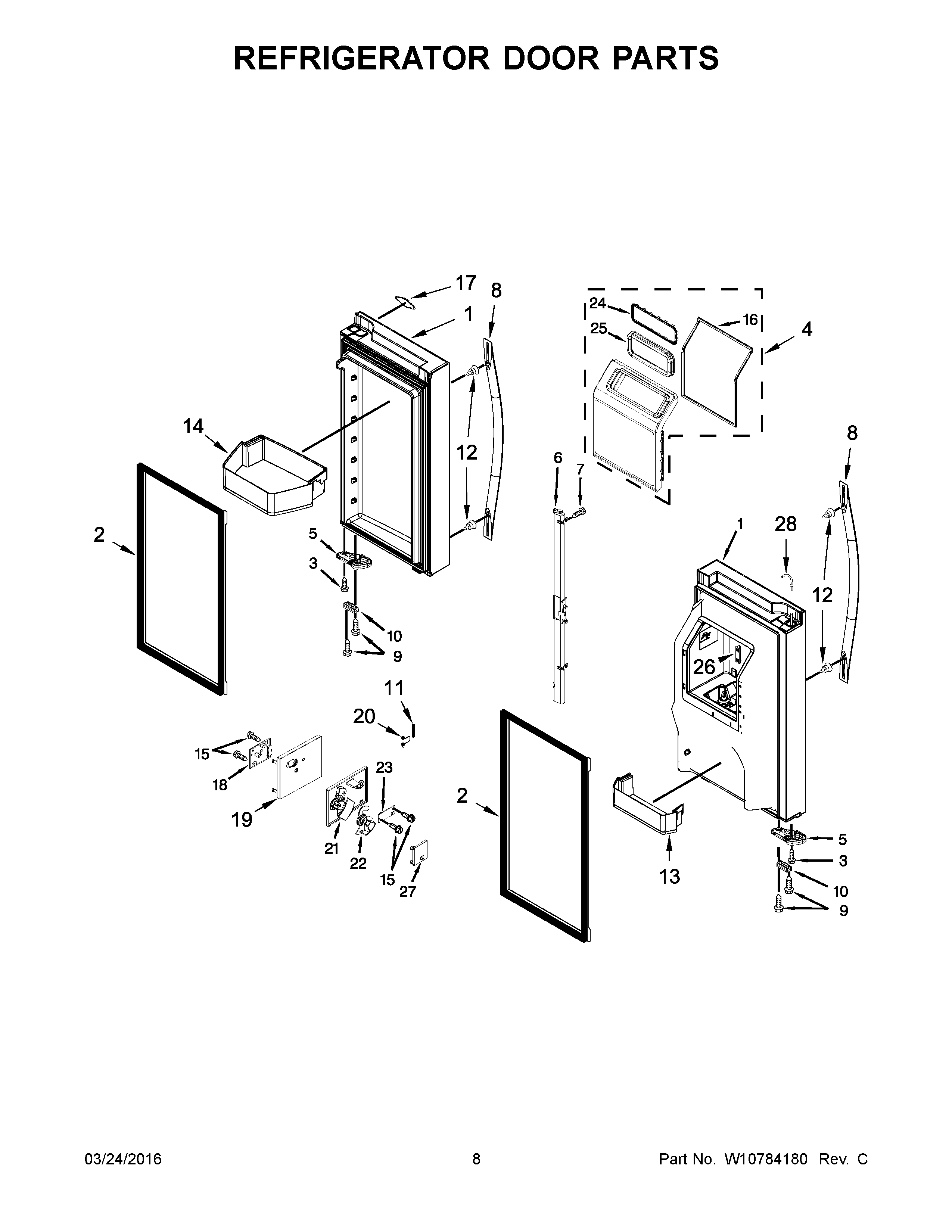

WRV996FDEH00 05 – REFRIGERATOR DOOR PARTS

WRV996FDEH00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRV996FDEH00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DDOOR, REFRIGERATOR (INCLUDES ITEM 2) RIGHT HAND (BLACK)
1EW10815685 Whirlpool Refrigerator Stainless Steel Door Assembly
1CDOOR, REFRIGERATOR (INCLUDES ITEM 2) RIGHT HAND (WHITE)
1BW10815692 Whirlpool Refrigerator Stainless Steel Door Assembly
1DOOR, REFRIGERATOR (INCLUDES ITEM 2) LEFT HAND (WHITE)
1ADOOR, REFRIGERATOR (INCLUDES ITEM 2) LEFT HAND (BLACK)
2BW10846057 Whirlpool Door Gasket
2W10638484 Whirlpool Refrigerator FIP Gasket
2AW11544658 Whirlpool Gasket Assembly
3WPW10464016 Whirlpool Refrigerator Screw
4WPW10549589 Whirlpool Refrigerator Ice Door
5AW11212164 Whirlpool Refrigerator Door Closer
5W10904595 Whirlpool Refrigerator Closer
6BW11122876 Whirlpool Refrigerator Mullion Rail
6W10733650 Whirlpool Mullion Rail
6AMULLION, DOOR (BLACK)
7W11311945 Whirlpool Refrigerator Screw
8W10883202 Whirlpool Handle
9WP98165 Whirlpool Screw
10BUMPER, DOOR (WHITE)
10AW10407187 Whirlpool Refrigerator Door Bumper
10BW11573367 Whirlpool Refrigerator Door Bumper
11WP2198634 Whirlpool Door Pin
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13TRIVET, 2 LITER
14BUCKET, GALLON
152006254 Whirlpool Refrigerator Screw
16W11624997 Whirlpool Refrigerator Gasket
17WPW10393265 Whirlpool Refrigerator Nameplate
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19COVER, RECEIVER
20WP2198635 Whirlpool Refrigerator Spring
21W10258502 Whirlpool Refrigerator Cover
22W10258540 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24WPW10400825 Whirlpool Refrigerator Retainer
25WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26VENT, THERMISTOR
27FLIPPER
28W11126260 Whirlpool Refrigerator Water Tube
