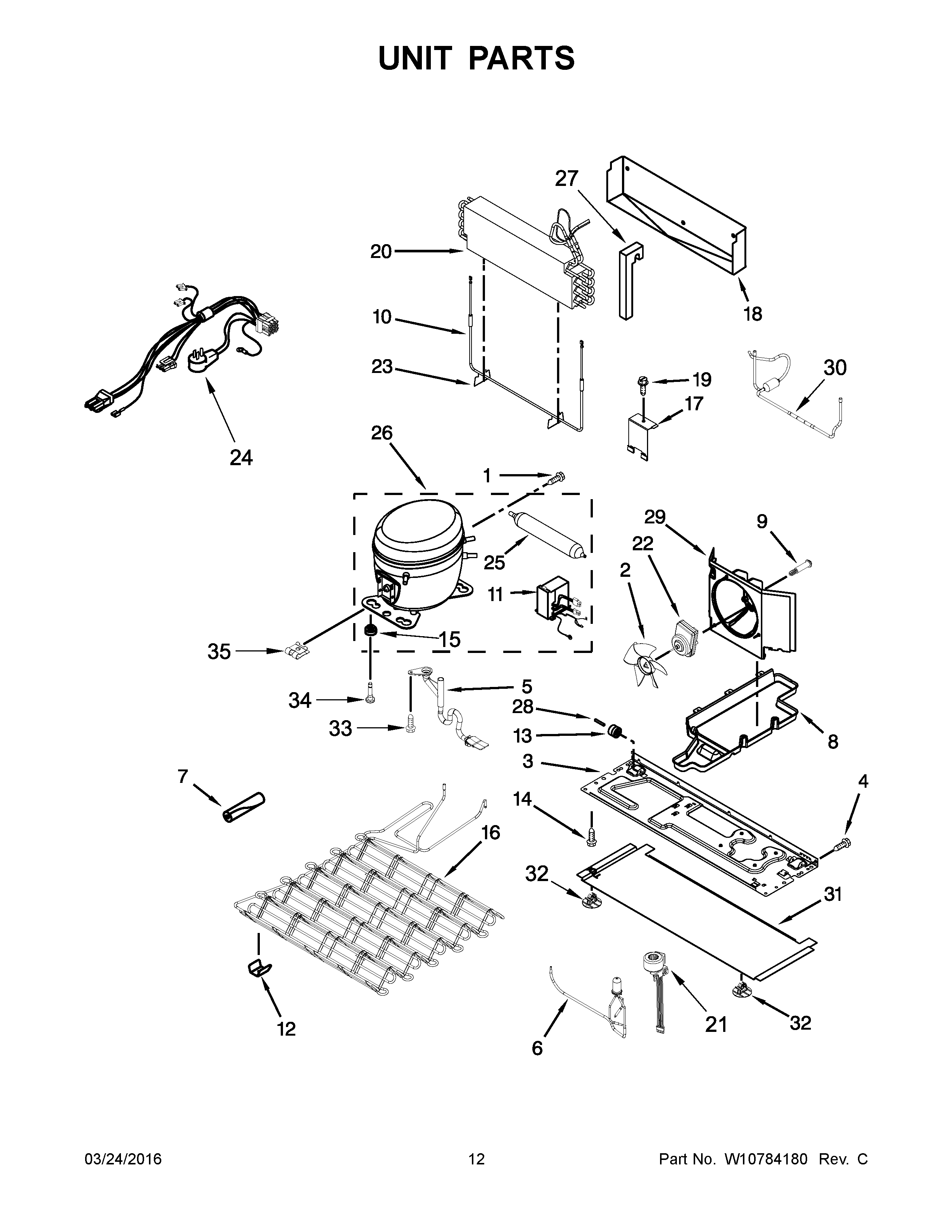

WRV996FDEH00 07 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10141625 Whirlpool Refrigerator Screw Assembly
2	WP2188935 Whirlpool Refrigerator Fan Blade
3	W10603296 Whirlpool Plate
4	67006425 Whirlpool Refrigerator Screw
5	W11745092 Whirlpool Dual Evaporator Drain Extension
6	W11575003 Whirlpool Refrigerator Valve
7	SLEEVE
8	W11225840 Whirlpool Refrigerator Evaporator Tray
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	W11087200 Whirlpool Refrigerator Inverter Box
12	W10683556 Whirlpool Refrigerator Clip
13	WP67005149 Whirlpool Roller
14	Screw
15	W11661108 Whirlpool Grommet
16	W10758093 Whirlpool Refrigerator Condenser
17	W10391376 Whirlpool Bracket Assembly
18	TRAY, DRIP
19	W10142255 Whirlpool Screw
20	WPW10608485 Whirlpool Refrigerator Evaporator
21	W11429989 Whirlpool Refrigerator Solenoid
22	W11127829 Whirlpool Refrigerator Condenser Motor
23	W11673433 Whirlpool Clip
24	W11190822 Whirlpool Refrigerator Wire Harness
25	WPW10143759 Whirlpool Dryer Filter
26	W10779331 Whirlpool Refrigerator Compressor
27	W10491355 Whirlpool Refrigerator Air Gasket
28	67006434 Whirlpool Axle Pin
29	WPW10406719 Whirlpool Refrigerator Shroud
30	WPW10626970 Whirlpool Refrigerator Tube
31	W10278140 Whirlpool Refrigerator Unit Cover
32	W10815861 Whirlpool Refrigerator Clip
33	W10141518 Whirlpool Refrigerator Screw
34	BOLT
35	W10697017 Whirlpool Clip
