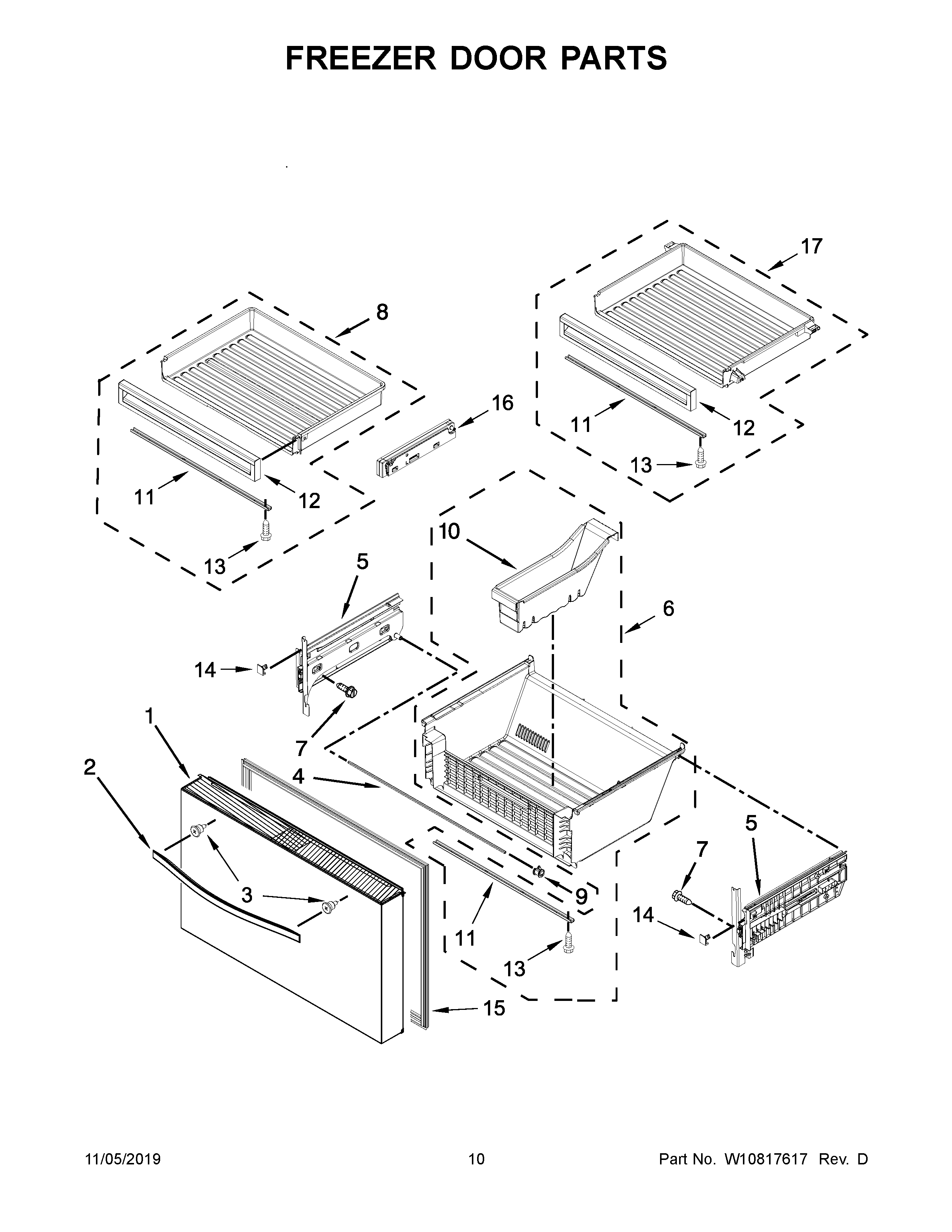

WRV996FDEH01 06 – FREEZER DOOR PARTS

WRV996FDEH01 06 – FREEZER DOOR PARTS

Written by

in

WRV996FDEH01 06 – FREEZER DOOR PARTS

Products

PositionProduct
1BW10815698 Whirlpool Refrigerator Stainless Steel Door Assembly
1W10815697 Whirlpool Refrigerator White Door Assembly
1ADOOR, FREEZER (INCLUDES ITEM 15) (BLACK)
2W10883202 Whirlpool Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WPW10503522 Whirlpool Refrigerator Shaft
5AW11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6W10680631 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8WPW10493169 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11W11677723 Whirlpool Support
12W11175811 Whirlpool Refrigerator Front Panel
13WP489443 Whirlpool Refrigerator Screw
14WPW10485096 Whirlpool Refrigerator Pan Stop
14AWPW10485089 Whirlpool Refrigerator Pan Stop
15BGASKET-FIP GRAY
15W10407215 Whirlpool Door Gasket
15AW10638486 Whirlpool Refrigerator Door Gasket
16AW10858092 Whirlpool Refrigerator Bracket
16BRACKET
17W10858802 Whirlpool Refrigerator Freezer Bin
