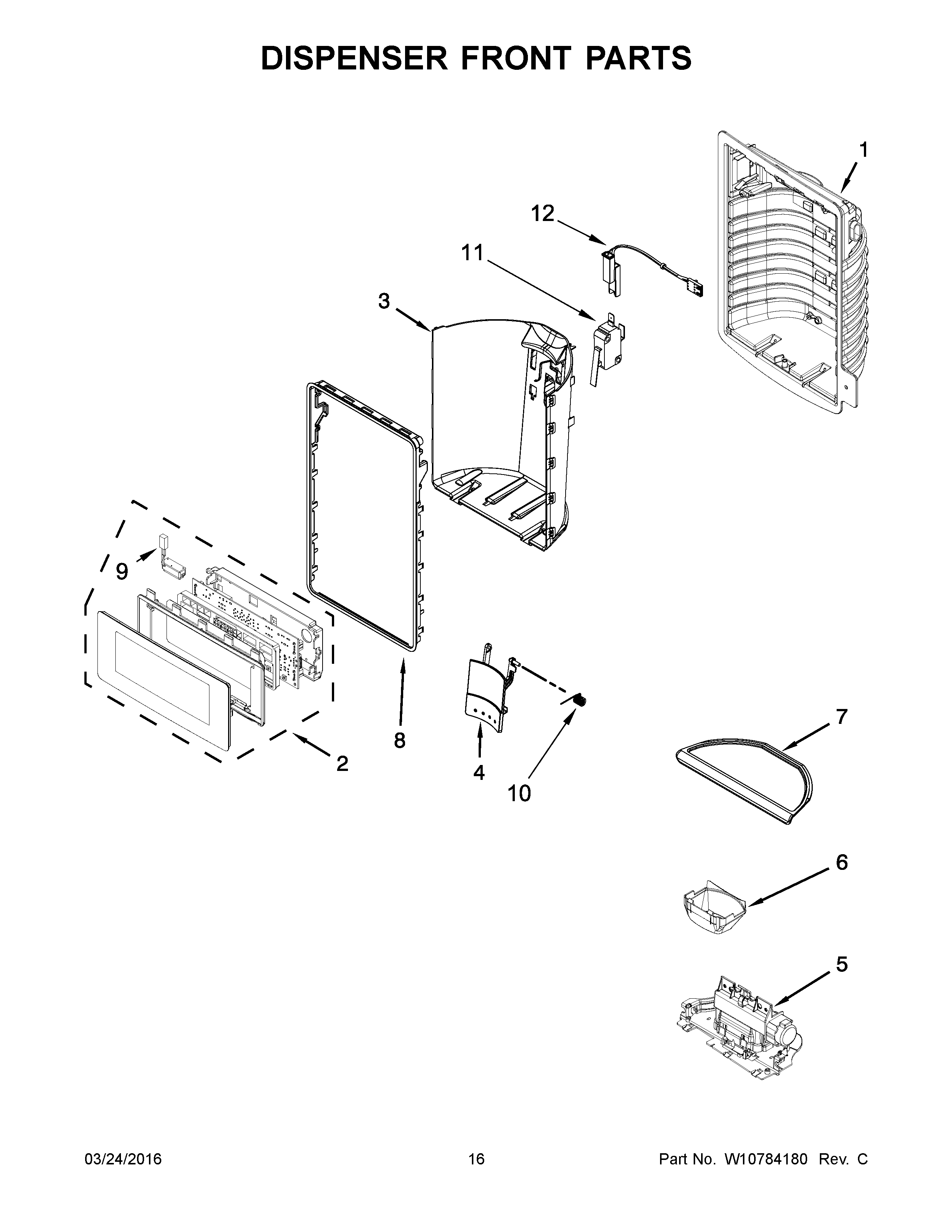

WRV996FDEM00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10779853-includeCORE Whirlpool WPW10779853 Refrigerator Electronic Control Board + Core
2AWPW10677150-includeCORE Whirlpool WPW10677150 Refrigerator Electronic Control Board + Core
3AW10663632 Whirlpool Refrigerator Shield
3WALL, DISPENSER FALSE (SILVER)
4W10673702 Whirlpool Refrigerator Door Pad
5W11122874 Whirlpool Refrigerator Ice Door
6WPW10435760 Whirlpool Refrigerator Ice Guide
7AW10679589 Whirlpool Refrigerator Drip Tray
7W10703847 Whirlpool Drip Tray
8RING, TRIM (CHROME)
9W11290115 Whirlpool Refrigerator Light
10W11109505 Whirlpool Refrigerator Spring
11W11087492 Whirlpool Refrigerator Water Dispenser Switch
12W11238426 Whirlpool Refrigerator Wire Harness
