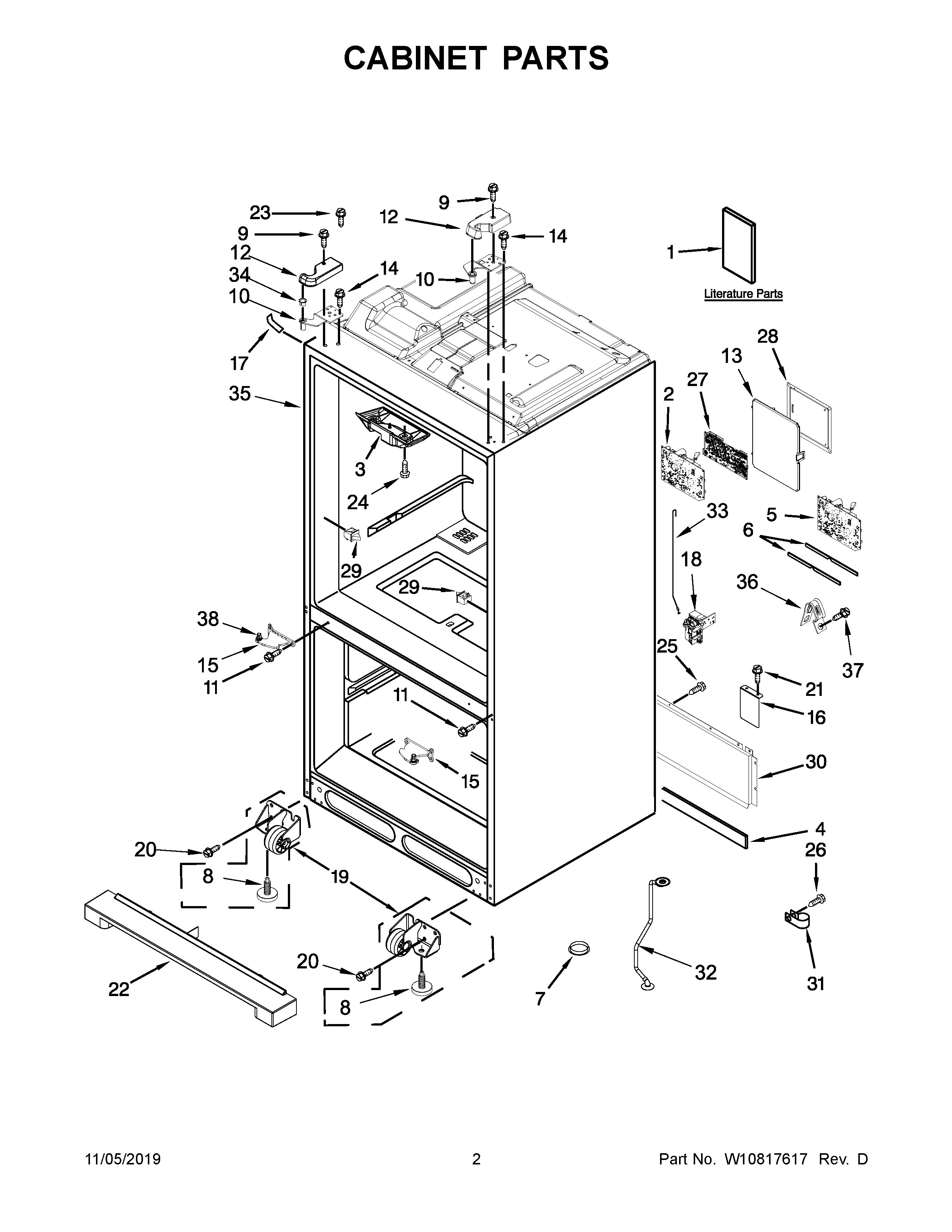

WRV996FDEM01 02 – CABINET PARTS

Products

Position	Product
1B	TECH SHEET, ENERGY GUIDE
1A	TECH SHEET, OWNERS MANUAL
1	TECH SHEET
2	WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
3	W10734554 Whirlpool Refrigerator Block Pivot
4	W10505487 Whirlpool Refrigerator Gasket
5	WPW10675033-includeCORE Whirlpool WPW10675033 Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10A	W11736793 Whirlpool Door Hinge
10	W11027247 Whirlpool Refrigerator Door Hinge
11	W11573362 Whirlpool Screw Assembly
12D	W10709867 Whirlpool Refrigerator Cover
12E	W10709866 Whirlpool Refrigerator Cover
12	COVER, TOP HINGE LEFT HAND (WHITE)
12B	W10725013 Whirlpool Refrigerator Cover
12C	COVER, TOP HINGE RIGHT HAND (WHITE)
12A	COVER, TOP HINGE LEFT HAND (BLACK)
13	W10277839 Whirlpool Refrigerator Cover
14	WPW10308751 Whirlpool Screw
15B	W11122872 Whirlpool Refrigerator Door Hinge
15D	W10691700 Whirlpool Refrigerator Door Hinge
15A	W10691674 Whirlpool Refrigerator Door Hinge
15	W10691676 Whirlpool Refrigerator Door Hinge
15E	W11167119 Whirlpool Refrigerator Door Hinge
15C	HINGE, CENTER RIGHT HAND (WHITE)
16	W10336736 Whirlpool Refrigerator Cover
17	WP12587703AP Whirlpool Refrigerator Filler
17B	12587703W Whirlpool Refrigerator Cover
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W10865826 Whirlpool Refrigerator Water Inlet Valve
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	WP33001882 Whirlpool Screw
22B	W10911309 Whirlpool Toe Kick Plate
22	GRILLE, TOE (WHITE)
22A	W11129933 Whirlpool Refrigerator Front Grille
23	W11214483 Whirlpool Refrigerator Screw
24	W10854958 Whirlpool Refrigerator Screw
26	67006425 Whirlpool Refrigerator Screw
27	W10804160-includeCORE Whirlpool W10804160 Refrigerator Electronic Control Board + Core
28	W10754591 Whirlpool Refrigerator Cover
29	W11396033 Whirlpool Refrigerator Rocker Switch
30	COVER, UNIT
31	W11456069 Whirlpool Refrigerator Clamp
32	TUBE, DRAIN
33	W11209890 Whirlpool Refrigerator Water Tube
34	W10705239 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICEABLE PART)
36	549193 Whirlpool Refrigerator Power Clamp
37	SCREW
38	COUPLER, DOOR
