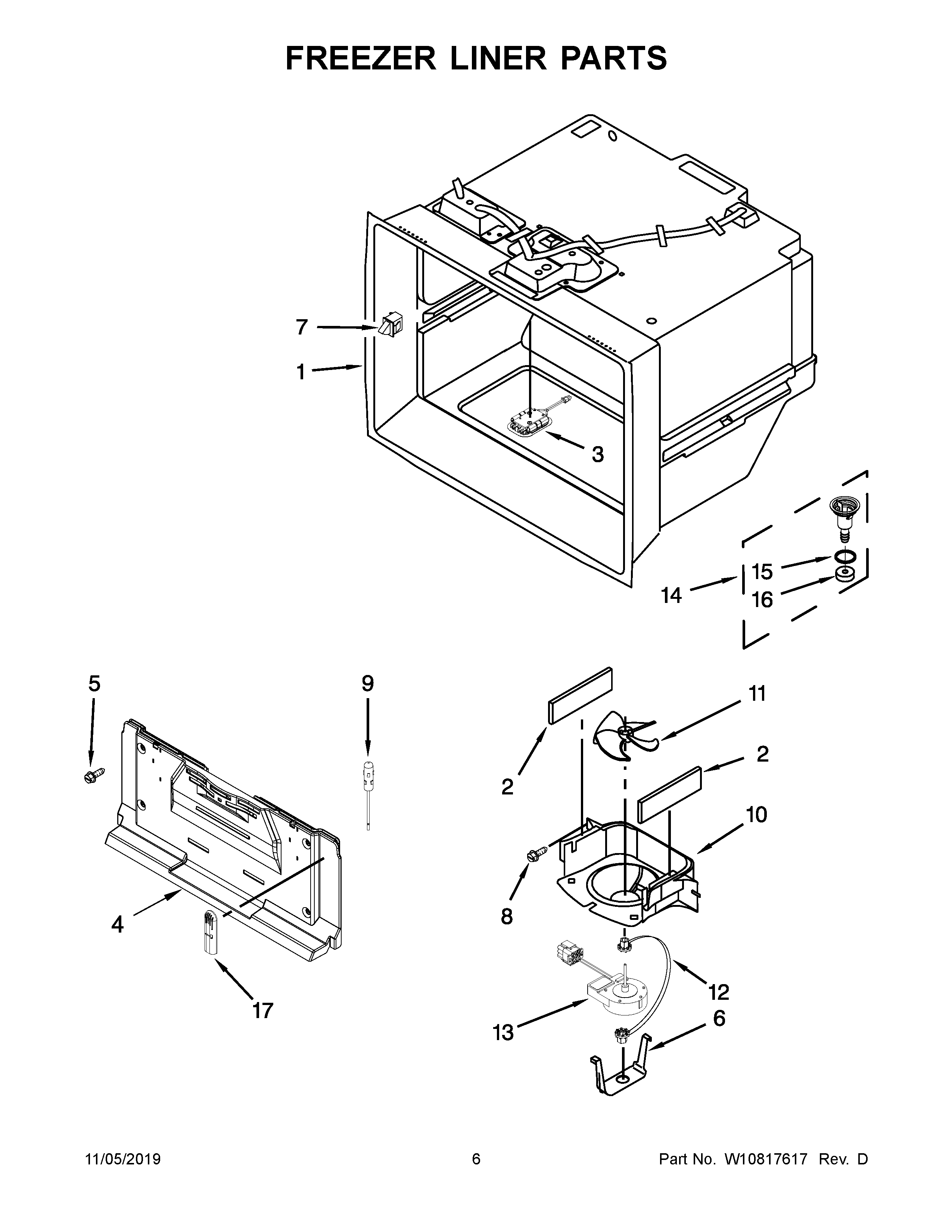

WRV996FDEM01 04 – FREEZER LINER PARTS

WRV996FDEM01 04 – FREEZER LINER PARTS

Written by

in

WRV996FDEM01 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3MODULE
4W11690163 Whirlpool Refrigerator Evaporator Cover
5WP488163 Whirlpool Refrigerator Screw
6W11712696 Whirlpool Clip
7W11384469 Whirlpool Door Switch
8WP98165 Whirlpool Screw
9THERMISTOR
10WPW10363507 Whirlpool Refrigerator Shroud
11WP67006337 Whirlpool Refrigerator Fan Blade
12W11676465 Whirlpool Grommet
13W11109595 Whirlpool Refrigerator Evaporator Motor
14W10503218 Whirlpool Refrigerator Funnel
15WPM0500703 Whirlpool Refrigerator O-Ring Seal
16WPB8381501 Whirlpool Refrigerator Door Gasket
17W10698555 Whirlpool Refrigerator Cover
