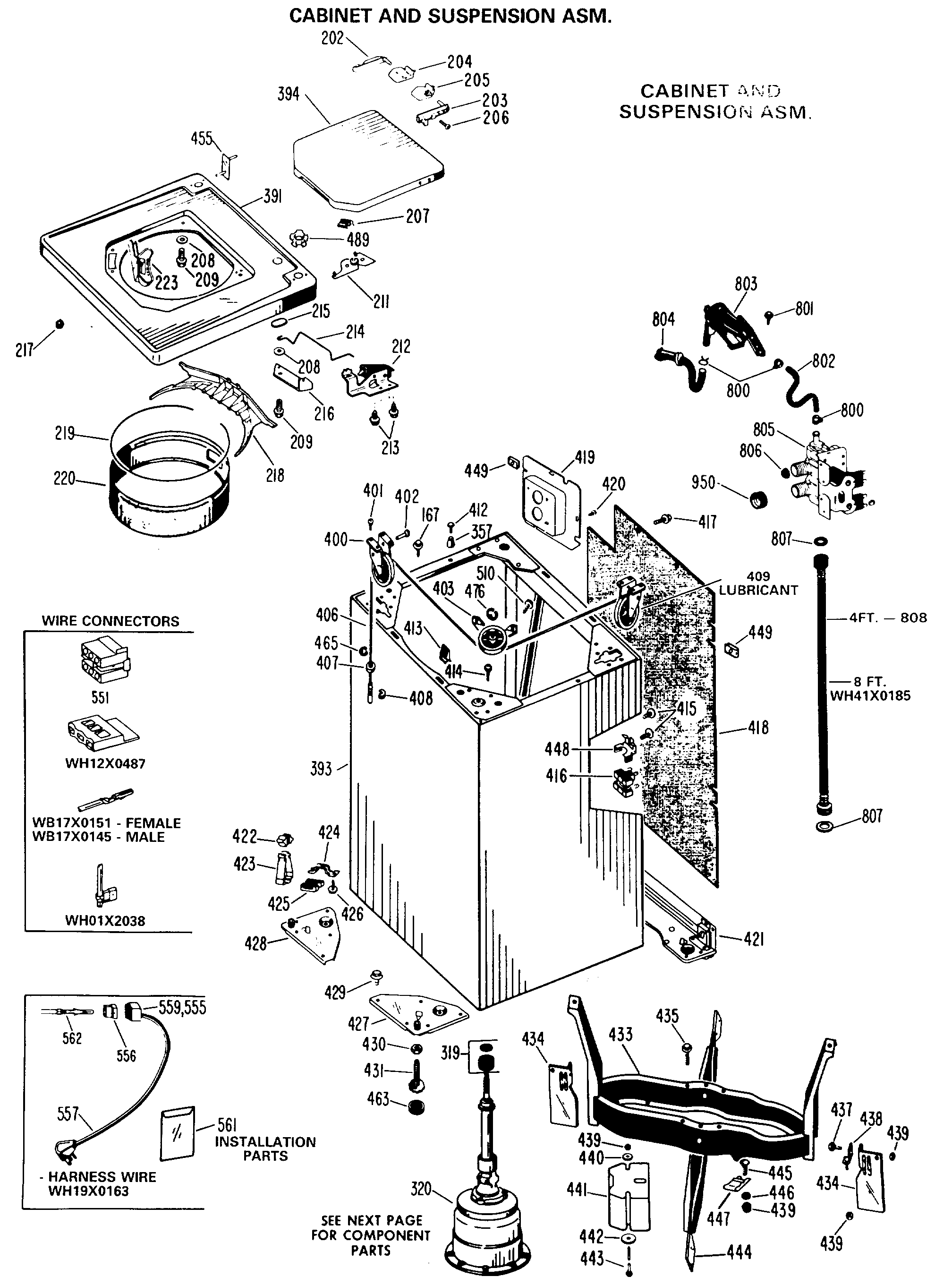

WRW3505KBL CABINET AND SUSPENSION ASM.

WRW3505KBL CABINET AND SUSPENSION ASM.

Written by

in

WRW3505KBL CABINET AND SUSPENSION ASM.

Products

Position	Product
167	GEN WE02X0186
202	GEN WH01X2085
203	GEN WH01X2222
204	PAD-HINGE L.H.
205	PAD-HINGE R.H.
206	SCR 8-18 B RT 1/2 SS
207	GEN WH01X1654
208	GEN WH01X2088
209	SCR 1/4-14 HX 3/4 S
211	GEN WE01X0553
212	GEN WH12X0494
213	WZ4X345D GE Screw Package 12 C92
214	GEN WH01X2090
215	GEN WH01X2089
216	GEN WH16X0376
217	BUMPER LID
218	GEN WH16X0413
219	GEN WH16X0370
220	GEN WH08X0312
223	SPOUT-BLEACH AD
223	SPOUT-BLEACH HA
223	GEN WH01X2054
319	GEN WH01X1986
320	TRANSMISSION ASM LG CAP
357	STOP-COVER
391	COVER ASM FA
391	GEN WH44X0901
391	GEN WH44X0984
393	GEN WH46X0195
393	GEN WH46X0172
393	GEN WH46X0198
394	GEN WH44X0525
394	LID AD
394	GEN WH44X0979
400	GEN WH07X0040
401	GEN WH02X0940
402	GEN WH01X1633
403	GEN WH07X0041
406	GEN WH16X0379
407	GEN WH01X2081
407	GEN WH01X2082
408	RETAINER SEAT
409	GEN WL39X0003
412	GEN BUY-LOCAL
413	CLIP-COVER
414	SCR 12-14 B HX 3/4 S
416	GEN WH12X0235
417	GEN WH02X0694
418	GEN WH44X1134
419	GEN WH16X0483
420	GEN WH02X0893
421	GEN WH46X0188
422	PAD FRICTION
423	GEN WH01X1951
424	GEN WH01X1862
425	GEN WH01X1953
426	SCR 14-10 A HX 3/4 S
427	GEN WH46X0181
428	GEN WH46X0182
429	GEN WH02X0795
430	GEN WZ07X0040
431	GEN WH01X0209
433	GEN WH17X0087
434	GEN WH16X0369
435	GEN WH02X1121
439	NUT
440	GEN WH02X0810
441	GEN WH01X2057
442	GEN WH02X0811
444	GEN WH16X0368
446	GEN WE02X0279
447	GEN WH02X0801
448	GEN WH01X1998
449	GEN WH02X0896
455	STRAP-COVER
463	WH1X484 GE Rubber Foot Pad
465	RING E
476	RING-E
489	GEN WH01X2572
510	WE2X263D GE Screw Package 12 C92
556	GEN WH12X0497
557	GEN WH19X0225
561	GEN WH49X0272
562	GEN WB17X5054
800	WH1X2036 GE UNIX Clamp
801	GEN WD02X5063
802	GEN WH41X0099
803	GEN WH41X0132
804	GEN WH41X0170
805	WH13X81 GE Washer Water Inlet Valve
806	GEN WH01X1400
807	WH2X42D GE Washer Pack of 12
950	CAP WATER VALVE
