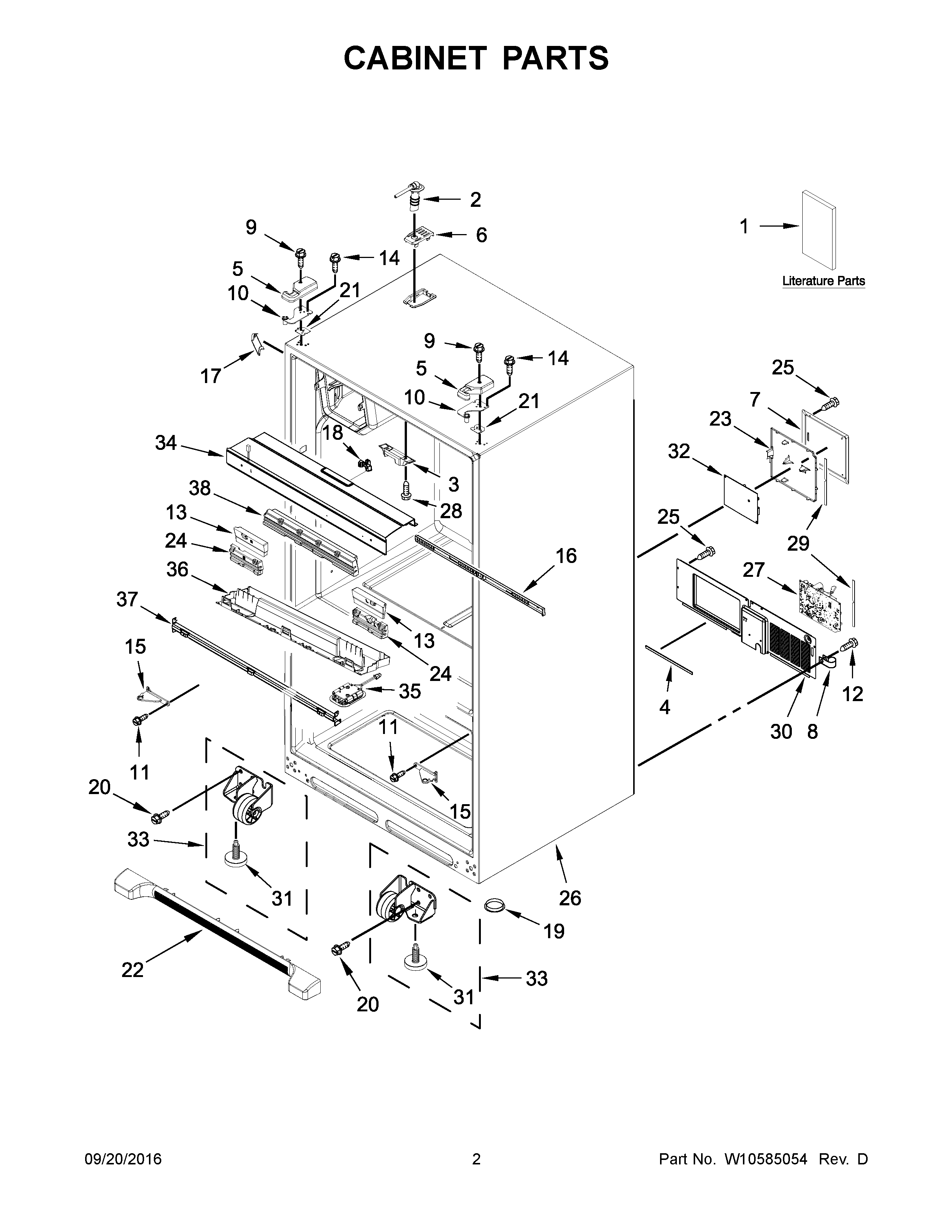

WRX735SDBE00 02 – CABINET PARTS

WRX735SDBE00 02 – CABINET PARTS

Written by

in

WRX735SDBE00 02 – CABINET PARTS

Products

PositionProduct
1AUSE & CARE GUIDE
1BENERGY GUIDE
1TECH SHEET
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10337634 Whirlpool Refrigerator Cover
5AW10337647 Whirlpool Refrigerator Cover
5C67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5EWPW10191117 Whirlpool Refrigerator Cover
5DWP67005956 Whirlpool Refrigerator Cover
5BWPW10337648 Whirlpool Refrigerator Cover
6BW10191141 Whirlpool Refrigerator Tube Cover
6A12981401B Whirlpool Refrigerator Filtration Cover
612981401W Whirlpool Refrigerator Cover Filter
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10AW11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11WPW10109200 Whirlpool Screw
1267006425 Whirlpool Refrigerator Screw
13WEDGE, SPACER (LEFT HAND & RIGHT HAND)
14WP489349 Whirlpool Refrigerator Screw
15DW10918168 Whirlpool Refrigerator Door Hinge
15CW10918117 Whirlpool Refrigerator Door Hinge
15AW10918166 Whirlpool Refrigerator Door Hinge
15W10918115 Whirlpool Refrigerator Door Hinge
15BW10917988 Whirlpool Refrigerator Door Hinge
16W10367522 Whirlpool Refrigerator Slide
17BWP12587703AP Whirlpool Refrigerator Filler
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18W10827867 Whirlpool Refrigerator Knob
19A3076901 Whirlpool Refrigerator Plug
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22AWPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22BWPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22WPW10534154 Whirlpool Refrigerator Front Grille
23W10296541 Whirlpool Refrigerator Wire Cover
24W10316401 Whirlpool Refrigerator Insulation
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
27WPW10226427 Whirlpool Refrigerator Electronic Control Board
28W10854958 Whirlpool Refrigerator Screw
29GASKET, HV BOX
30WPW10270394 Whirlpool Refrigerator Back Cover
31WPW10141622 Whirlpool Leveler
32W11035835-includeCORE Whirlpool W11035835 Refrigerator Electronic Control Board + Core
33WPW10515763 Whirlpool Refrigerator Cabinet Roller
33AWPW10515762 Whirlpool Refrigerator Cabinet Roller
34BW10877493 Whirlpool Refrigerator Mullion Rail
34W10877453 Whirlpool Mullion Rail
34AW10877456 Whirlpool Mullion Rail
35MODULE
36W10877249 Whirlpool Refrigerator Housing
37W10492234 Whirlpool Refrigerator Brace
38W10311721 Whirlpool Refrigerator Insulation
