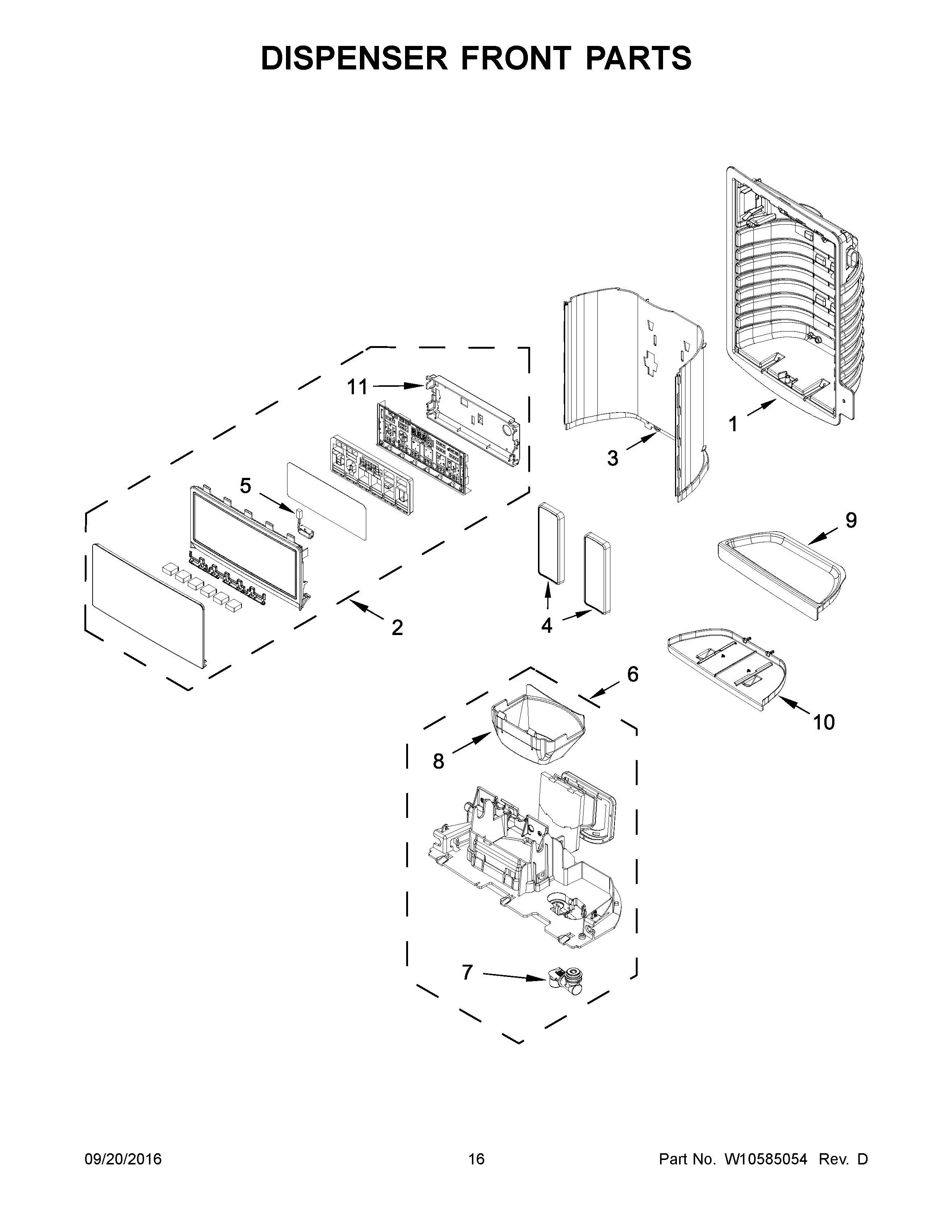

WRX735SDBE00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10521642-includeCORE Whirlpool WPW10521642 Refrigerator Electronic Control Board + Core
3AW11045976 Whirlpool Refrigerator Shield
3W11045975 Whirlpool Refrigerator Shield
3BW11045978 Whirlpool Refrigerator Shield
4AW11661207 Whirlpool Pad Assembly
4W10353846 Whirlpool Refrigerator Pad
4BWPW10353848 Whirlpool Refrigerator Pad
5W11290115 Whirlpool Refrigerator Light
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8WPW10435760 Whirlpool Refrigerator Ice Guide
9W11045970 Whirlpool Refrigerator Drip Tray
9BW11192301 Whirlpool Refrigerator Drip Tray
9AW11045971 Whirlpool Refrigerator Drip Tray
10W10267860 Whirlpool Refrigerator Drip Tray
10AW10267861 Whirlpool Refrigerator Drip Tray
10BWPW10267863 Whirlpool Refrigerator Drip Tray
11W10254277 Whirlpool Cover Assembly
