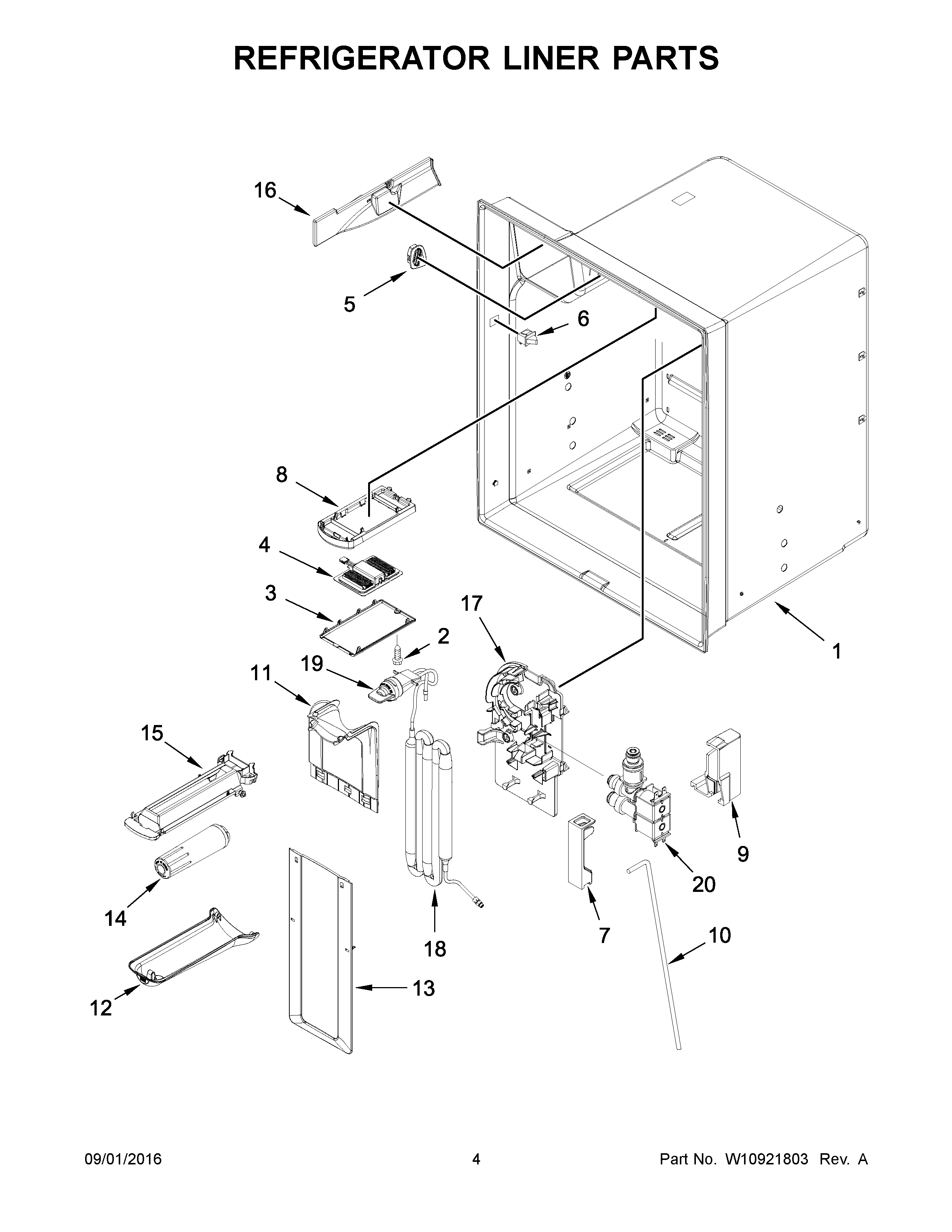

WRX735SDBE01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP3400065 Whirlpool Refrigerator Screw
3	W10311756 Whirlpool Refrigerator Light Lens
4	W11125428 Whirlpool Electronic Control Board + Core
5	W10555984 Whirlpool Refrigerator Grille
6	W11396033 Whirlpool Refrigerator Rocker Switch
7	W10118194 Whirlpool Refrigerator Cover
8	W11684721 Whirlpool Housing Assembly
9	W10118193 Whirlpool Refrigerator Cover
10	WPW10444033 Whirlpool Refrigerator Water Tube
11	12960101 Whirlpool Refrigerator Cover
12	WP67006331 Whirlpool Refrigerator Water Filter Cover
13	67006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
15	67006325 Whirlpool Filter Base Bracket
16	WPW10309869 Whirlpool Refrigerator Cover
17	WPW10334463 Whirlpool Refrigerator Bracket
18	RESERVOIR
19	W11395888 Whirlpool Refrigerator Bypass Filter Cap
20	WPW10349187 Whirlpool Water Valve
