WRX735SDBE02 02 – CABINET PARTS

WRX735SDBE02 02 – CABINET PARTS

Written by

in

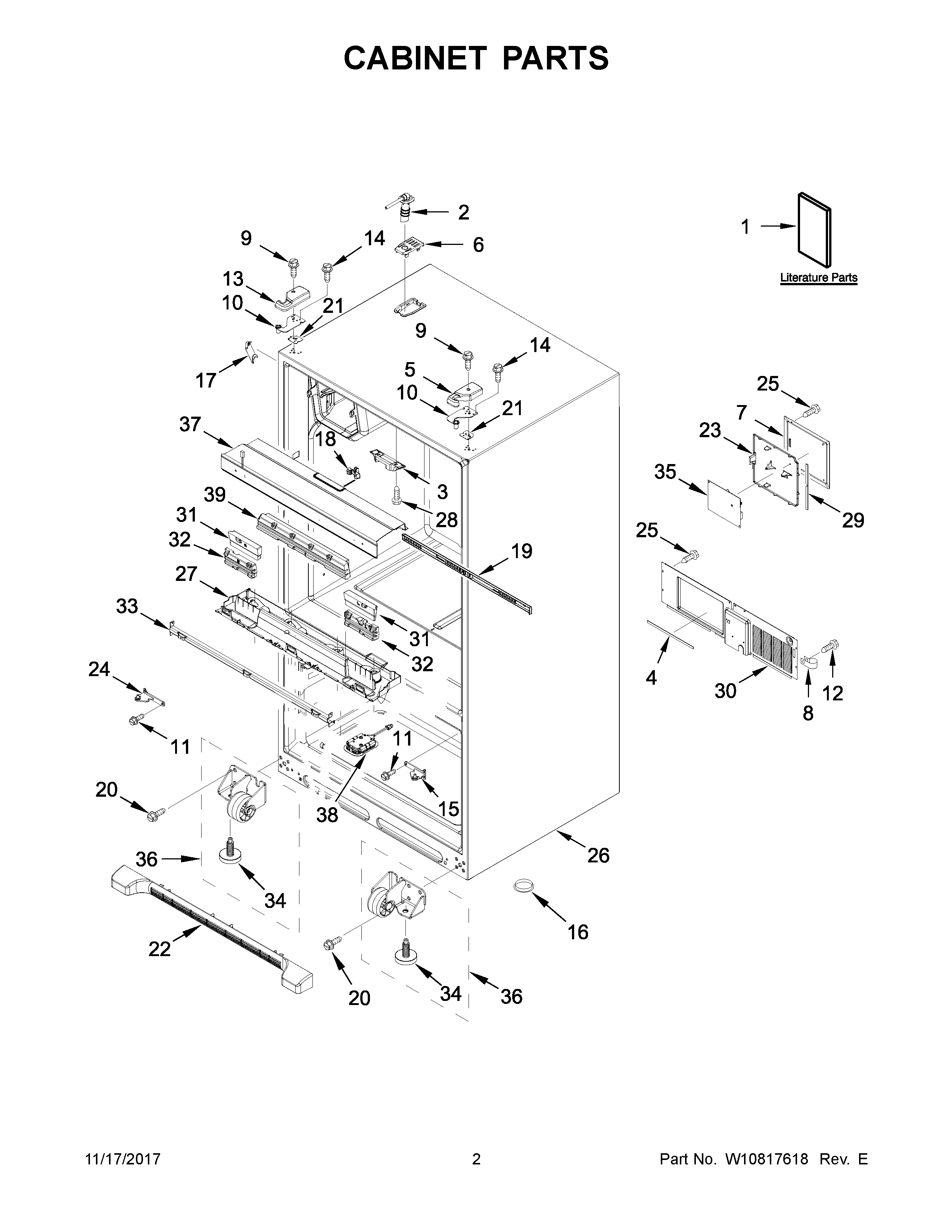

WRX735SDBE02 02 – CABINET PARTS

Products

PositionProduct
1AUSE & CARE GUIDE
1TECH SHEET
1BENERGY GUIDE
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5AWP67005956 Whirlpool Refrigerator Cover
612981401W Whirlpool Refrigerator Cover Filter
6A12981401B Whirlpool Refrigerator Filtration Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11WPW10109200 Whirlpool Screw
1267006425 Whirlpool Refrigerator Screw
13AW10337647 Whirlpool Refrigerator Cover
13WPW10337634 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10918117 Whirlpool Refrigerator Door Hinge
15AW10918168 Whirlpool Refrigerator Door Hinge
16A3076901 Whirlpool Refrigerator Plug
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18W10827867 Whirlpool Refrigerator Knob
19W10367522 Whirlpool Refrigerator Slide
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22AWPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
23W10296541 Whirlpool Refrigerator Wire Cover
24W10918115 Whirlpool Refrigerator Door Hinge
24AW10918166 Whirlpool Refrigerator Door Hinge
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
27W10877249 Whirlpool Refrigerator Housing
28W11693756 Whirlpool Screw Assembly
29W10914798 Whirlpool Gasket
30WPW10270394 Whirlpool Refrigerator Back Cover
31WEDGE, SPACER (LEFT HAND & RIGHT HAND)
32W10316401 Whirlpool Refrigerator Insulation
33W10492234 Whirlpool Refrigerator Brace
34WPW10141622 Whirlpool Leveler
35W11043763 Whirlpool Refrigerator Electronic Control Board
36WPW10515763 Whirlpool Refrigerator Cabinet Roller
36AWPW10515762 Whirlpool Refrigerator Cabinet Roller
37W11032129 Whirlpool Refrigerator Mullion Rail
37AWPL W10902087
38MODULE
39W10311721 Whirlpool Refrigerator Insulation
