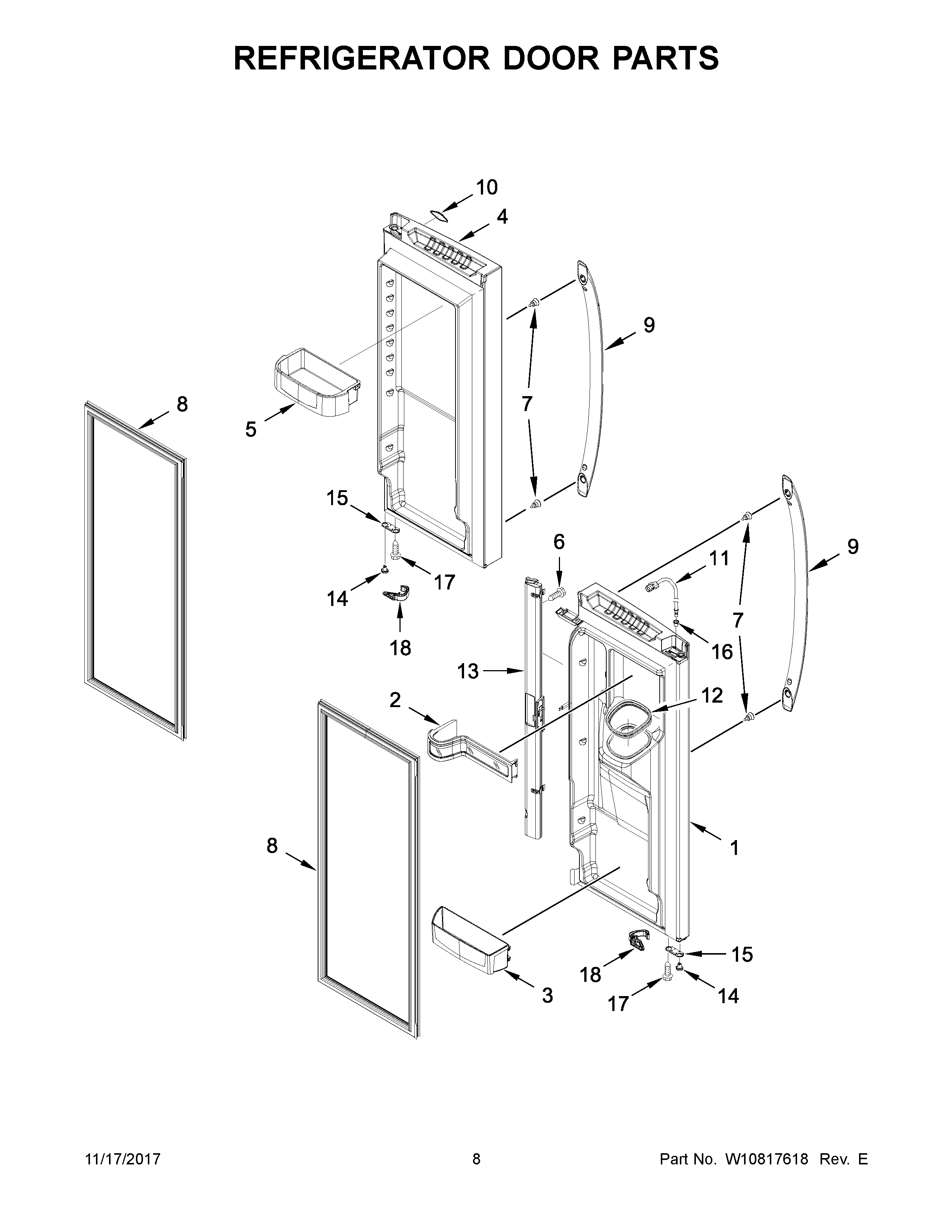

WRX735SDBE02 05 – REFRIGERATOR DOOR PARTS

WRX735SDBE02 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX735SDBE02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1A13107323BQ Whirlpool Refrigerator Black Foam In Place Doorack
113107323WQ Whirlpool Refrigerator DOR-FIP White
2WPW10323808 Whirlpool Refrigerator Cantilever Bin
3WPW10212139 Whirlpool Refrigerator Door Shelf Bin
413107319WQ Whirlpool Refrigerator DOR-FIP White
4A13107319BQ Whirlpool Refrigerator Foam In Place Door
5WPW10224961 Whirlpool Refrigerator Door Shelf Bin
667006425 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8W10830276 Whirlpool Refrigerator Door FIP Gasket
8AW10830277 Whirlpool Refrigerator FIP Gasket
9W11459378 Whirlpool Refrigerator Handle
10W11223753 Whirlpool Refrigerator Nameplate
11WPW10511930 Whirlpool Refrigerator Water Tube
12WPW10287601 Whirlpool Seal
13MULLION, DOOR (WHITE)
13AW10311758 Whirlpool Refrigerator Mullion Rail
14AWP67003639 Whirlpool Refrigerator Closer
14WP67003638 Whirlpool Closing Cam
15AW11708403 Whirlpool Door Stop
1512968202W Whirlpool Refrigerator Door Stop
1612996601 Whirlpool Refrigerator Bushing Clip
17WP98165 Whirlpool Screw
18BW10918120 Whirlpool Refrigerator Closer
18CW10918171 Whirlpool Refrigerator Closer
18W10918118 Whirlpool Refrigerator Door Closer
18AW10918170 Whirlpool Refrigerator Closer
