WRX735SDBH02 08 – SHELF PARTS

WRX735SDBH02 08 – SHELF PARTS

Written by

in

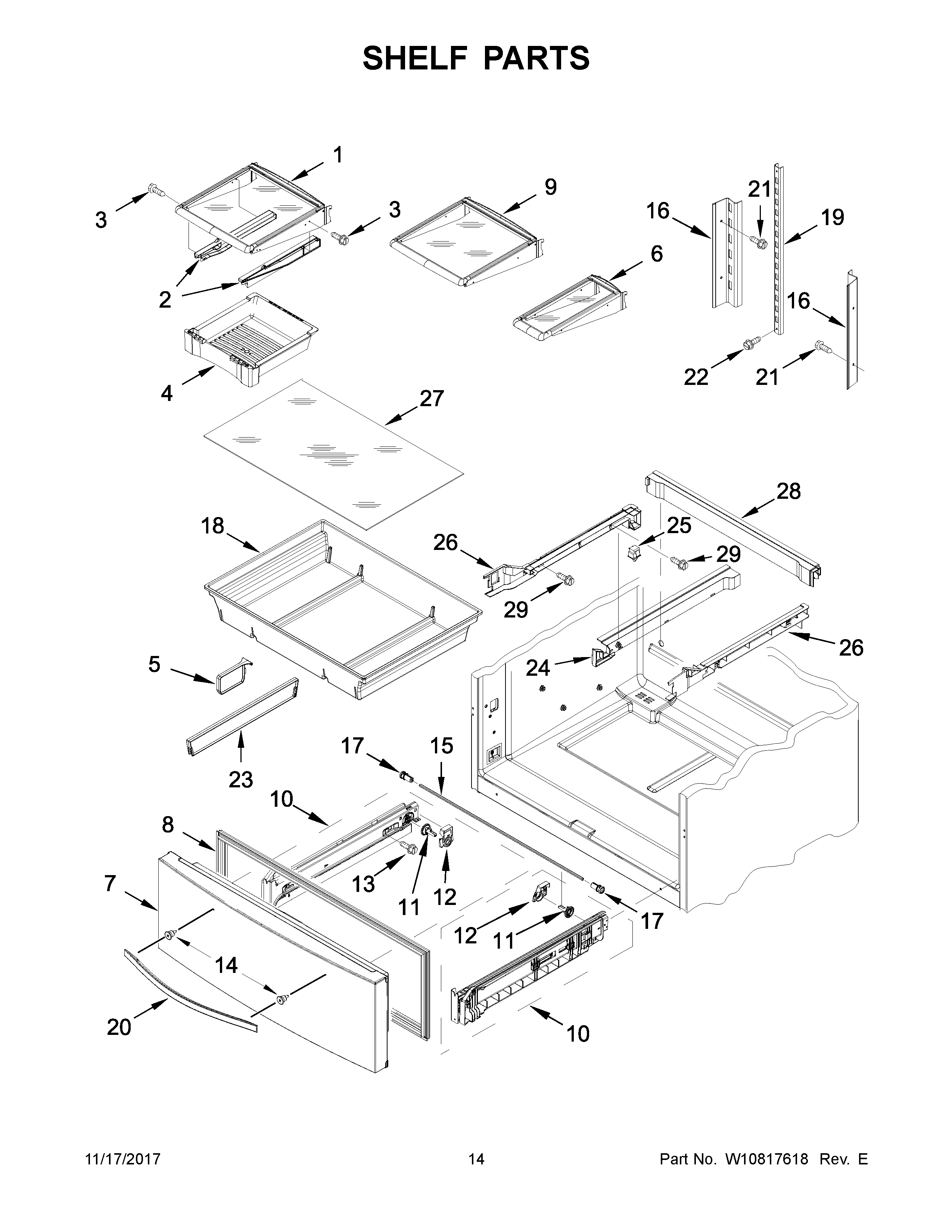

WRX735SDBH02 08 – SHELF PARTS

Products

PositionProduct
1WP12883508SP Whirlpool Refrigerator Glass Shelf
2AWPW10194032 Whirlpool Refrigerator Glide
2WPW10194031 Whirlpool Refrigerator Glide
3SCREW
4WPW10319333 Whirlpool Refrigerator Snack Pan
5W10818645 Whirlpool Refrigerator Divider
6W11197490 Whirlpool Refrigerator Cantilever Shelf
713107112WQ Whirlpool Refrigerator DOR-FIP WH
7A13107112BQ Whirlpool Refrigerator Black Foam In Place Door
8AW11625002 Whirlpool Refrigerator FIP Gasket
8W10443325 Whirlpool Refrigerator FIP Gasket
9W11402525 Whirlpool Glass Shelf
10W11093713 Whirlpool Refrigerator Adapter
10AW11093714 Whirlpool Refrigerator Adapter
11GEAR, SPUR
12AW10294414 Whirlpool Refrigerator Cover
12W10284709 Whirlpool Refrigerator Cover
13WPW10272364 Whirlpool Refrigerator Screw
14WPW10661886 Whirlpool Refrigerator Door Handle Screw
15W10802341 Whirlpool Refrigerator Shaft
16AW10251965 Whirlpool Refrigerator Ladder
16W10251968 Whirlpool Ladder
17WPW10277361 Whirlpool Refrigerator Collar
18W11483068 Whirlpool Refrigerator Utility Pan
19W10273464 Whirlpool Refrigerator Ladder
20W10827046 Whirlpool Door Handle
2167006425 Whirlpool Refrigerator Screw
22WP67006415 Whirlpool Refrigerator Screw
23W11340457 Whirlpool Refrigerator Divider Assembly
24W10311725 Whirlpool Refrigerator Cover
25W11291138 Whirlpool Refrigerator Door Switch
26W10311723 Whirlpool Refrigerator Rail
26AW11715934 Whirlpool Rail
27WPW10296571 Whirlpool Glass Shelf Assembly
28RAIL, REAR PANTRY
29WP98165 Whirlpool Screw
