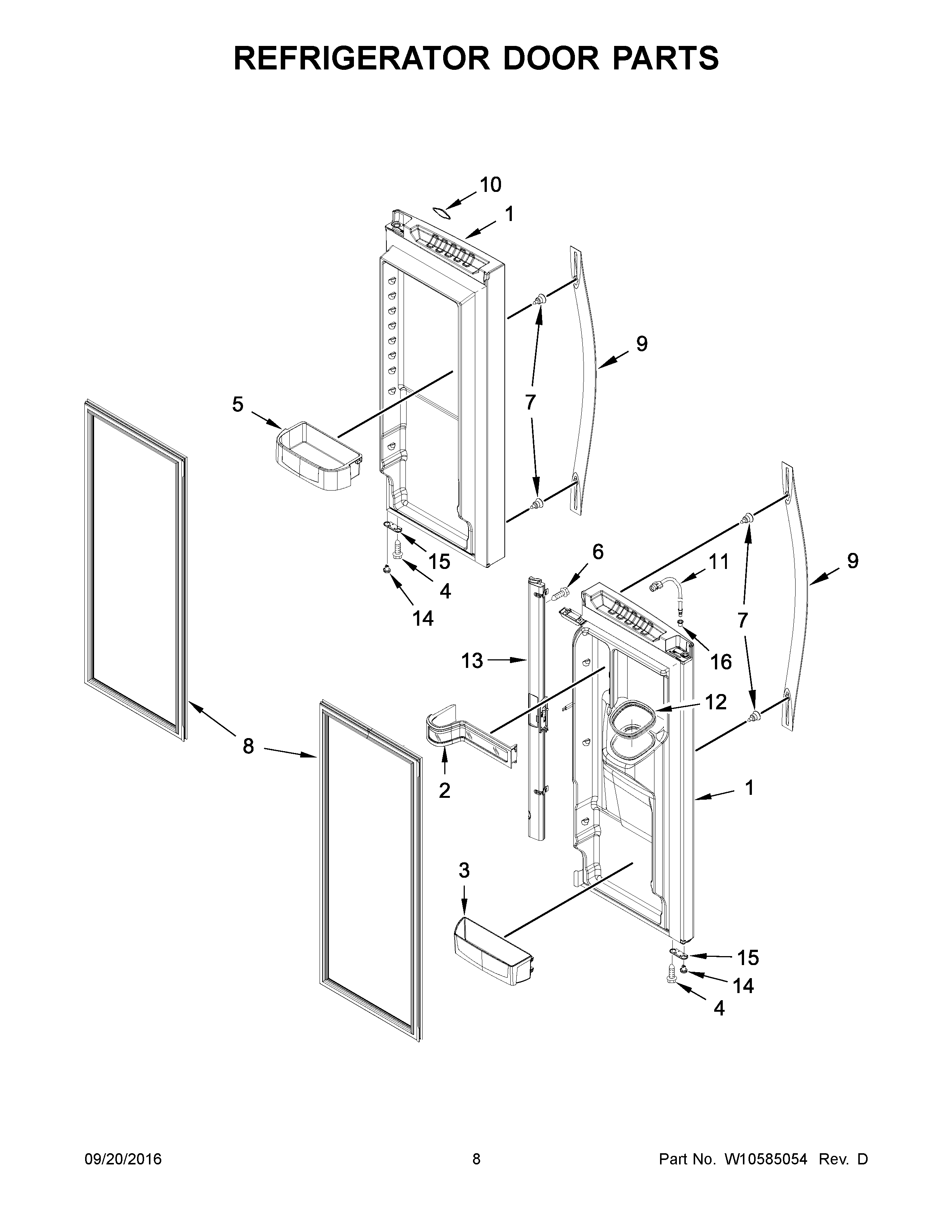

WRX735SDBM00 05 – REFRIGERATOR DOOR PARTS

WRX735SDBM00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX735SDBM00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1B13107324SQ Whirlpool Refrigerator DOR-FIP SS
113107323WQ Whirlpool Refrigerator DOR-FIP White
1A13107323BQ Whirlpool Refrigerator Black Foam In Place Doorack
1C13107319WQ Whirlpool Refrigerator DOR-FIP White
1E13107319SQ Whirlpool Refrigerator DOR-FIP SS
1D13107319BQ Whirlpool Refrigerator Foam In Place Door
2WPW10323808 Whirlpool Refrigerator Cantilever Bin
3WPW10212139 Whirlpool Refrigerator Door Shelf Bin
4WP98165 Whirlpool Screw
5WPW10224961 Whirlpool Refrigerator Door Shelf Bin
667006425 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8AW10830277 Whirlpool Refrigerator FIP Gasket
8W10830276 Whirlpool Refrigerator Door FIP Gasket
8BW10830274 Whirlpool Door Gasket
9W11459378 Whirlpool Refrigerator Handle
10AWPW10393265 Whirlpool Refrigerator Nameplate
10WPW10391355 Whirlpool Refrigerator Nameplate
11WPW10511930 Whirlpool Refrigerator Water Tube
12WPW10287601 Whirlpool Seal
13BWPW10311757 Whirlpool Door Guide
13MULLION, DOOR (WHITE)
13AW10311758 Whirlpool Refrigerator Mullion Rail
14BWP12028505AP Whirlpool Closing Cam
14WP67003638 Whirlpool Closing Cam
14AWP67003639 Whirlpool Refrigerator Closer
15BW11703060 Whirlpool Door Stop
1512968202W Whirlpool Refrigerator Door Stop
15AW11708403 Whirlpool Door Stop
1612996601 Whirlpool Refrigerator Bushing Clip
