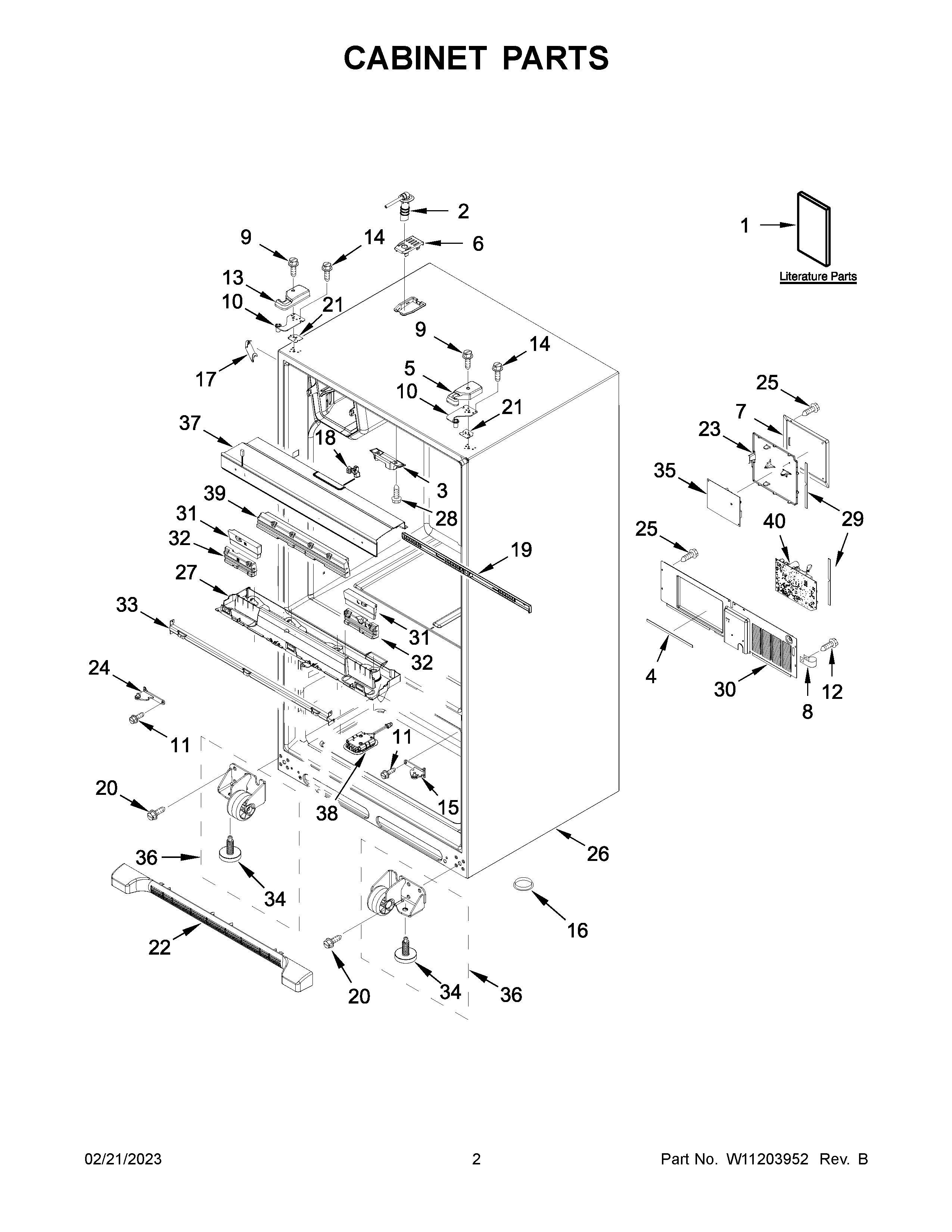

WRX735SDBM02 02 – CABINET PARTS

WRX735SDBM02 02 – CABINET PARTS

Written by

in

WRX735SDBM02 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1AUSE & CARE GUIDE
1TECH SHEET
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10191117 Whirlpool Refrigerator Cover
6W10191141 Whirlpool Refrigerator Tube Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10AW11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11WPW10109200 Whirlpool Screw
1267006425 Whirlpool Refrigerator Screw
13WPW10337648 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15HINGE-DOOR
16A3076901 Whirlpool Refrigerator Plug
17WP12587703AP Whirlpool Refrigerator Filler
18W10827867 Whirlpool Refrigerator Knob
19W10367522 Whirlpool Refrigerator Slide
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10296541 Whirlpool Refrigerator Wire Cover
24W10917991 Whirlpool Refrigerator Door Hinge
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
27W10877249 Whirlpool Refrigerator Housing
28W11693756 Whirlpool Screw Assembly
29GASKET, HV BOX
30WPW10270394 Whirlpool Refrigerator Back Cover
31WEDGE, SPACER (LEFT HAND & RIGHT HAND)
32W10316401 Whirlpool Refrigerator Insulation
33W10492234 Whirlpool Refrigerator Brace
34WPW10141622 Whirlpool Leveler
35W11035835-includeCORE Whirlpool W11035835 Refrigerator Electronic Control Board + Core
36WPW10515763 Whirlpool Refrigerator Cabinet Roller
36AWPW10515762 Whirlpool Refrigerator Cabinet Roller
37W10877493 Whirlpool Refrigerator Mullion Rail
38MODULE
39W10311721 Whirlpool Refrigerator Insulation
40WPW10226427 Whirlpool Refrigerator Electronic Control Board
