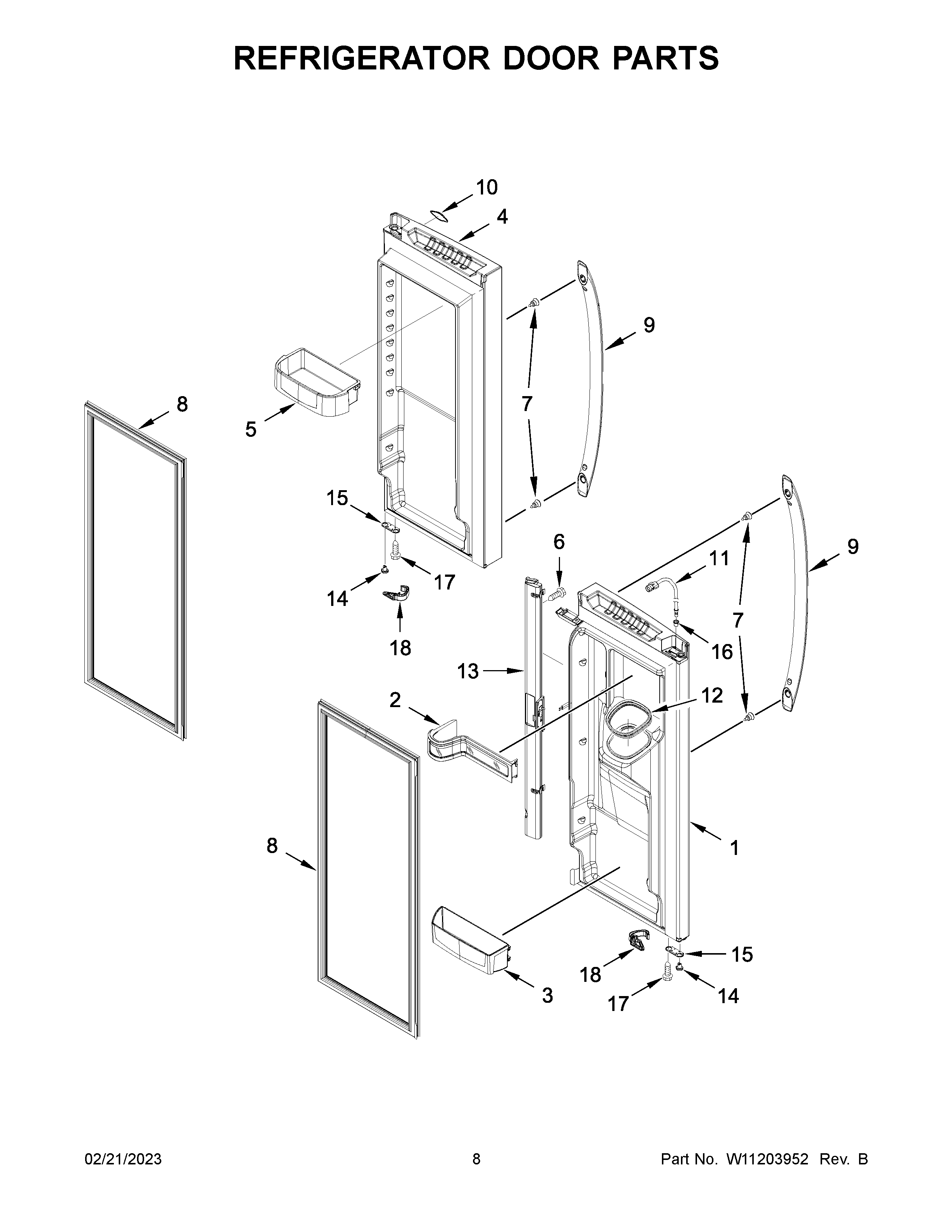

WRX735SDBM02 05 – REFRIGERATOR DOOR PARTS

WRX735SDBM02 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX735SDBM02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107324SQ Whirlpool Refrigerator DOR-FIP SS
2WPW10323808 Whirlpool Refrigerator Cantilever Bin
3WPW10212139 Whirlpool Refrigerator Door Shelf Bin
413107319SQ Whirlpool Refrigerator DOR-FIP SS
5WPW10224961 Whirlpool Refrigerator Door Shelf Bin
667006425 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8W10830274 Whirlpool Door Gasket
9W11459378 Whirlpool Refrigerator Handle
10W11223753 Whirlpool Refrigerator Nameplate
11WPW10511930 Whirlpool Refrigerator Water Tube
12WPW10287601 Whirlpool Seal
13WPW10311757 Whirlpool Door Guide
14WP12028505AP Whirlpool Closing Cam
15W11703060 Whirlpool Door Stop
1612996601 Whirlpool Refrigerator Bushing Clip
17WP98165 Whirlpool Screw
18AW10918010 Whirlpool Refrigerator Closer
18W10918008 Whirlpool Refrigerator Closer
