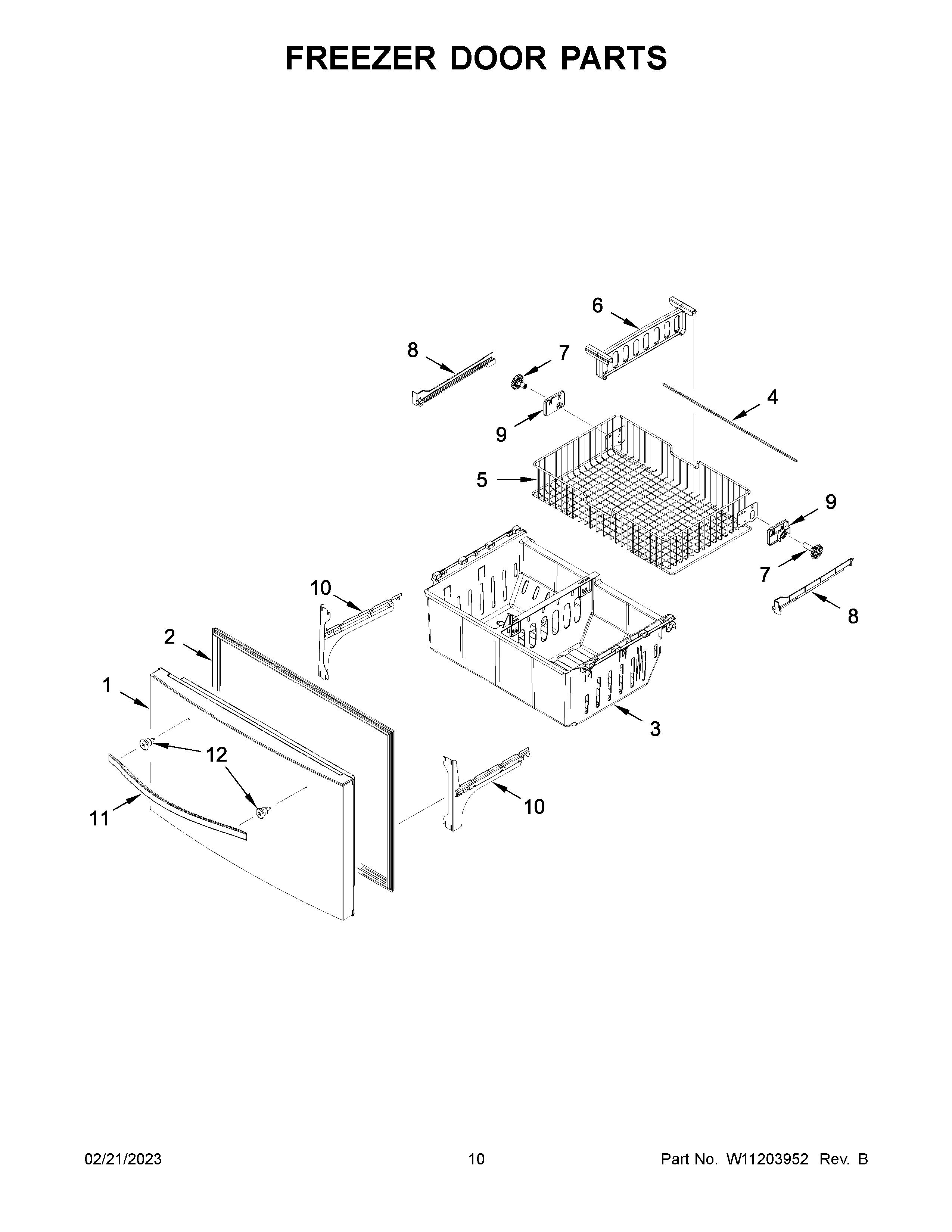

WRX735SDBM02 06 – FREEZER DOOR PARTS

WRX735SDBM02 06 – FREEZER DOOR PARTS

Written by

in

WRX735SDBM02 06 – FREEZER DOOR PARTS

Products

PositionProduct
113107111SQ Whirlpool Refrigerator DOR-FIP SS
2GASKET-FIP
3WPW10293682 Whirlpool Refrigerator Freezer Bin
4W11173556 Whirlpool Refrigerator Shaft
5W11218042 Whirlpool Refrigerator Freezer Basket
6W10146439 Whirlpool Refrigerator Divider
7WPW10474716 Whirlpool Refrigerator Gear
7AWPW10474715 Whirlpool Refrigerator Gear
8AW11489994 Whirlpool Refrigerator Rail
8W11489993 Whirlpool Refrigerator Rail
9AW10348260 Whirlpool Refrigerator Bracket
9W10348259 Whirlpool Refrigerator Bracket Assembly
10AWPW10330993 Whirlpool Refrigerator Bracket
10WPW10330991 Whirlpool Refrigerator Bracket
11W10827046 Whirlpool Door Handle
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
