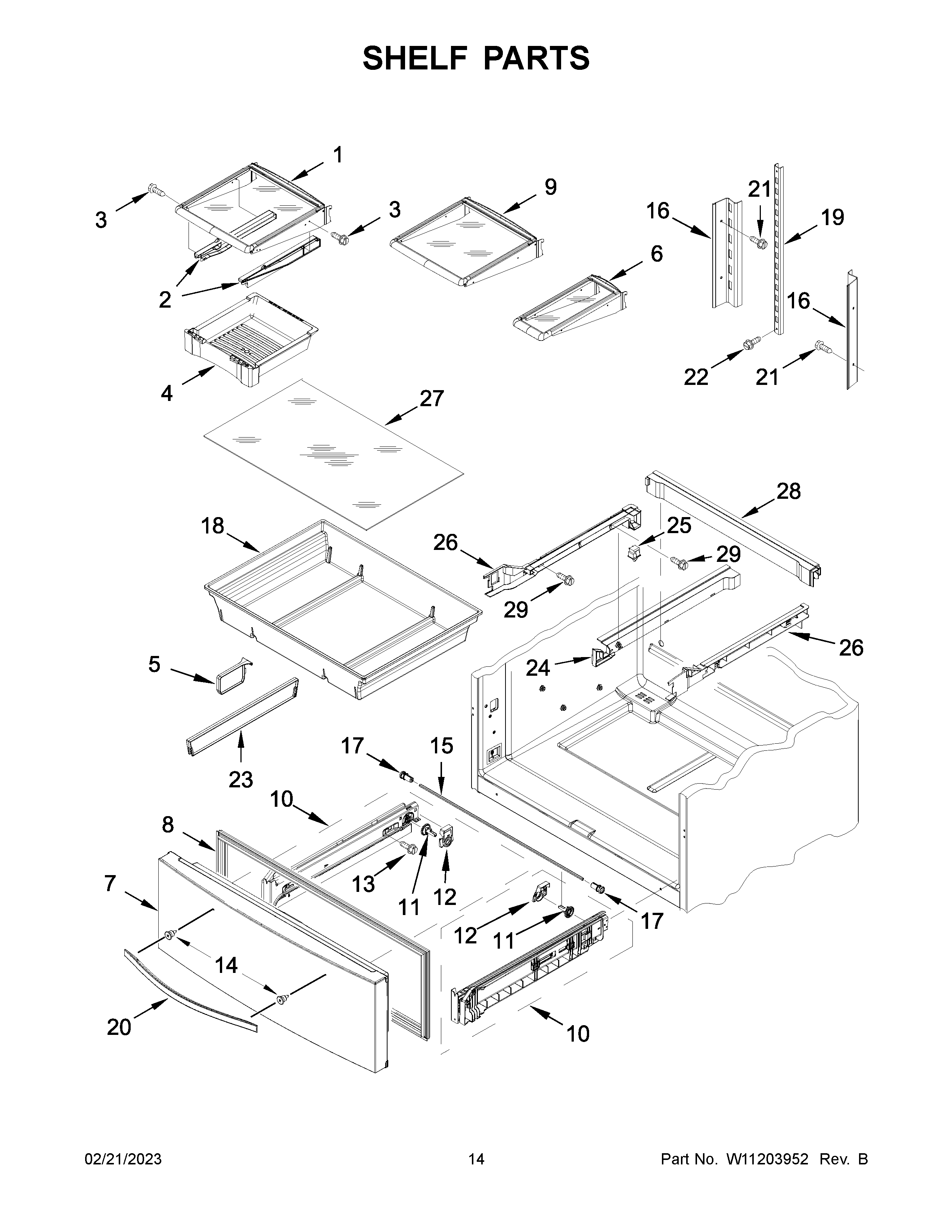

WRX735SDBM02 08 – SHELF PARTS

Products

Position	Product
1	WP12883508SP Whirlpool Refrigerator Glass Shelf
2A	WPW10194032 Whirlpool Refrigerator Glide
2	WPW10194031 Whirlpool Refrigerator Glide
3	SCREW
4	WPW10319333 Whirlpool Refrigerator Snack Pan
5	W10818645 Whirlpool Refrigerator Divider
6	W11197490 Whirlpool Refrigerator Cantilever Shelf
7	13107112SQ Whirlpool Refrigerator DOR-FIP SS
8	WPW10443326 Whirlpool Refrigerator FIP Gasket
9	W11402525 Whirlpool Glass Shelf
10	W11093713 Whirlpool Refrigerator Adapter
10A	W11093714 Whirlpool Refrigerator Adapter
11	GEAR, SPUR
12A	W10294414 Whirlpool Refrigerator Cover
12	W10284709 Whirlpool Refrigerator Cover
13	WPW10272364 Whirlpool Refrigerator Screw
14	WPW10661886 Whirlpool Refrigerator Door Handle Screw
15	W10802341 Whirlpool Refrigerator Shaft
16A	W10251965 Whirlpool Refrigerator Ladder
16	W10251968 Whirlpool Ladder
17	WPW10277361 Whirlpool Refrigerator Collar
18	W11483068 Whirlpool Refrigerator Utility Pan
19	W10273464 Whirlpool Refrigerator Ladder
20	W10827046 Whirlpool Door Handle
21	67006425 Whirlpool Refrigerator Screw
22	WP67006415 Whirlpool Refrigerator Screw
23	W11340457 Whirlpool Refrigerator Divider Assembly
24	W10311725 Whirlpool Refrigerator Cover
25	W11291138 Whirlpool Refrigerator Door Switch
26	W10311723 Whirlpool Refrigerator Rail
26A	W11715934 Whirlpool Rail
27	WPW10296571 Whirlpool Glass Shelf Assembly
28	RAIL, REAR PANTRY
29	WP98165 Whirlpool Screw
