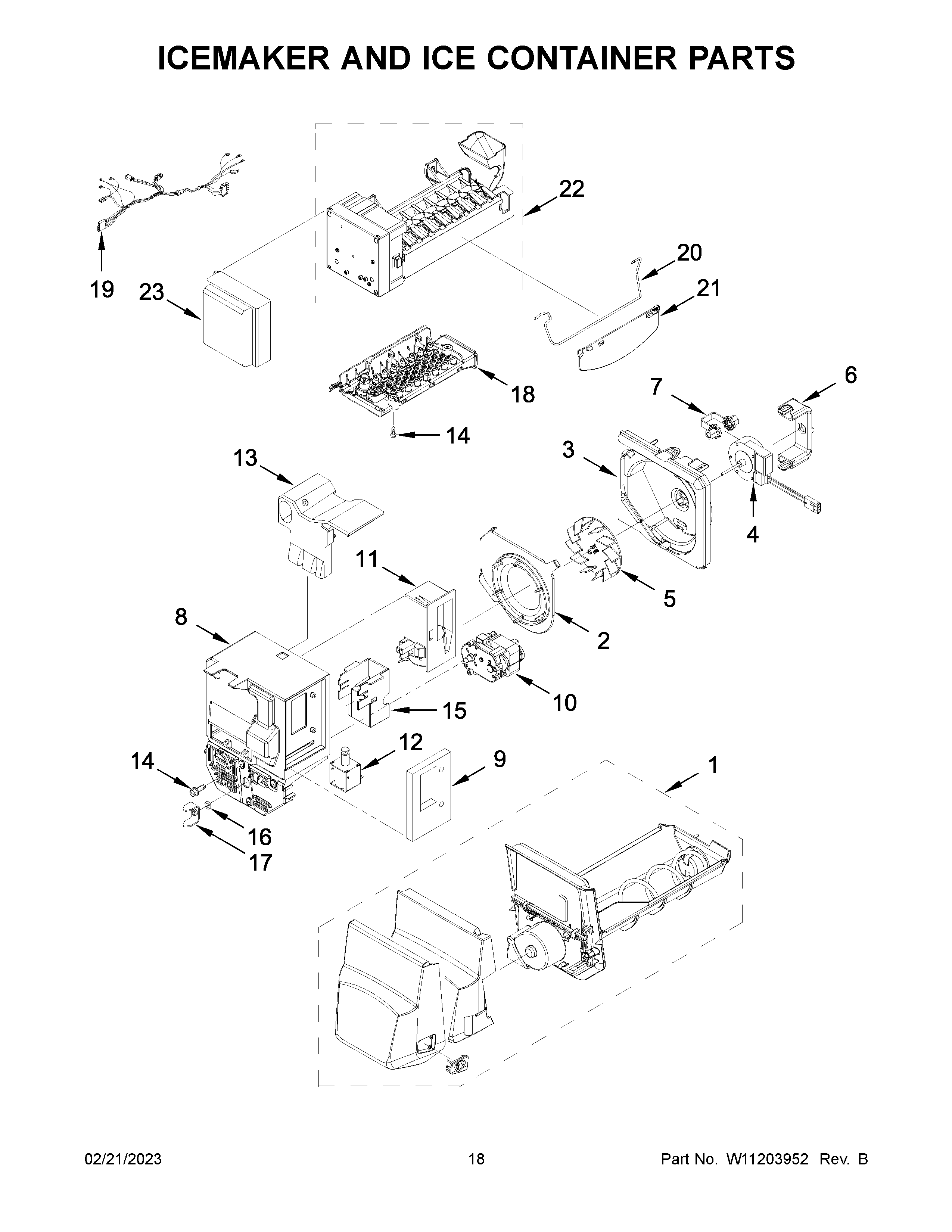

WRX735SDBM02 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	ICE-CONTNR
2	W10121282 Whirlpool Refrigerator Insert
3	W10309863 Whirlpool Refrigerator Scroll Fan
4	MOTOR-EVAP
5	WPW10123444K Whirlpool Refrigerator Wheel
6	W10165970 Whirlpool Refrigerator Clip
7	GROMMET, FAN MOTOR
8	WPW10309864 Whirlpool Refrigerator Divider
9	WP67006341 Whirlpool Refrigerator Gasket
10	WPW10317991 Whirlpool Refrigerator Motor
11	WPW10196393 Whirlpool Control Damper
12	SOLENOID
13	W11676504 Whirlpool Insert Assembly
14	67006425 Whirlpool Refrigerator Screw
15	W10346971 Whirlpool Refrigerator Bracket
16	W11378860 Whirlpool Refrigerator Spacer
17	WP63052-2 Whirlpool Refrigerator Impeller
18	WPW10312691 Whirlpool Refrigerator Air Baffle
19	W11029433 Whirlpool Refrigerator Wire Harness
20	WPW10175514 Whirlpool Refrigerator Shut-Off Arm
21	WPW10351019 Whirlpool Refrigerator Extension
22	W10882923 Whirlpool Refrigerator Ice Maker Assembly
23	W10884722 Whirlpool Refrigerator Front Cover
