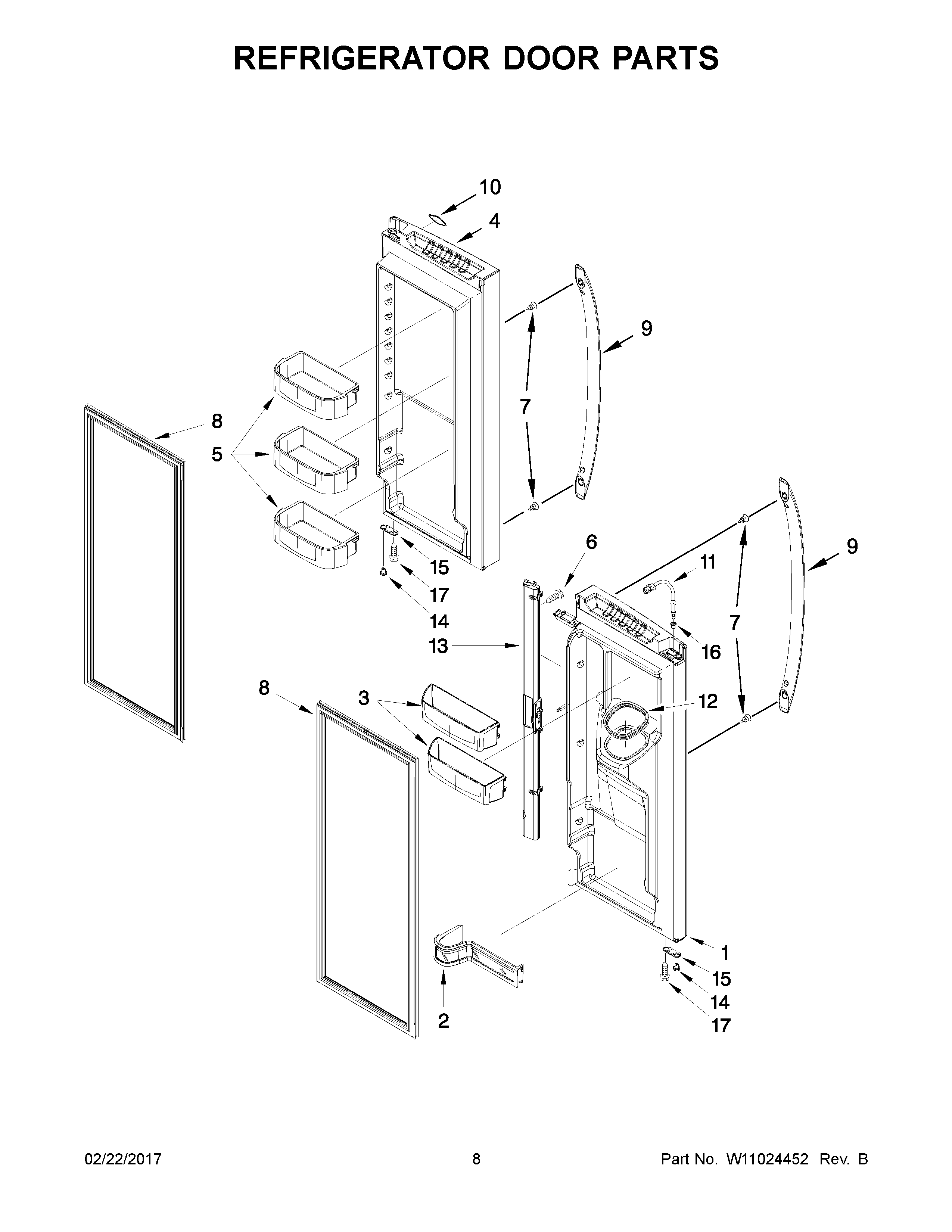

WRX735SDBM03 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107324SQ Whirlpool Refrigerator DOR-FIP SS
2	WPW10323808 Whirlpool Refrigerator Cantilever Bin
3	WPW10212139 Whirlpool Refrigerator Door Shelf Bin
4	13107319SQ Whirlpool Refrigerator DOR-FIP SS
5	WPW10224961 Whirlpool Refrigerator Door Shelf Bin
6	67006425 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8	W10830274 Whirlpool Door Gasket
9	W11459378 Whirlpool Refrigerator Handle
10	WPW10393265 Whirlpool Refrigerator Nameplate
11	WPW10511930 Whirlpool Refrigerator Water Tube
12	WPW10287601 Whirlpool Seal
13	WPW10311757 Whirlpool Door Guide
14	WP12028505AP Whirlpool Closing Cam
15	W11703060 Whirlpool Door Stop
16	12996601 Whirlpool Refrigerator Bushing Clip
17	WP98165 Whirlpool Screw
