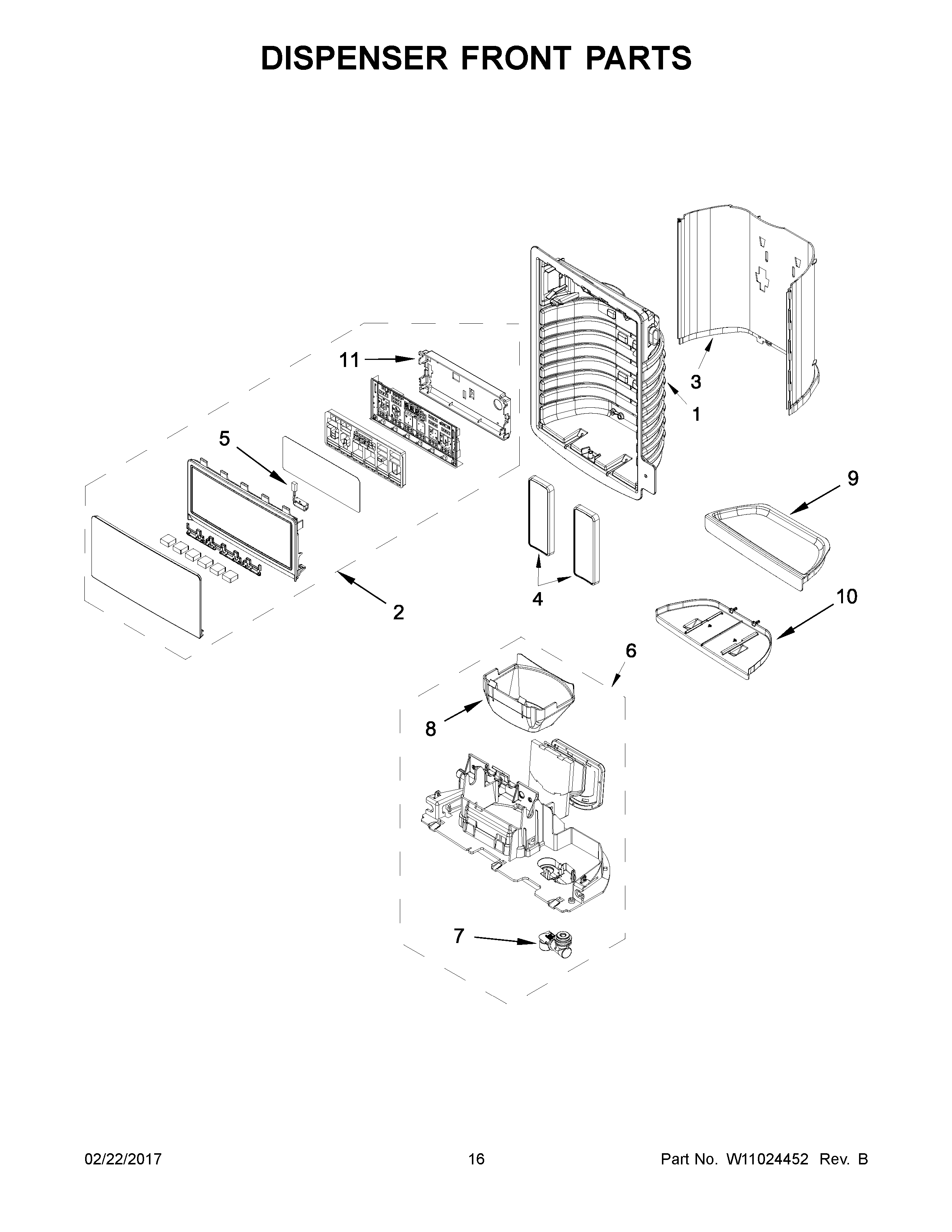

WRX735SDBM03 09 – DISPENSER FRONT PARTS

WRX735SDBM03 09 – DISPENSER FRONT PARTS

Written by

in

WRX735SDBM03 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10521642-includeCORE Whirlpool WPW10521642 Refrigerator Electronic Control Board + Core
3W11045978 Whirlpool Refrigerator Shield
4WPW10353848 Whirlpool Refrigerator Pad
5W11290115 Whirlpool Refrigerator Light
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8WPW10435760 Whirlpool Refrigerator Ice Guide
9W11192301 Whirlpool Refrigerator Drip Tray
10WPW10267863 Whirlpool Refrigerator Drip Tray
11W10254277 Whirlpool Cover Assembly
