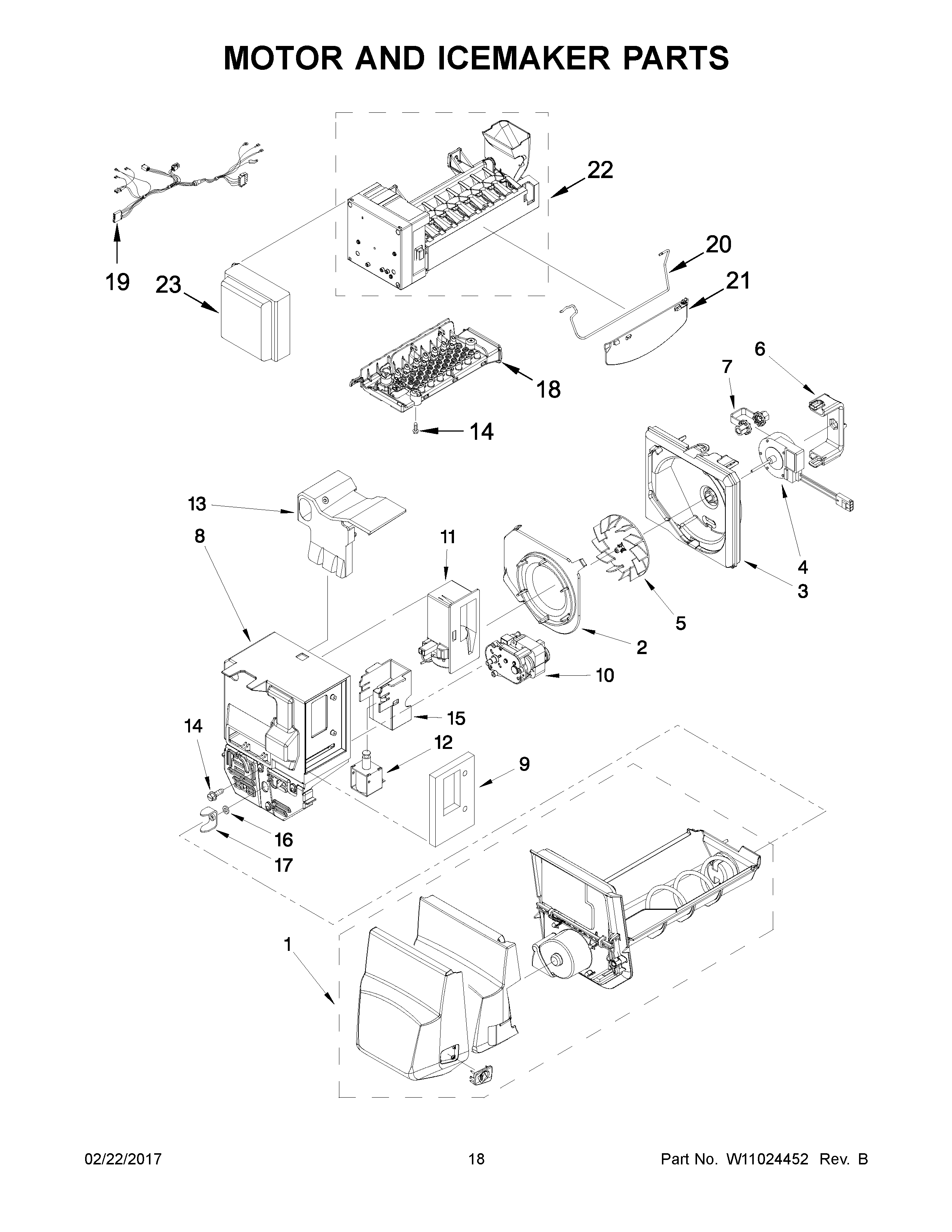

WRX735SDBM03 10 – MOTOR AND ICEMAKER PARTS

WRX735SDBM03 10 – MOTOR AND ICEMAKER PARTS

Written by

in

WRX735SDBM03 10 – MOTOR AND ICEMAKER PARTS

Products

PositionProduct
1ICE-CONTNR
2W10121282 Whirlpool Refrigerator Insert
3W10309863 Whirlpool Refrigerator Scroll Fan
4MOTOR-EVAP
5WPW10123444K Whirlpool Refrigerator Wheel
6W10165970 Whirlpool Refrigerator Clip
7GROMMET, FAN MOTOR
8WPW10309864 Whirlpool Refrigerator Divider
9WP67006341 Whirlpool Refrigerator Gasket
10W11671282 Whirlpool Refrigerator Ice Auger Motor
11WPW10196393 Whirlpool Control Damper
12SOLENOID
13W11676504 Whirlpool Insert Assembly
1467006425 Whirlpool Refrigerator Screw
15W10346971 Whirlpool Refrigerator Bracket
16W11378860 Whirlpool Refrigerator Spacer
17WP63052-2 Whirlpool Refrigerator Impeller
18WPW10312691 Whirlpool Refrigerator Air Baffle
19W10884720 Whirlpool Wire Harness
20WPW10175514 Whirlpool Refrigerator Shut-Off Arm
21WPW10351019 Whirlpool Refrigerator Extension
22WPW10300024 Whirlpool Ice Maker
23W10884722 Whirlpool Refrigerator Front Cover
