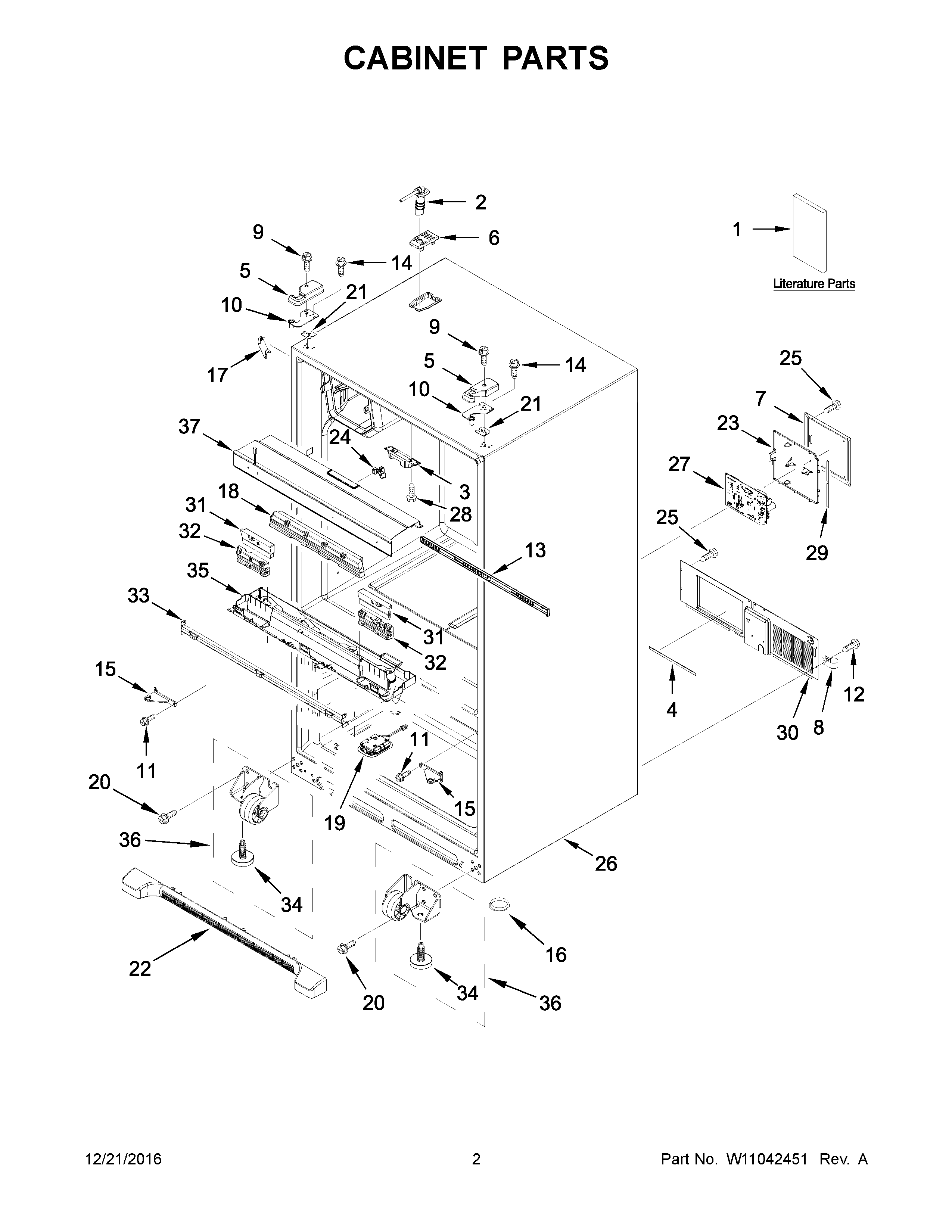

WRX735SDBM04 02 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1A	USE & CARE GUIDE
1B	ENERGY GUIDE
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10337648 Whirlpool Refrigerator Cover
5A	WPW10191117 Whirlpool Refrigerator Cover
6	W10191141 Whirlpool Refrigerator Tube Cover
7	12961602 Whirlpool Refrigerator Wire Cover
8	W11456069 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592375 Whirlpool Door Hinge
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WPW10109200 Whirlpool Screw
12	67006425 Whirlpool Refrigerator Screw
13	W10367522 Whirlpool Refrigerator Slide
14	WP489349 Whirlpool Refrigerator Screw
15A	HINGE-DOOR
15	W10917991 Whirlpool Refrigerator Door Hinge
16	A3076901 Whirlpool Refrigerator Plug
17	WP12587703AP Whirlpool Refrigerator Filler
18	W10311721 Whirlpool Refrigerator Insulation
19	MODULE
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	W10296541 Whirlpool Refrigerator Wire Cover
24	W10827867 Whirlpool Refrigerator Knob
25	W11686675 Whirlpool Screw
26	CABINET (NOT A SERVICEABLE PART)
27	W11043763 Whirlpool Refrigerator Electronic Control Board
28	W10854958 Whirlpool Refrigerator Screw
29	W10914798 Whirlpool Gasket
30	WPW10270394 Whirlpool Refrigerator Back Cover
31	WEDGE, SPACER (LEFT HAND & RIGHT HAND)
32	W10316401 Whirlpool Refrigerator Insulation
33	W10492234 Whirlpool Refrigerator Brace
34	WPW10141622 Whirlpool Leveler
35	W10877249 Whirlpool Refrigerator Housing
36A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
36	WPW10515763 Whirlpool Refrigerator Cabinet Roller
37	W11043010 Whirlpool Refrigerator Mullion Rail
