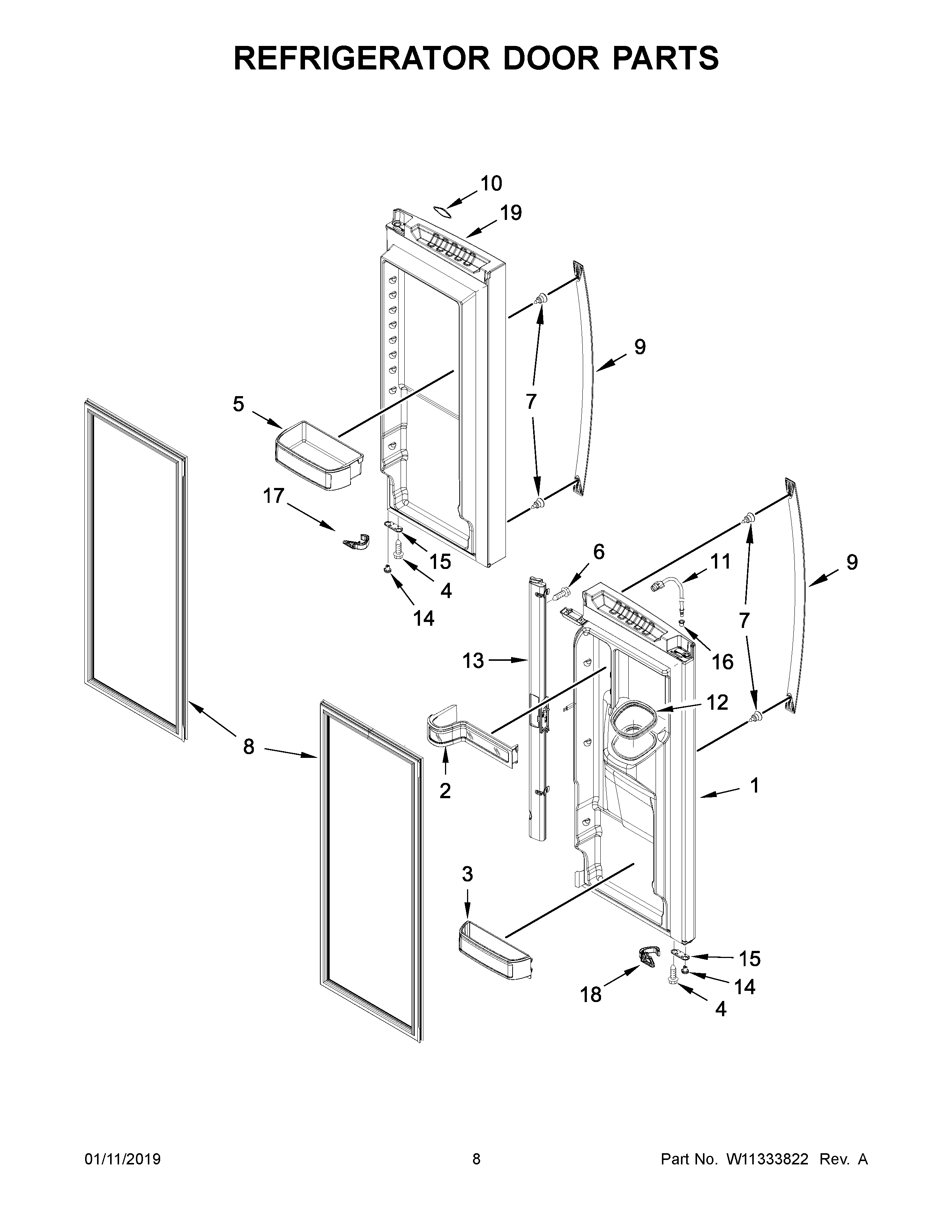

WRX735SDHB01 05 – REFRIGERATOR DOOR PARTS

WRX735SDHB01 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX735SDHB01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107323WQ Whirlpool Refrigerator DOR-FIP White
1BW11104476 Whirlpool Refrigerator Door Assembly
1A13107323BQ Whirlpool Refrigerator Black Foam In Place Doorack
2BW11104465 Whirlpool Refrigerator Door Assembly
2A13107319BQ Whirlpool Refrigerator Foam In Place Door
213107319WQ Whirlpool Refrigerator DOR-FIP White
3W11379148 Whirlpool Refrigerator Cantilever Bin
4WP98165 Whirlpool Screw
5W11706640 Whirlpool Bin Containment Lever
667006425 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8W10830276 Whirlpool Refrigerator Door FIP Gasket
8AW10830277 Whirlpool Refrigerator FIP Gasket
9AW11334744 Whirlpool Refrigerator Handle
9W11334746 Whirlpool Refrigerator Handle
9BW11045128 Whirlpool Refrigerator Handle
10W11223753 Whirlpool Refrigerator Nameplate
11WPW10511930 Whirlpool Refrigerator Water Tube
12WPW10287601 Whirlpool Seal
13MULLION, DOOR (WHITE)
13AW10311758 Whirlpool Refrigerator Mullion Rail
14AWP67003639 Whirlpool Refrigerator Closer
14WP67003638 Whirlpool Closing Cam
1512968202W Whirlpool Refrigerator Door Stop
15AW11708403 Whirlpool Door Stop
1612996601 Whirlpool Refrigerator Bushing Clip
17AW10918171 Whirlpool Refrigerator Closer
17W10918120 Whirlpool Refrigerator Closer
18W10918118 Whirlpool Refrigerator Door Closer
18AW10918170 Whirlpool Refrigerator Closer
19W10355269 Whirlpool Cantilever Bin
