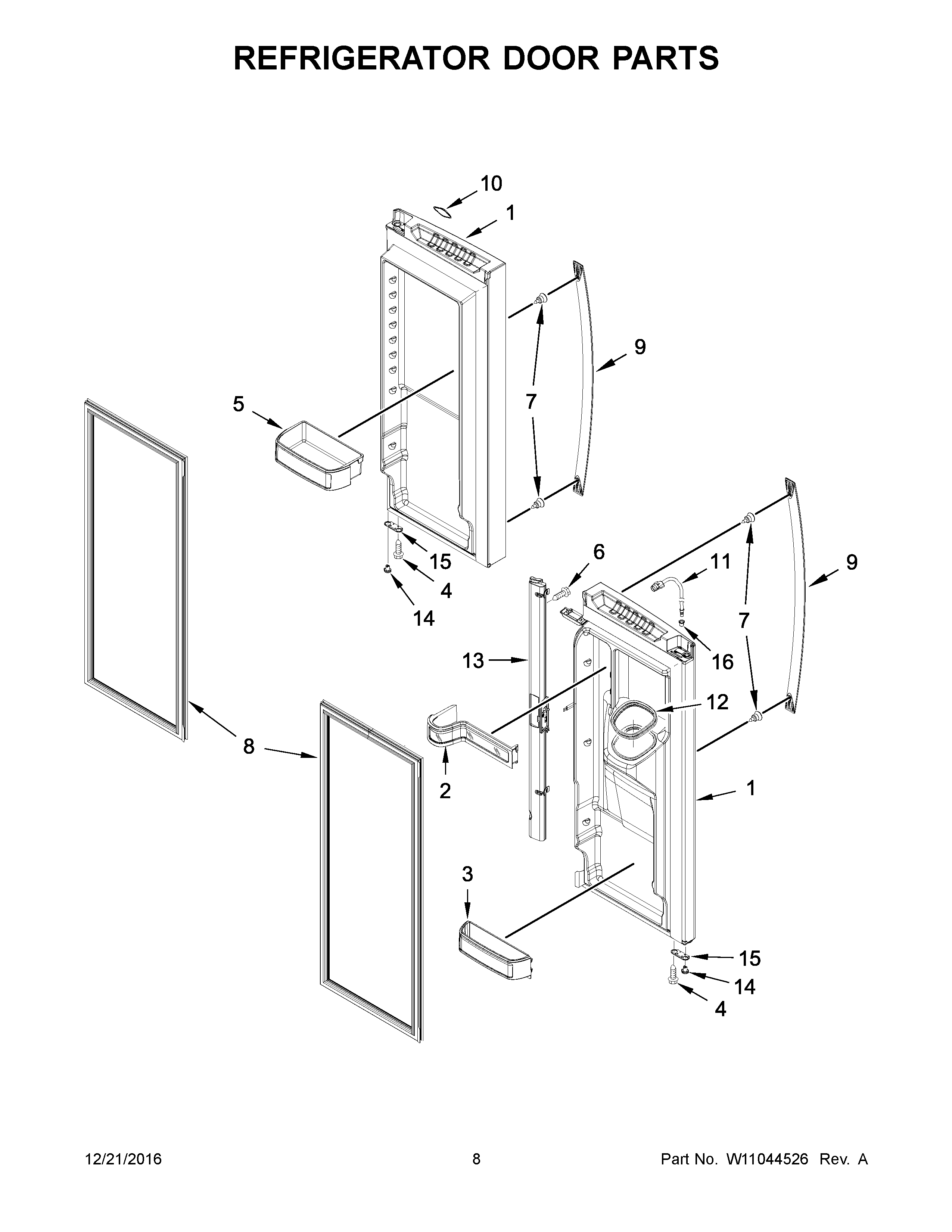

WRX735SDHV00 05 – REFRIGERATOR DOOR PARTS

WRX735SDHV00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRX735SDHV00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1D13107319WQ Whirlpool Refrigerator DOR-FIP White
1FW11104465 Whirlpool Refrigerator Door Assembly
1GW11104466 Whirlpool Refrigerator Door Assembly
1BW11104476 Whirlpool Refrigerator Door Assembly
1EW10865003 Whirlpool Refrigerator Door Assembly
113107323WQ Whirlpool Refrigerator DOR-FIP White
1CW11104477 Whirlpool Refrigerator Door Assembly
1AW10865000 Whirlpool Refrigerator Door Assembly
2W10355269 Whirlpool Cantilever Bin
3W11379148 Whirlpool Refrigerator Cantilever Bin
4WP98165 Whirlpool Screw
5W11706640 Whirlpool Bin Containment Lever
667006425 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8W10830276 Whirlpool Refrigerator Door FIP Gasket
8AW10830277 Whirlpool Refrigerator FIP Gasket
8BW10830274 Whirlpool Door Gasket
9AW11045127 Whirlpool Refrigerator Handle
9W11045126 Whirlpool Refrigerator Handle
9BW11045128 Whirlpool Refrigerator Handle
9CW11045129 Whirlpool Door Handle
10W11223753 Whirlpool Refrigerator Nameplate
11WPW10511930 Whirlpool Refrigerator Water Tube
12WPW10287601 Whirlpool Seal
13MULLION, DOOR (WHITE)
13AW10311758 Whirlpool Refrigerator Mullion Rail
13BWPW10311757 Whirlpool Door Guide
14BWP12028505AP Whirlpool Closing Cam
14WP67003638 Whirlpool Closing Cam
14AWP67003639 Whirlpool Refrigerator Closer
15BW11703060 Whirlpool Door Stop
15AW11708403 Whirlpool Door Stop
1512968202W Whirlpool Refrigerator Door Stop
1612996601 Whirlpool Refrigerator Bushing Clip
