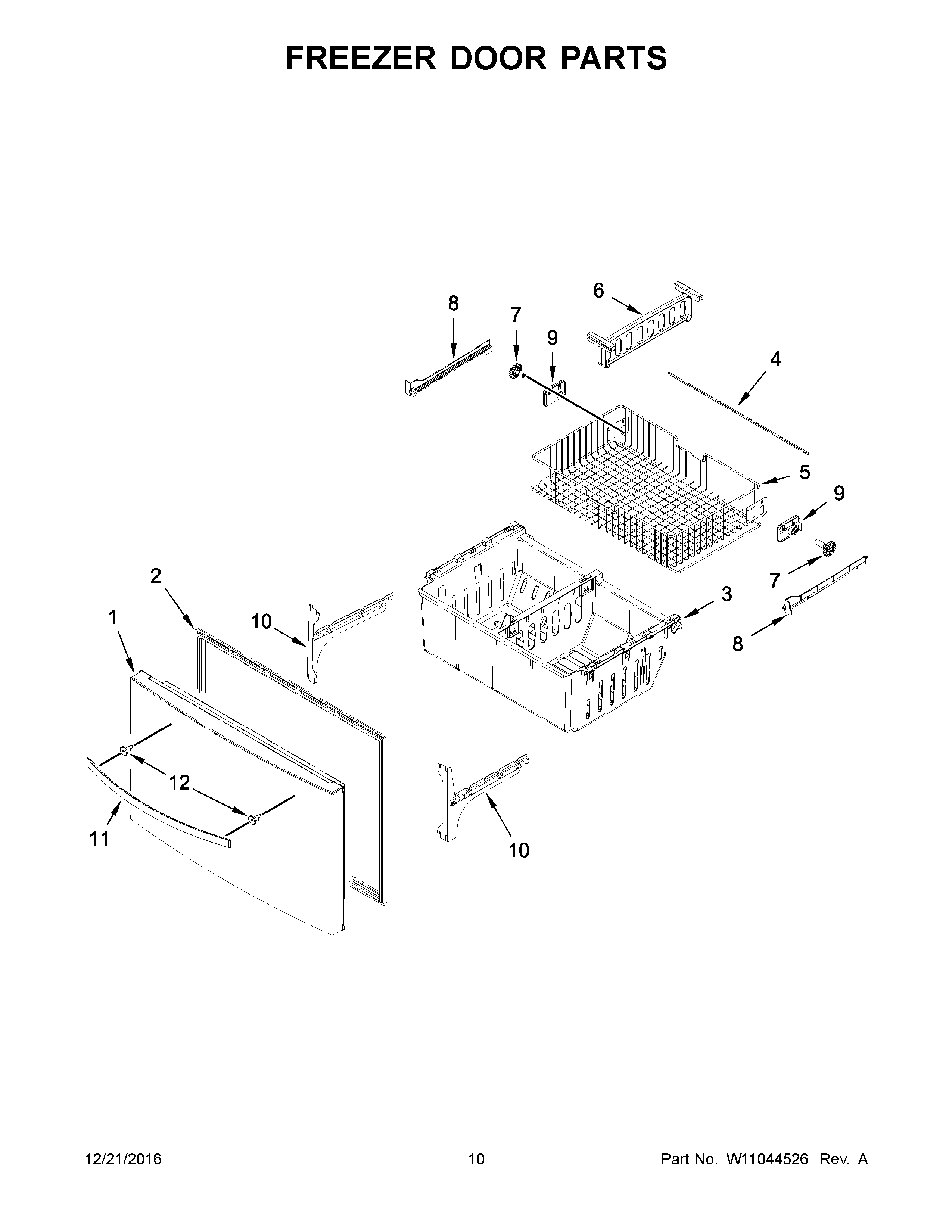

WRX735SDHV00 06 – FREEZER DOOR PARTS

WRX735SDHV00 06 – FREEZER DOOR PARTS

Written by

in

WRX735SDHV00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1CW11104491 Whirlpool Refrigerator Door Assembly
1W11104490 Whirlpool Refrigerator Door Assembly
1BW11104489 Whirlpool Refrigerator Door Assembly
1AW11104488 Whirlpool Refrigerator Door Assembly
2BGASKET-FIP
2WPW10443321 Whirlpool Door Gasket
2AWPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
3WPW10293682 Whirlpool Refrigerator Freezer Bin
4W11173556 Whirlpool Refrigerator Shaft
5W11218042 Whirlpool Refrigerator Freezer Basket
6W10146439 Whirlpool Refrigerator Divider
7AWPW10474715 Whirlpool Refrigerator Gear
7WPW10474716 Whirlpool Refrigerator Gear
8W11489993 Whirlpool Refrigerator Rail
8AW11489994 Whirlpool Refrigerator Rail
9AW10348260 Whirlpool Refrigerator Bracket
9W10348259 Whirlpool Refrigerator Bracket Assembly
10WPW10330991 Whirlpool Refrigerator Bracket
10AWPW10330993 Whirlpool Refrigerator Bracket
11W11045121 Whirlpool Refrigerator Handle
11AW11045122 Whirlpool Refrigerator Handle
11BW11043768 Whirlpool Refrigerator Handle
11CW11045125 Whirlpool Door Handle
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
