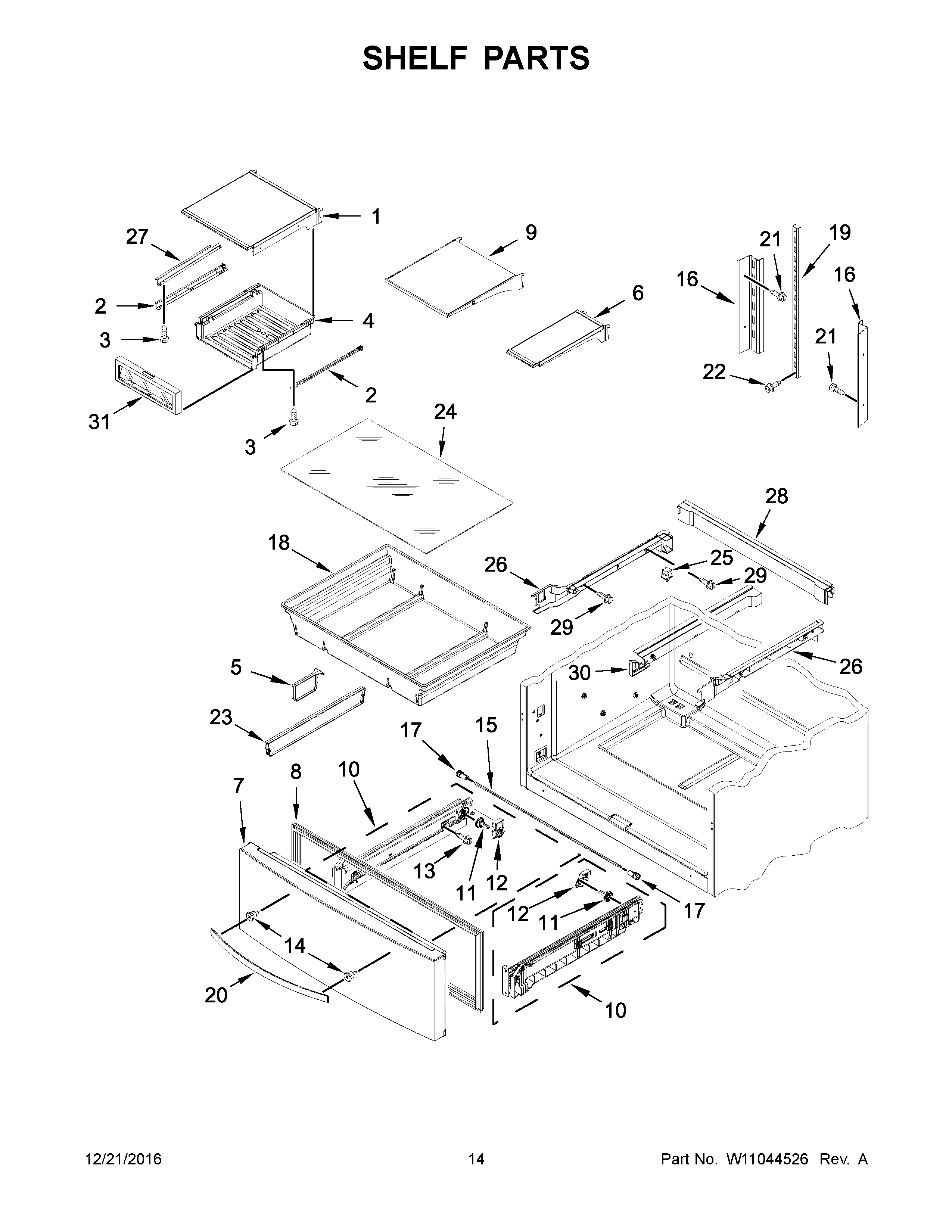

WRX735SDHV00 08 – SHELF PARTS

WRX735SDHV00 08 – SHELF PARTS

Written by

in

WRX735SDHV00 08 – SHELF PARTS

Products

Position	Product
1	W11243759 Whirlpool Glass Shelf
2	WPW10346891 Whirlpool Refrigerator Slide
2A	WPW10346890 Whirlpool Refrigerator Slide
3	WP8281136 Whirlpool Screw
4	PAN, DELI
5	W10818645 Whirlpool Refrigerator Divider
6	W11241612 Whirlpool Refrigerator Cantilever Shelf
7	W11104494 Whirlpool Refrigerator Door Assembly
7B	W11104493 Whirlpool Refrigerator Door Assembly
7C	W11104495 Whirlpool Refrigerator Door Assembly
7A	W11104492 Whirlpool Refrigerator Door Assembly
8	W10443325 Whirlpool Refrigerator FIP Gasket
8B	WPW10443326 Whirlpool Refrigerator FIP Gasket
8A	W11625002 Whirlpool Refrigerator FIP Gasket
9	W11213107 Whirlpool Refrigerator Glass Shelf
10A	W11093714 Whirlpool Refrigerator Adapter
10	W11093713 Whirlpool Refrigerator Adapter
11	GEAR, SPUR
12A	W10294414 Whirlpool Refrigerator Cover
12	W10284709 Whirlpool Refrigerator Cover
13	WPW10272364 Whirlpool Refrigerator Screw
14	WPW10661886 Whirlpool Refrigerator Door Handle Screw
15	W10802341 Whirlpool Refrigerator Shaft
16A	W10251965 Whirlpool Refrigerator Ladder
16	W10251968 Whirlpool Ladder
17	WPW10277361 Whirlpool Refrigerator Collar
18	W11483068 Whirlpool Refrigerator Utility Pan
19	W10273464 Whirlpool Refrigerator Ladder
20B	W11043768 Whirlpool Refrigerator Handle
20C	W11045125 Whirlpool Door Handle
20	W11045121 Whirlpool Refrigerator Handle
20A	W11045122 Whirlpool Refrigerator Handle
21	67006425 Whirlpool Refrigerator Screw
22	WP67006415 Whirlpool Refrigerator Screw
23	W11340457 Whirlpool Refrigerator Divider Assembly
24	WPW10296571 Whirlpool Glass Shelf Assembly
25	W11291138 Whirlpool Refrigerator Door Switch
26	W10311723 Whirlpool Refrigerator Rail
26A	W11715934 Whirlpool Rail
27	W11226546 Whirlpool Refrigerator Rail
28	RAIL, REAR PANTRY
29	WP98165 Whirlpool Screw
30	W10311725 Whirlpool Refrigerator Cover
31	WPW10396909 Whirlpool Refrigerator Front Pan
